Countershaft Disassembly and Reassembly: Disassembly: Procedure

WARNING: This page is about a different variant/trim than selected.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

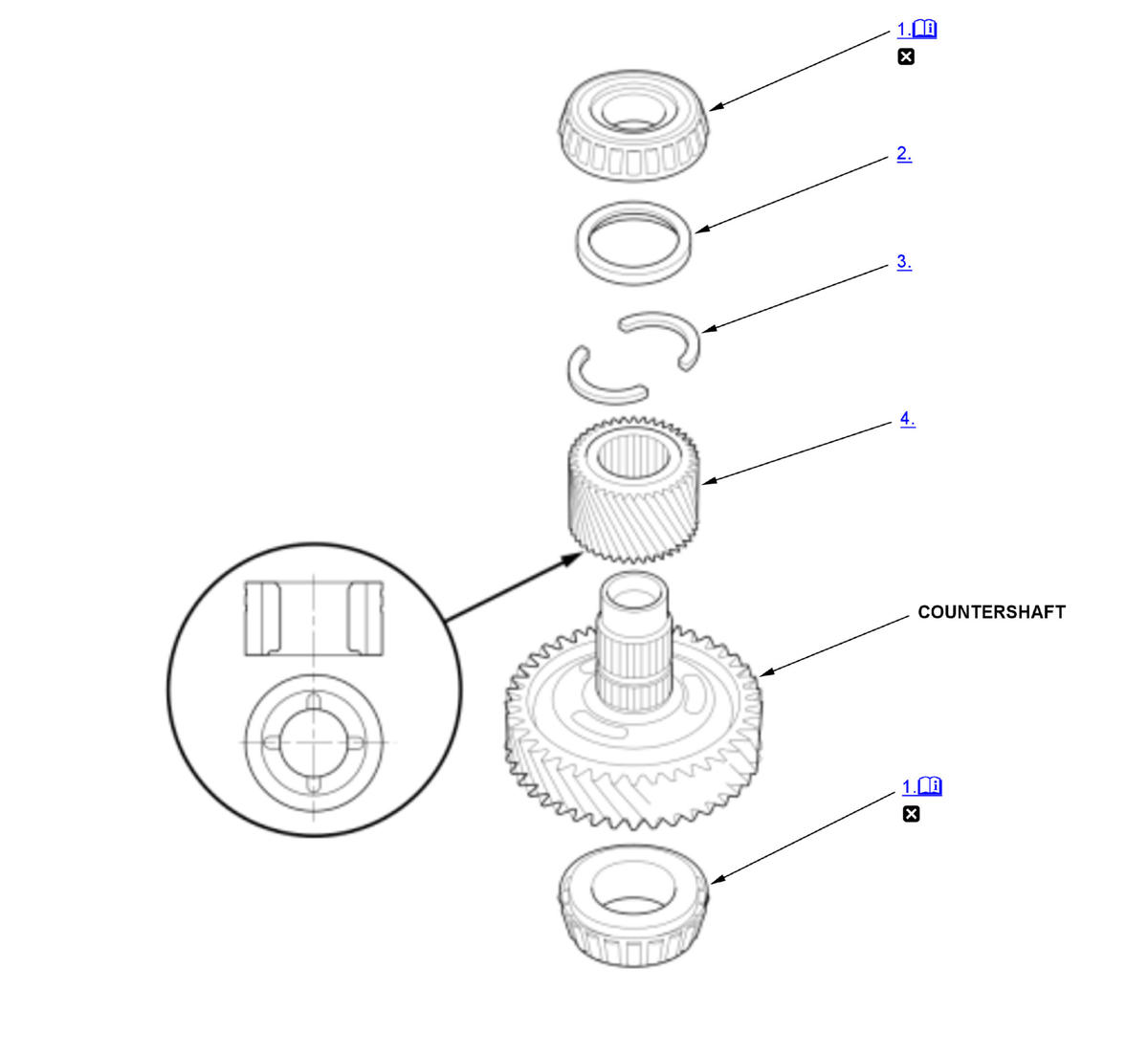

Fig 1: Exploded View Of Countershaft Disassembly Components
GHH374819Courtesy of HONDA, U.S.A., INC.
Replace
  1. Countershaft Bearing - Remove
    Flywheel Housing Side
    GHH374820GHH374821Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

    Transmission Housing Side

    GHH374820GHH374821Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

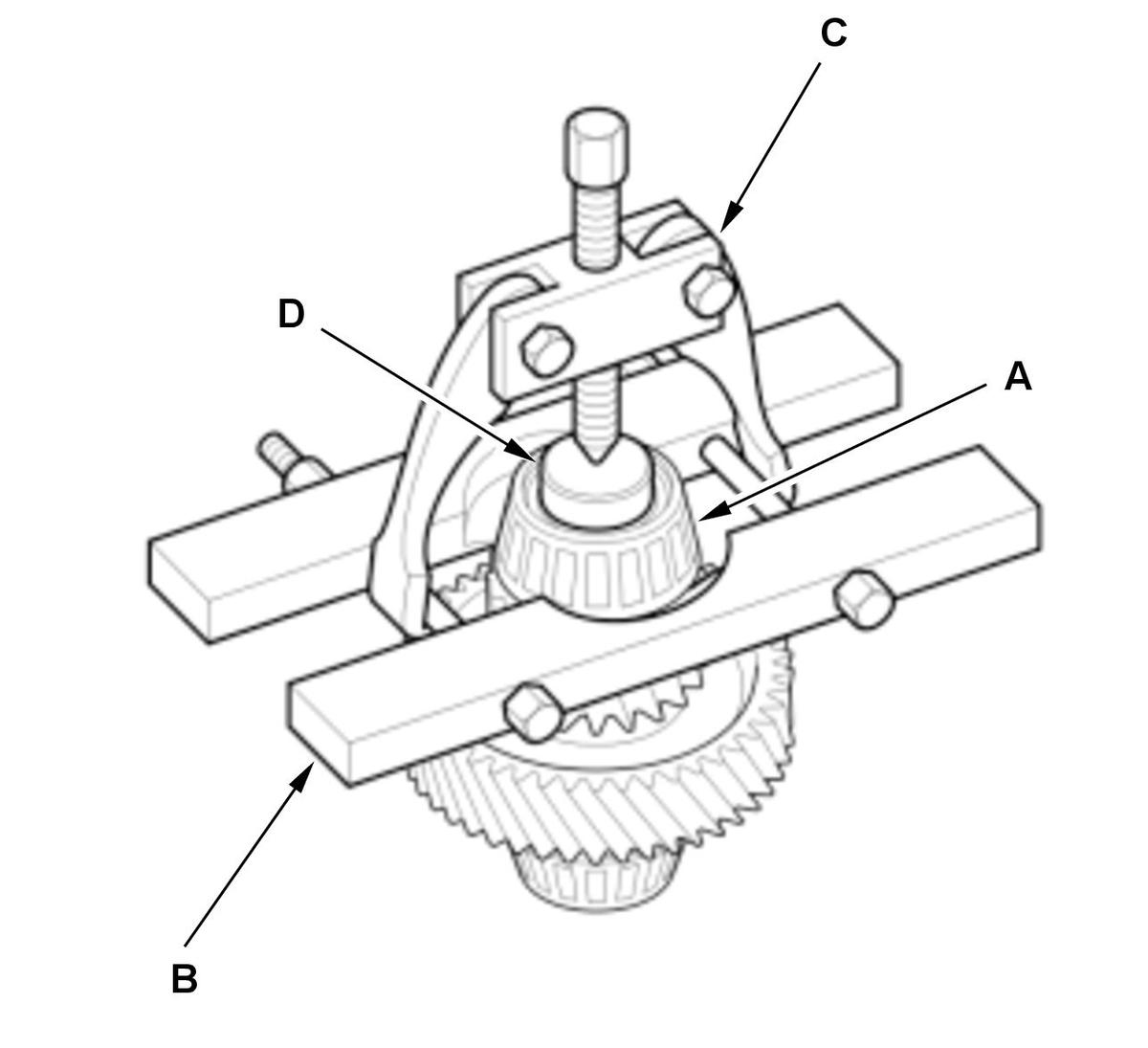

    		 1. Remove the countershaft tapered roller bearings (A) using the commercially available bearing separator (B), a commercially available bearing puller (C), and a commercially available spacer (D).
  2. Cotter Retainer - Remove
  3. Cotter - Remove
  4. Final Drive Gear - Remove
