Electrical Compass Unit Connector for Inputs and Outputs
WARNING: This page is about a different variant/trim than selected.

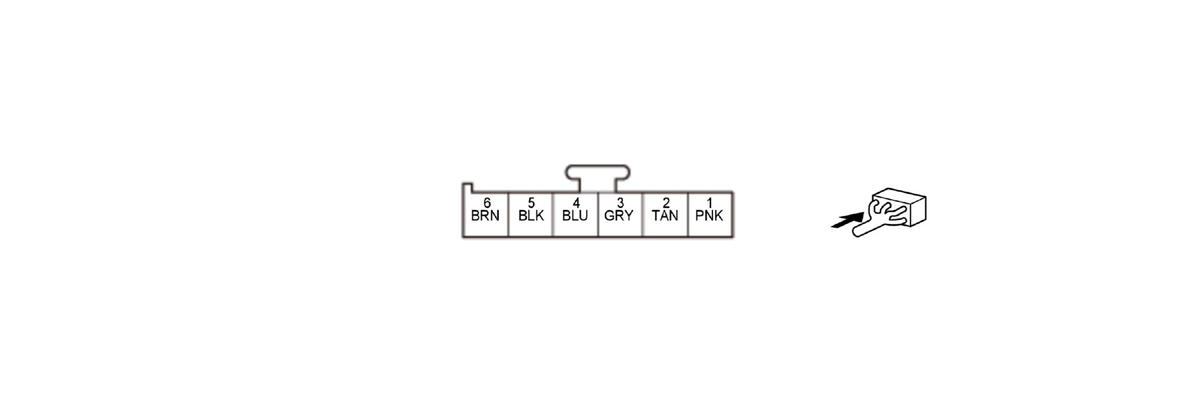

Electrical Compass Unit 6P Connector (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| 1 |
COMPASS_4 |
Communication signal |
| 2 |
COMPASS_3 |
Communication signal |
| 3 |
COMPASS_2 |
Communication signal |
| 4 |
COMPASS_1 |
Communication signal |
| 5 |
GND |
Electrical compass unit ground |
| 6 |
IG1_METER |
IG1 power source |
