Acoustic Vehicle Alerting Control Unit Connector for Inputs and Outputs

WARNING: This page is about a different variant/trim than selected.

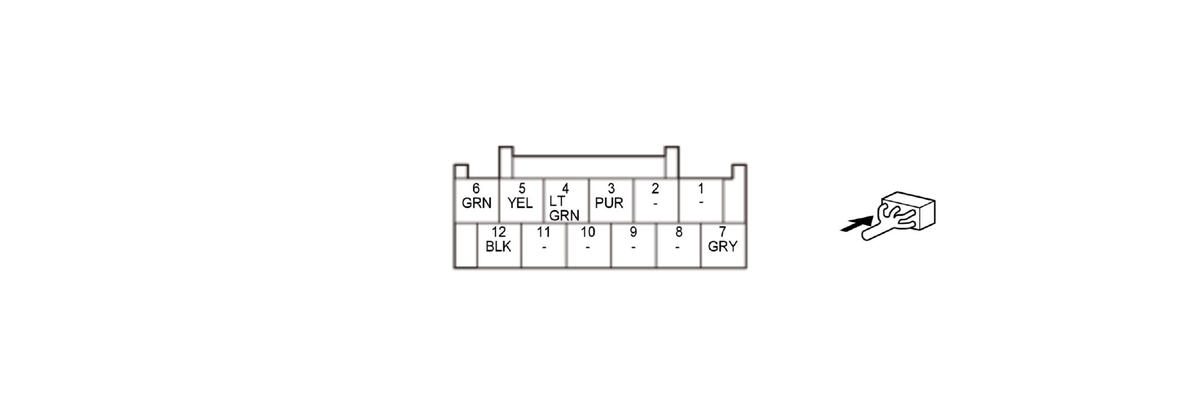

Acoustic Vehicle Alerting Control Unit 12P Connector (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	---	Not used	---
2	---	Not used	---
3	AUDIBLE SPKR+	Outputs acoustic vehicle alerting speaker signal	---
4	AUDIBLE SPKR-	Outputs acoustic vehicle alerting speaker signal	---
5	F-CAN B_H	Communication line	---
6	F-CAN B_L	Communication line	---
7	IG1_VSA/ABS	IG1 power source	With vehicle in ON or START mode: about battery voltage
8	---	Not used	---
9	---	Not used	---
10	---	Not used	---
11	---	Not used	---
12	GND	Acoustic vehicle alerting control unit ground	Less than 0.2 V at all times
