Section 4 (Gauges - Testing & Troubleshooting (Hybrid))
>>
Circuit Diagram
>>

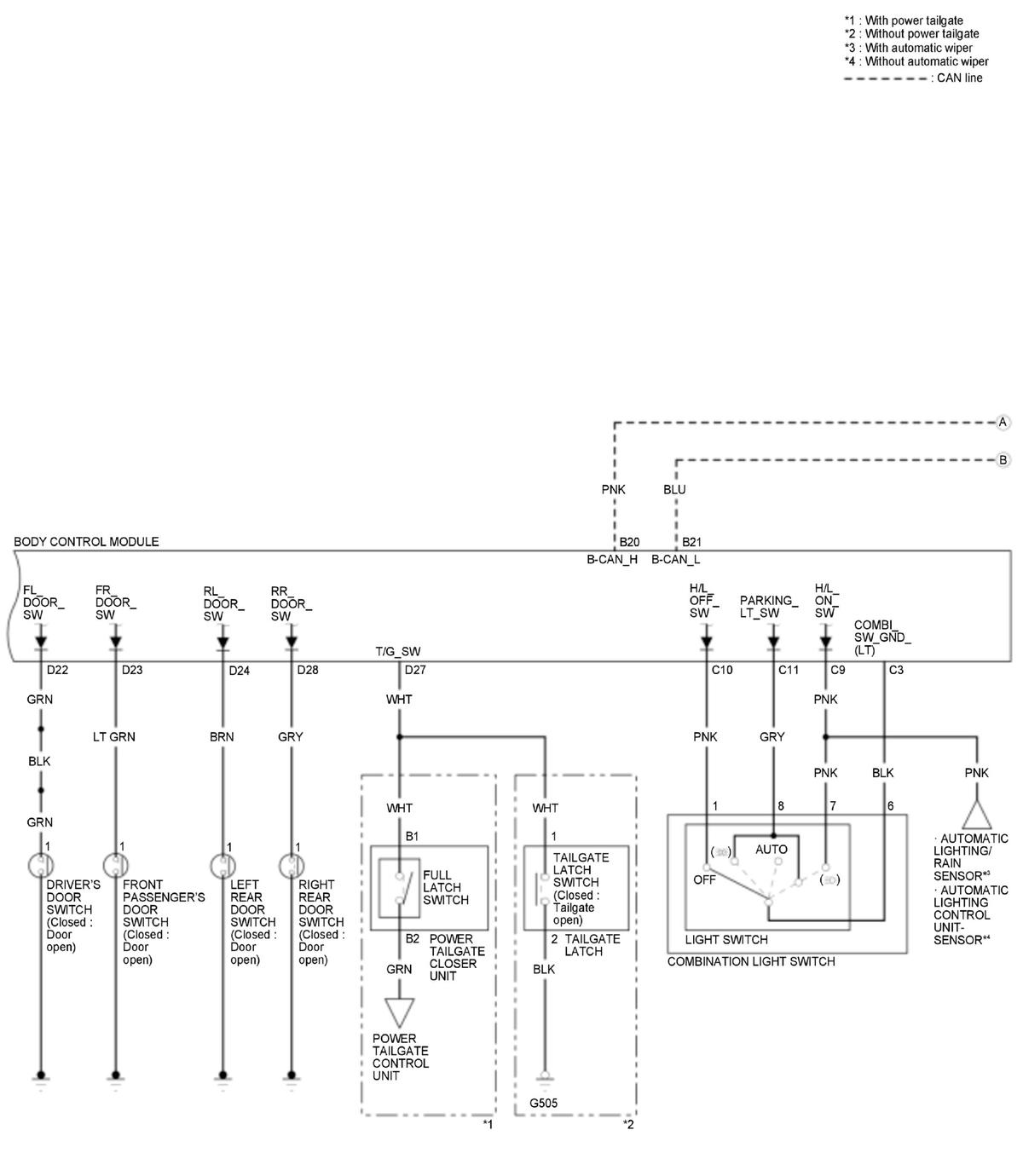

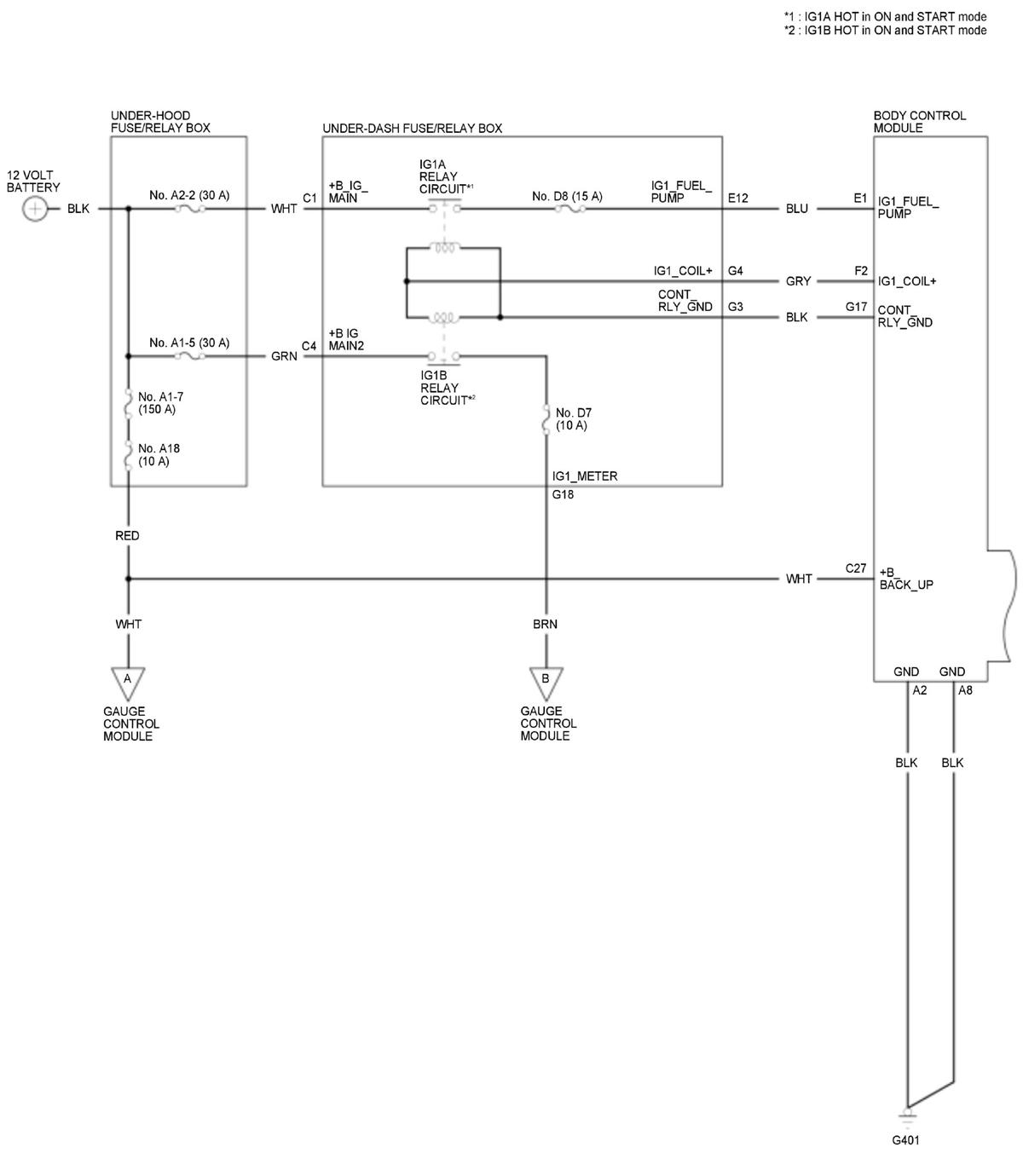

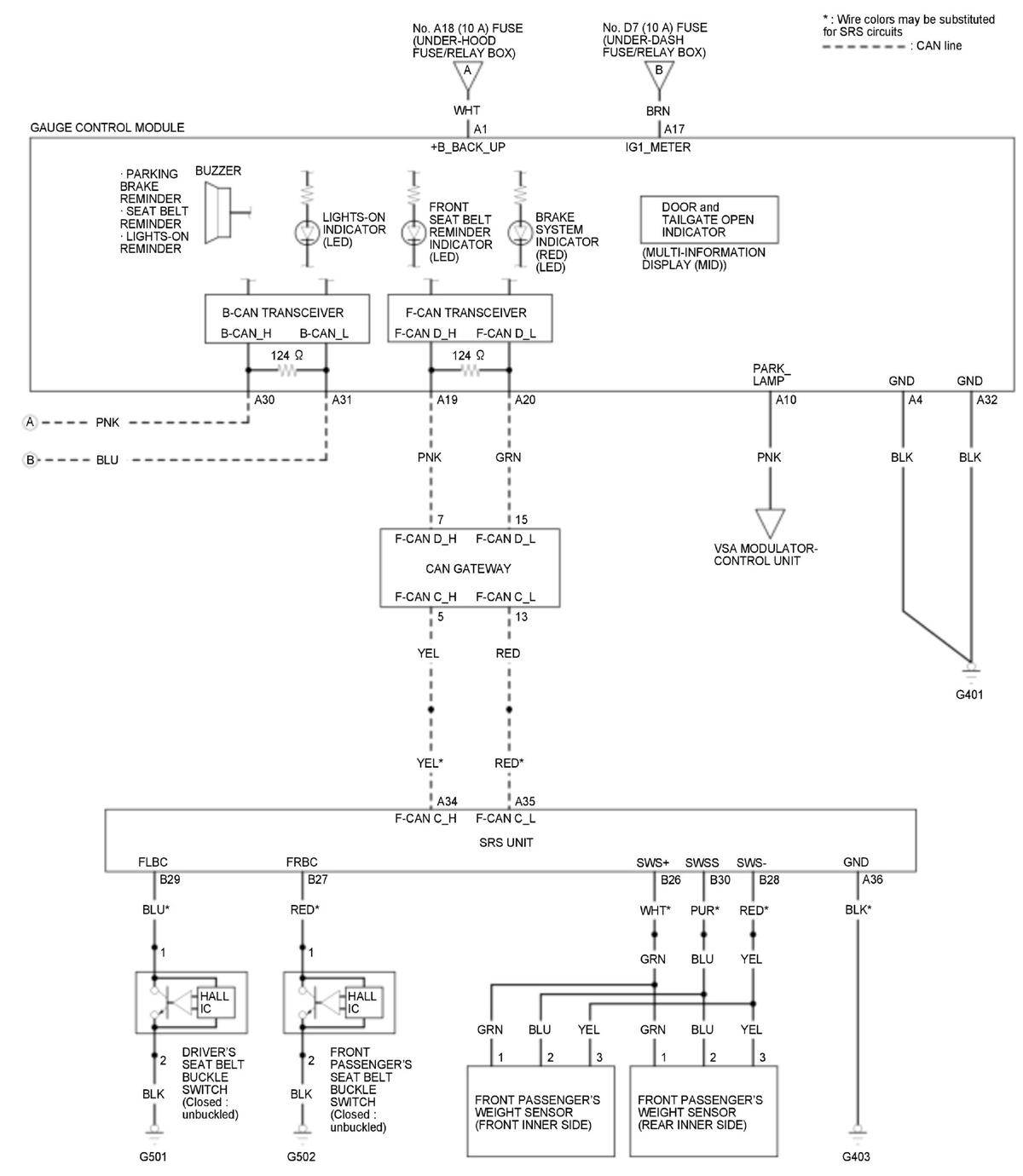

Reminder Systems Circuit Diagram
Reminder Systems Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
