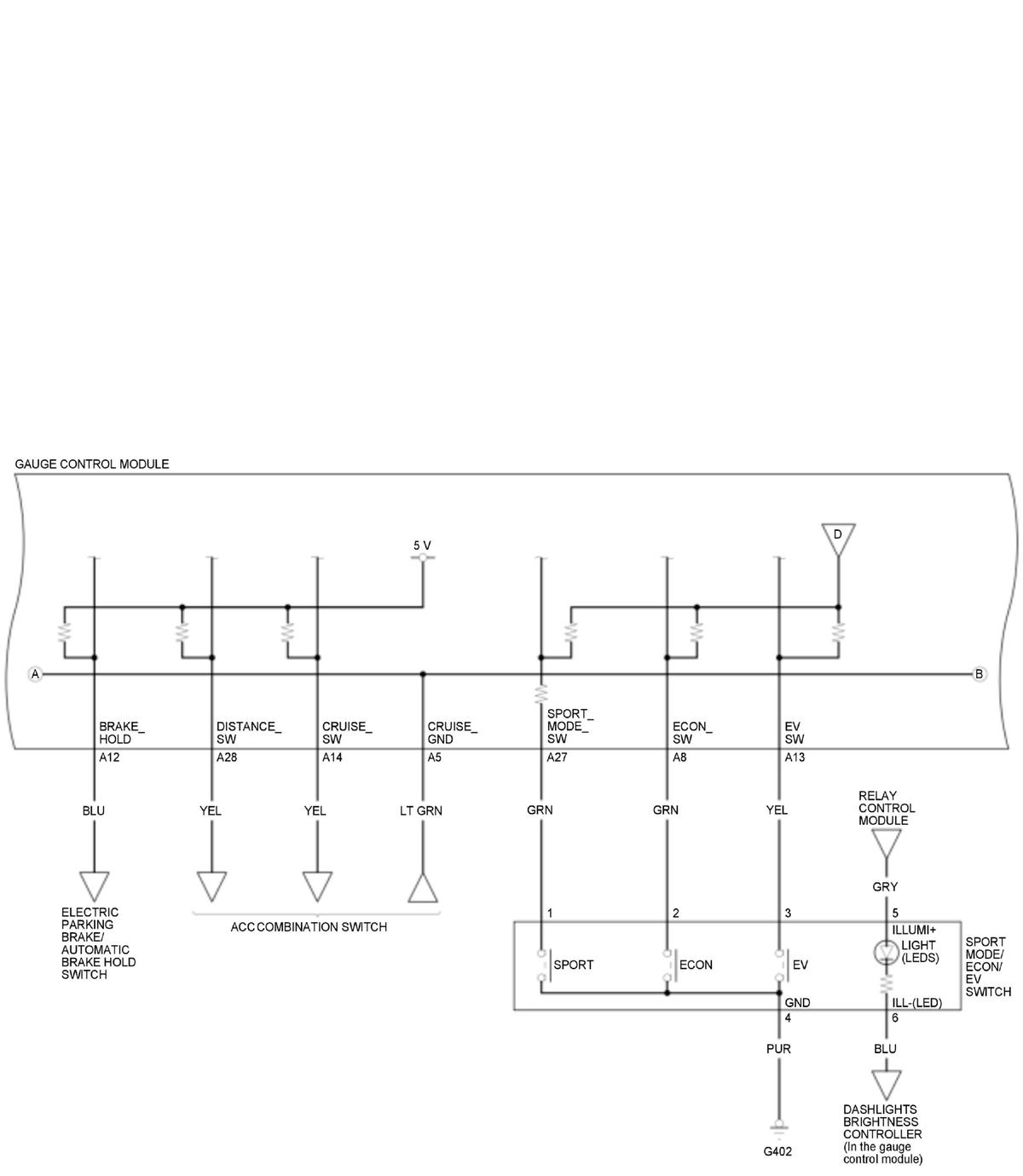

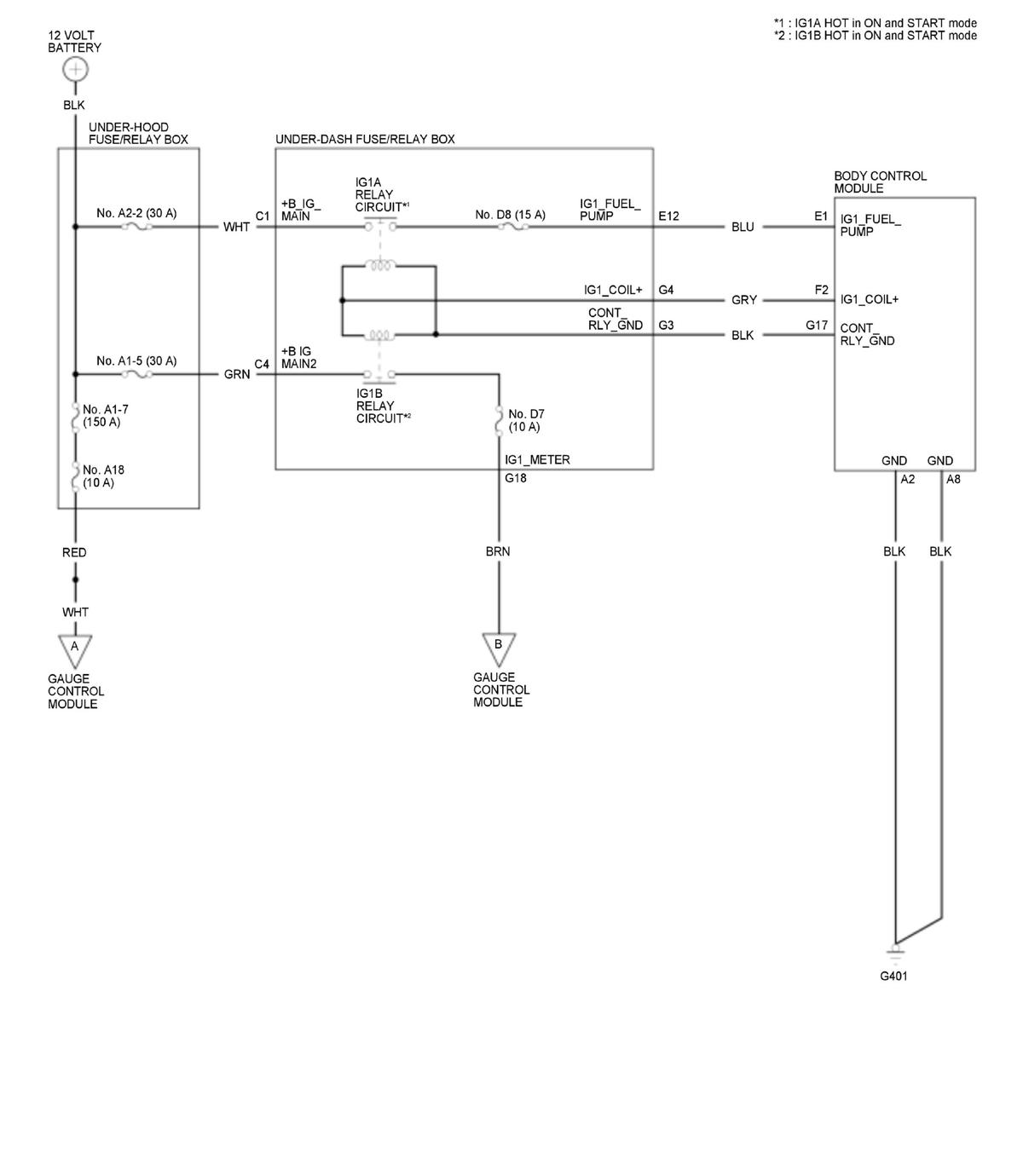

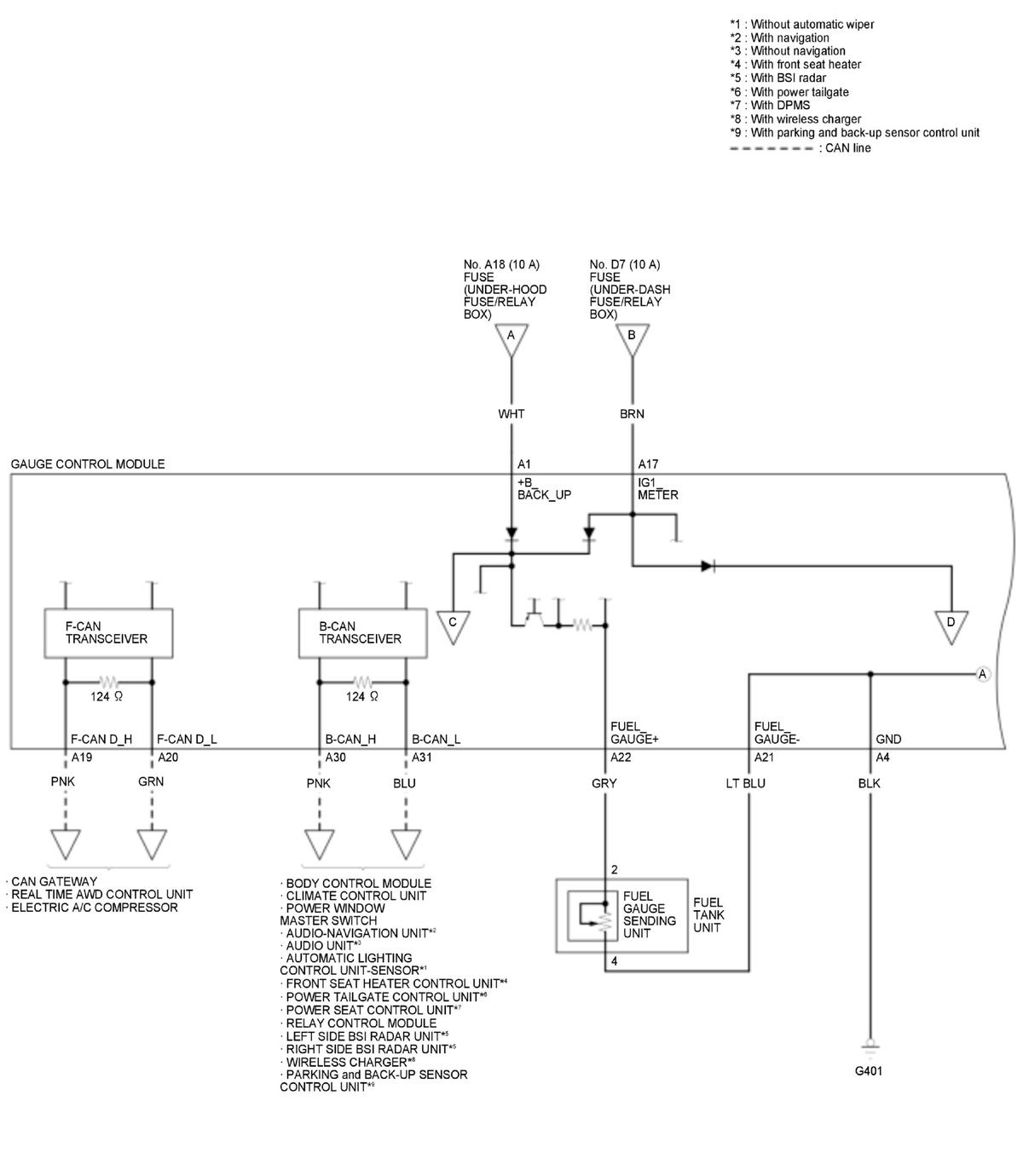

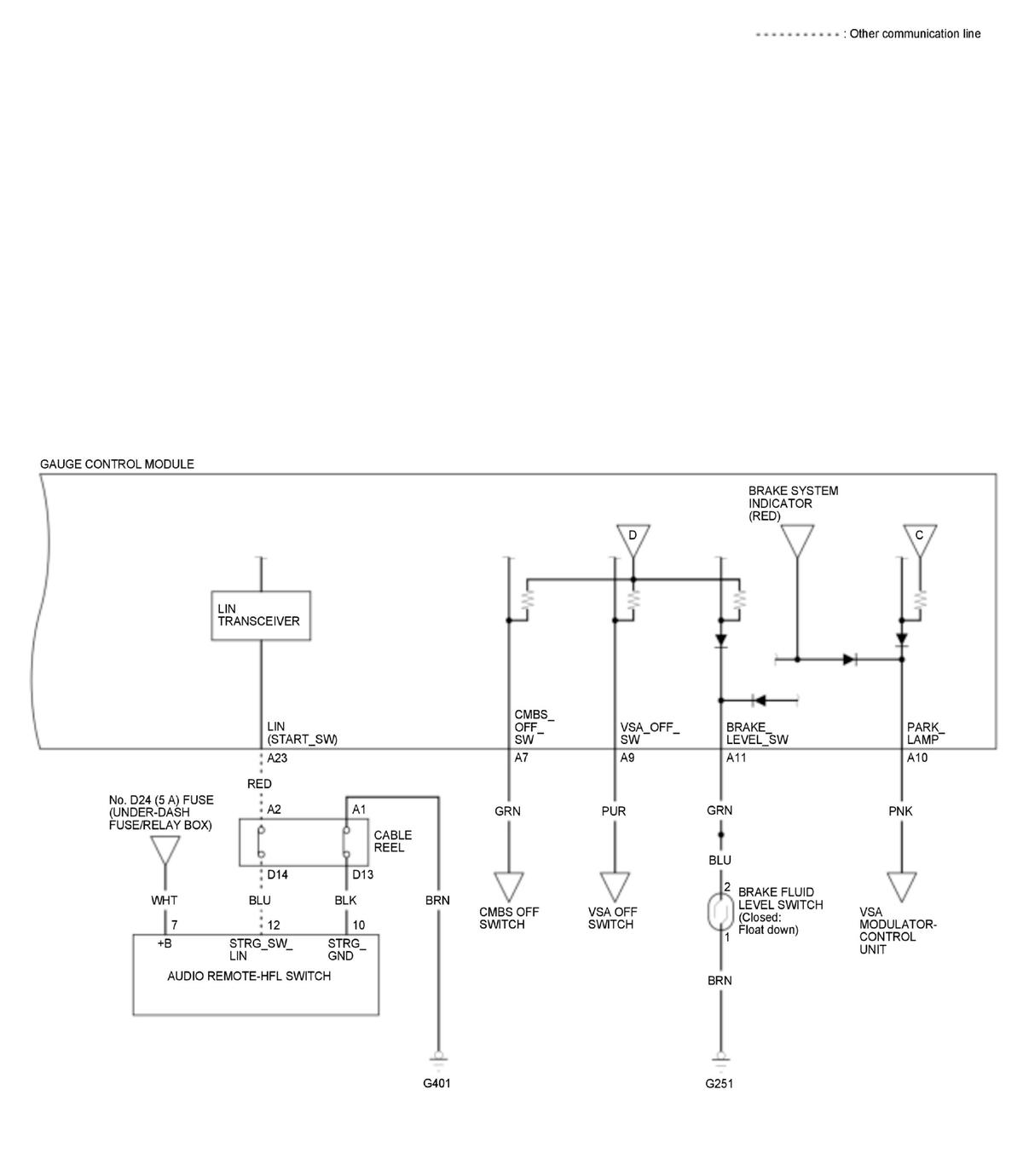

Gauges Circuit Diagram
WARNING: This page is about a different variant/trim than selected.
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
