Removal and Installation: Procedure

WARNING: This page is about a different variant/trim than selected.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

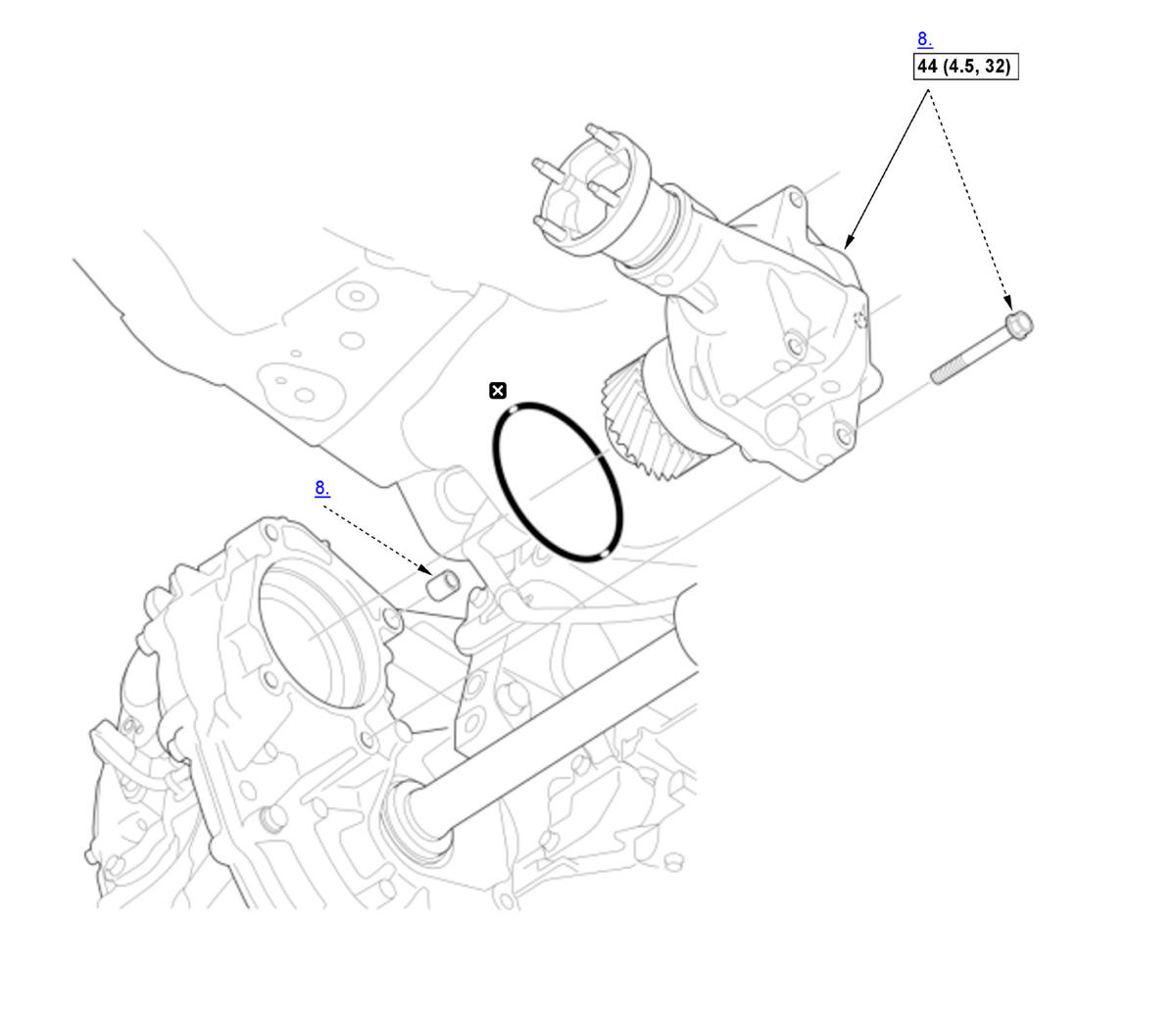

Fig 1: Exploded View Of Transfer Assembly Components With Torque Specifications
GHH374732Courtesy of HONDA, U.S.A., INC.
Torque: N.m (kgf.m, lbf.ft)
Replace
  1. Vehicle - Lift
  2. Neutral Position Holding Mode - Enter

    NOTE:  Even if the negative terminal of the 12 volt battery is disconnected after the neutral position holding mode is actuated, the vehicle continues to keep the N position.

  3. 12 Volt Battery Terminal - Disconnect
  4. Engine Undercover - Remove
  5. ATF - Drain
  6. Exhaust Pipe A - Remove
  7. Propeller Shaft - Remove
  8. Transfer Assembly - Remove
  9. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
  10. ATF - Refill
