Gear Unit Control System Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

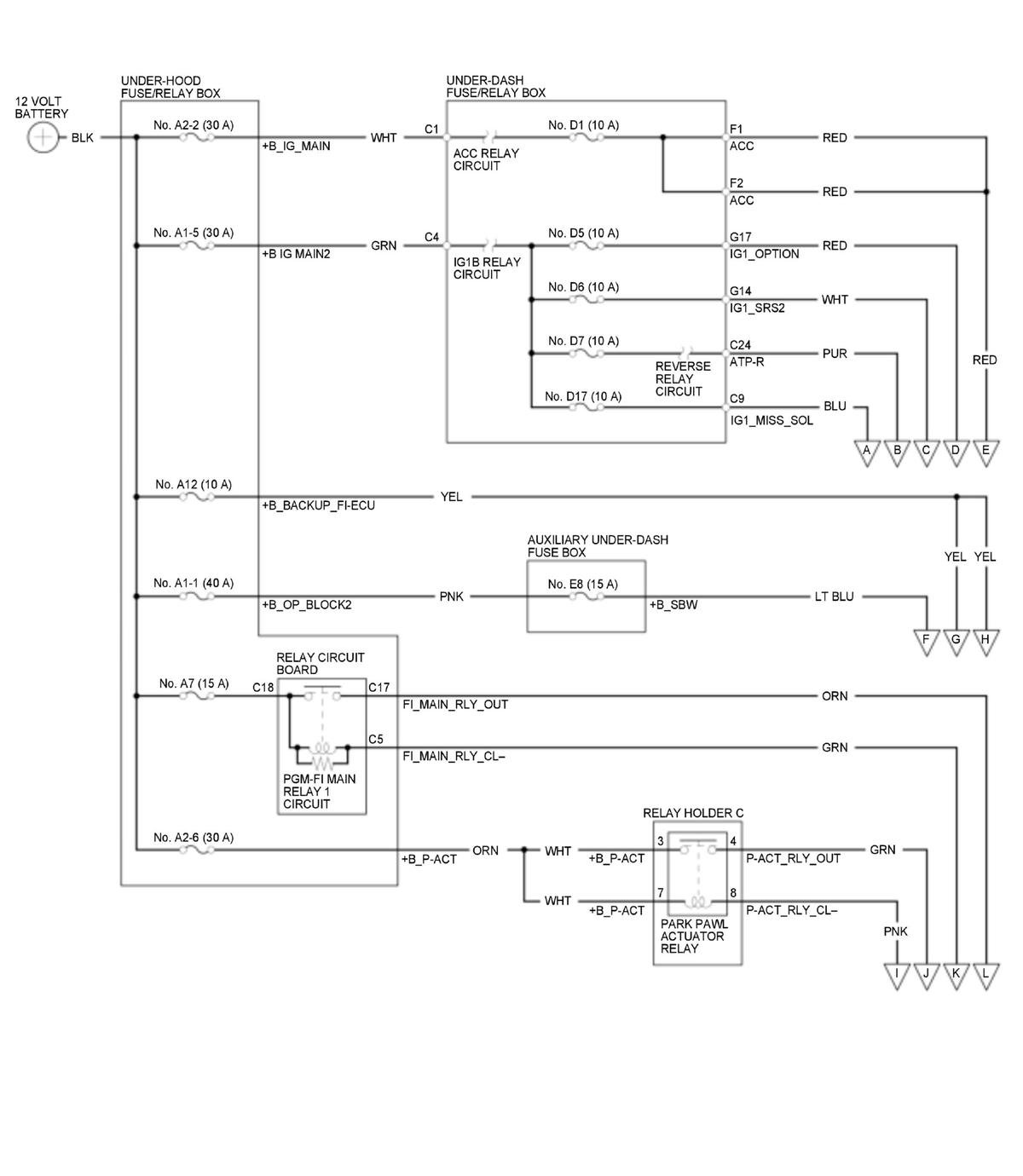

GHH374809Courtesy of HONDA, U.S.A., INC.

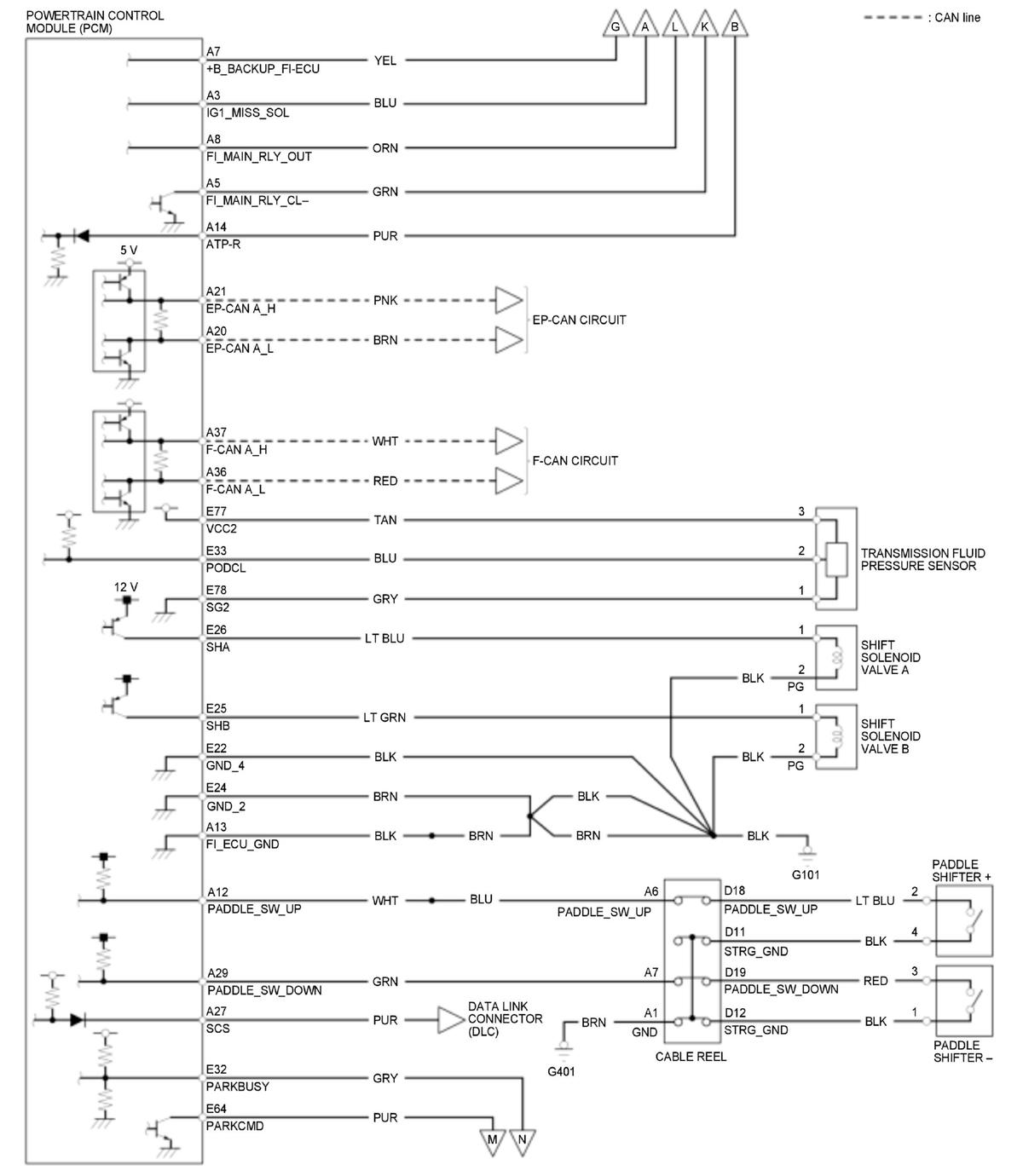

GHH374810Courtesy of HONDA, U.S.A., INC.

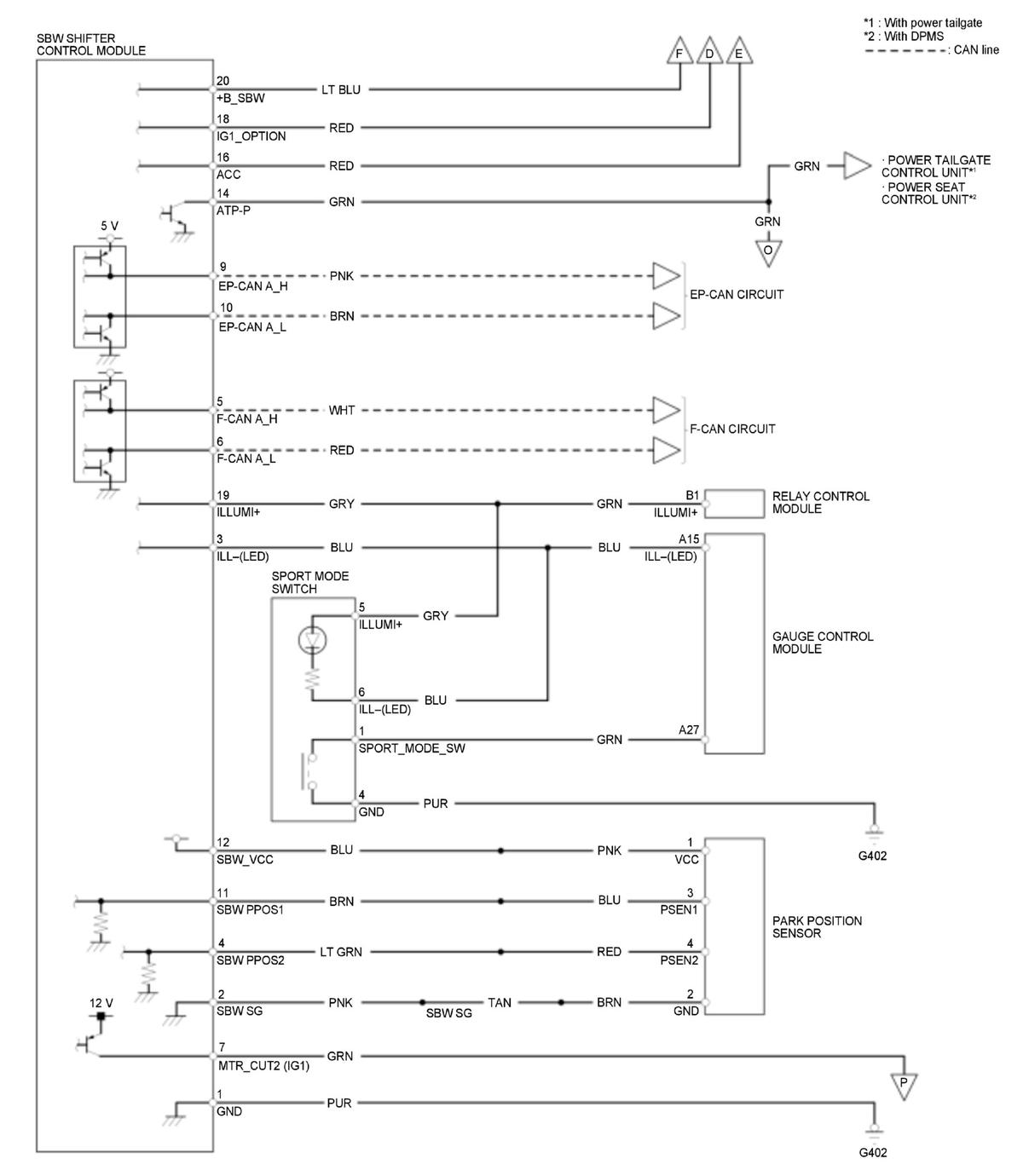

GHH374811Courtesy of HONDA, U.S.A., INC.

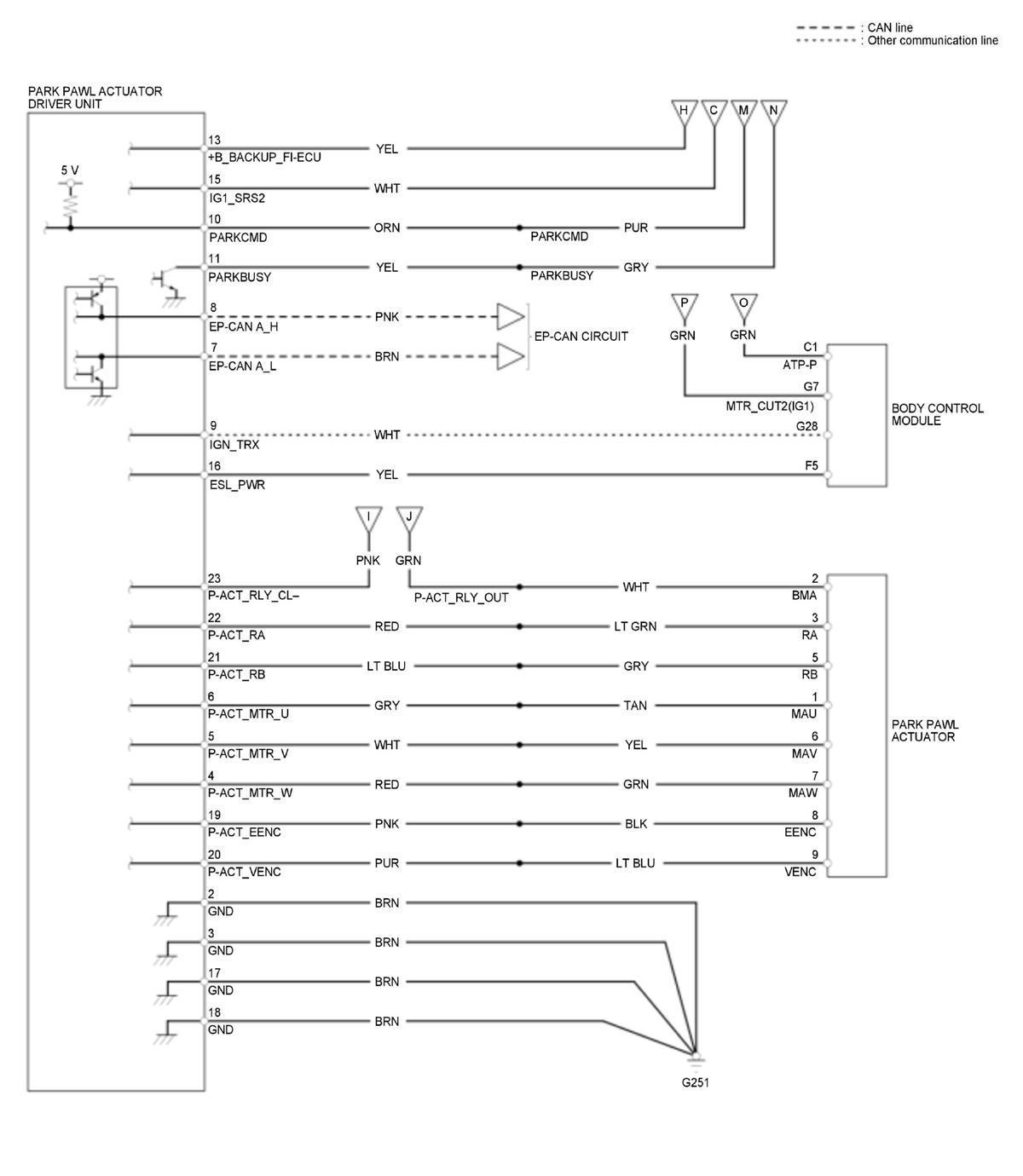

GHH374812Courtesy of HONDA, U.S.A., INC.
