Driving Position Memory Switch Removal, Installation, and Test: Test

WARNING: This page is about a different variant/trim than selected.

Driving Position Memory Switch - Test

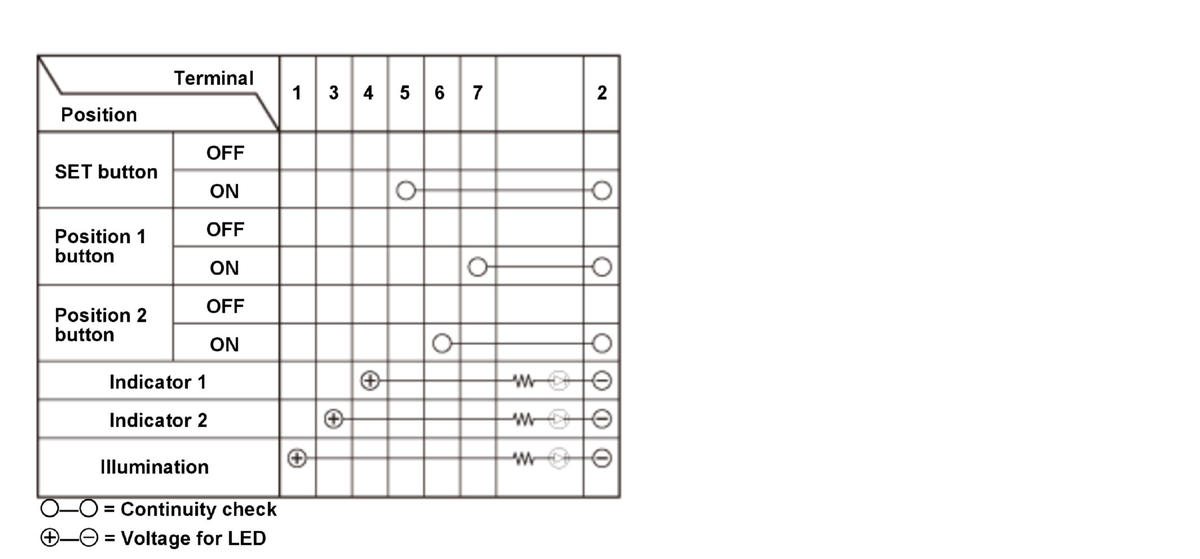

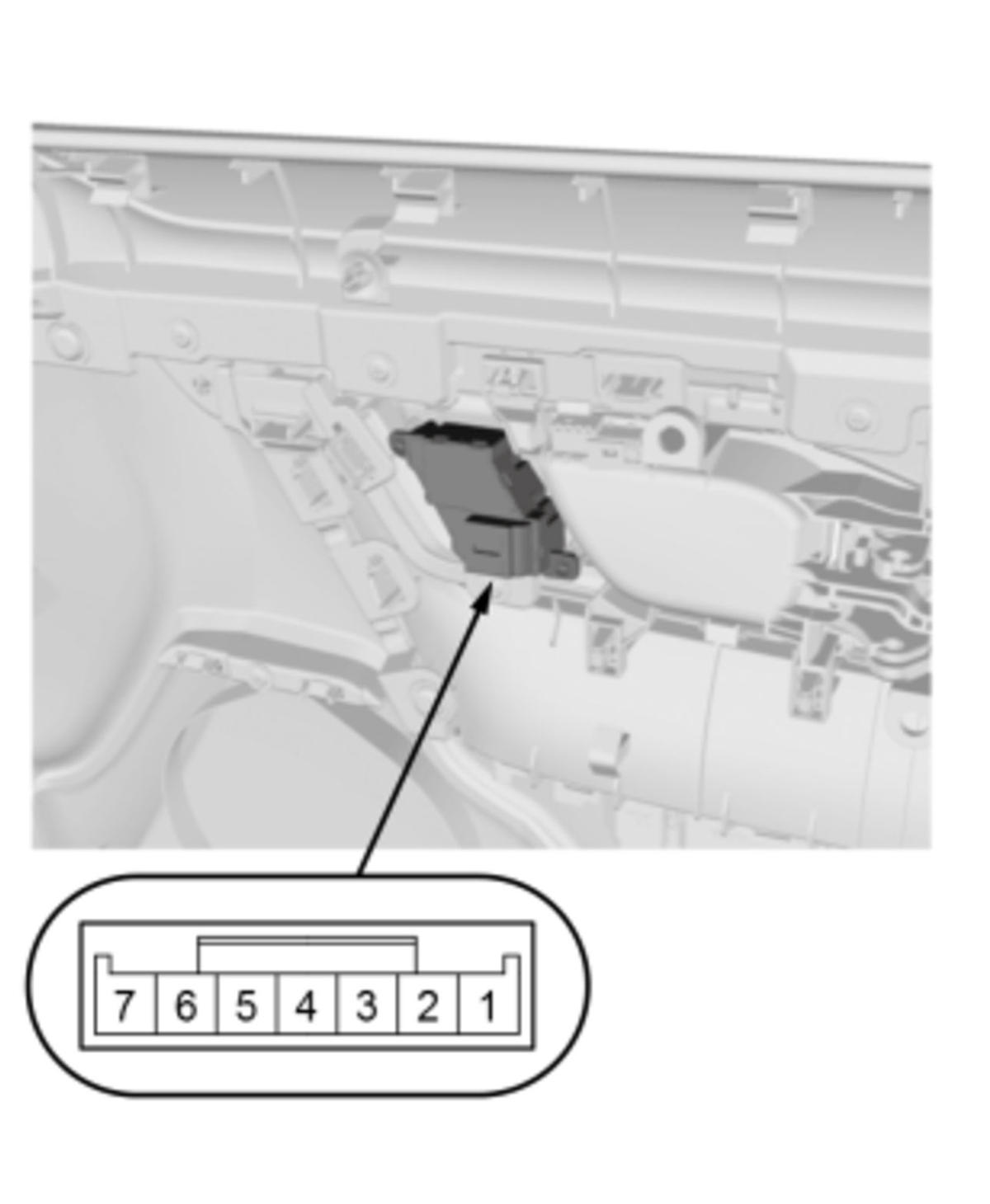

1. Check the driving position memory switch according to the table.

NOTE:
- When an LED is located between terminals, check if the LED lights by connecting power and ground to the LED.
- Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).
Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

2. If the result is not as specified, replace the driving position memory switch.
