Exterior Lights Circuit Diagram
WARNING: This page is about a different variant/trim than selected.

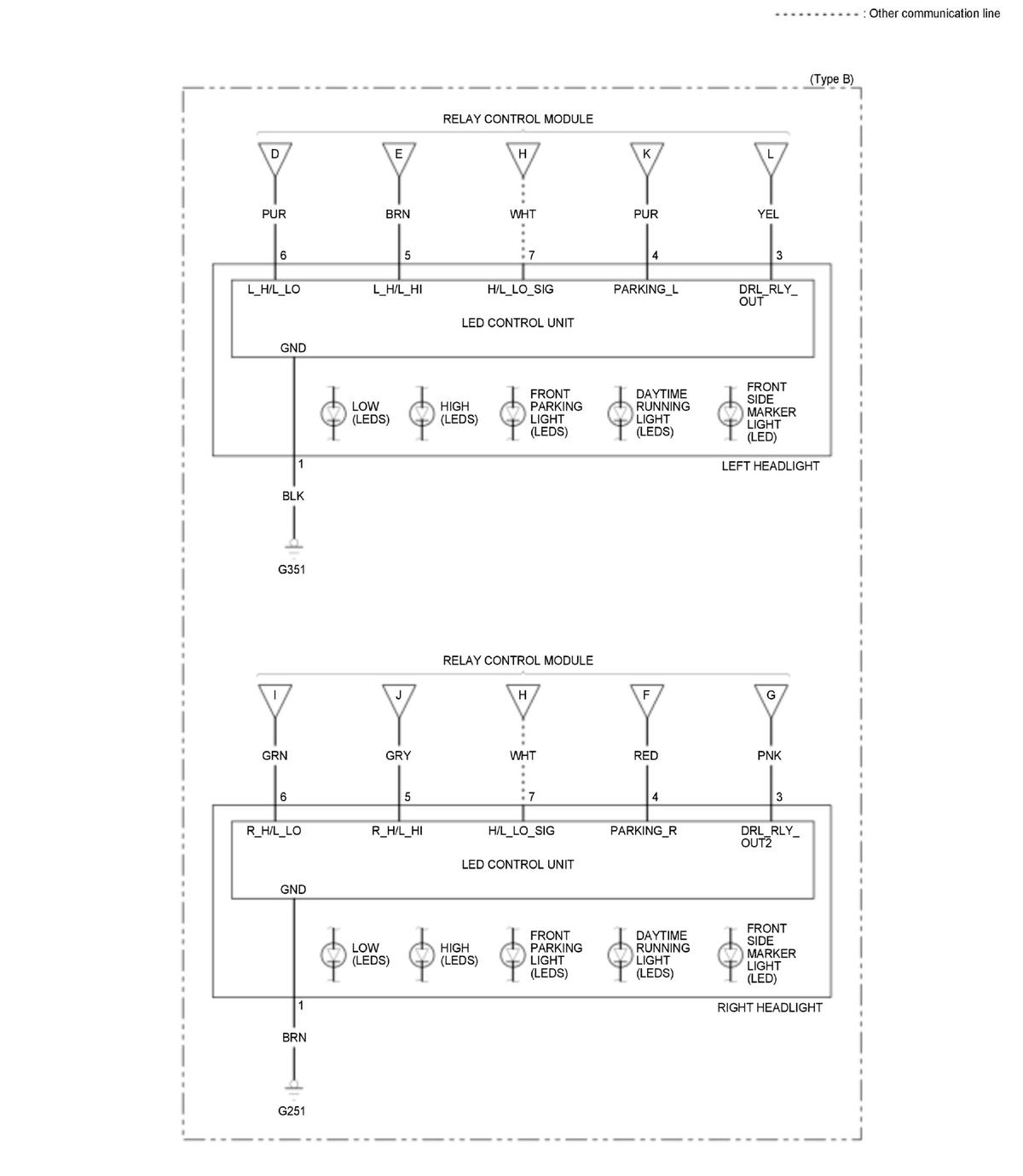

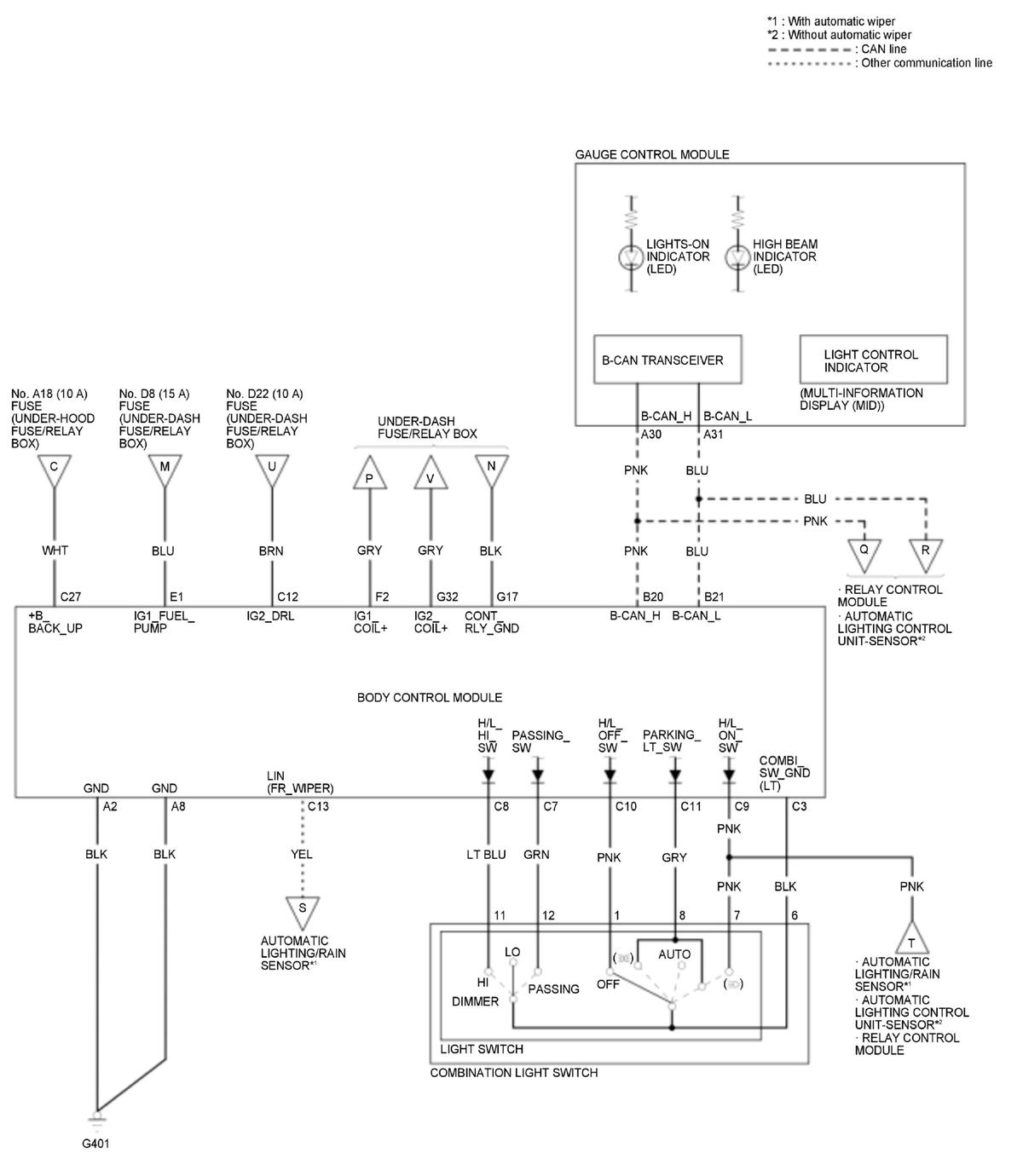

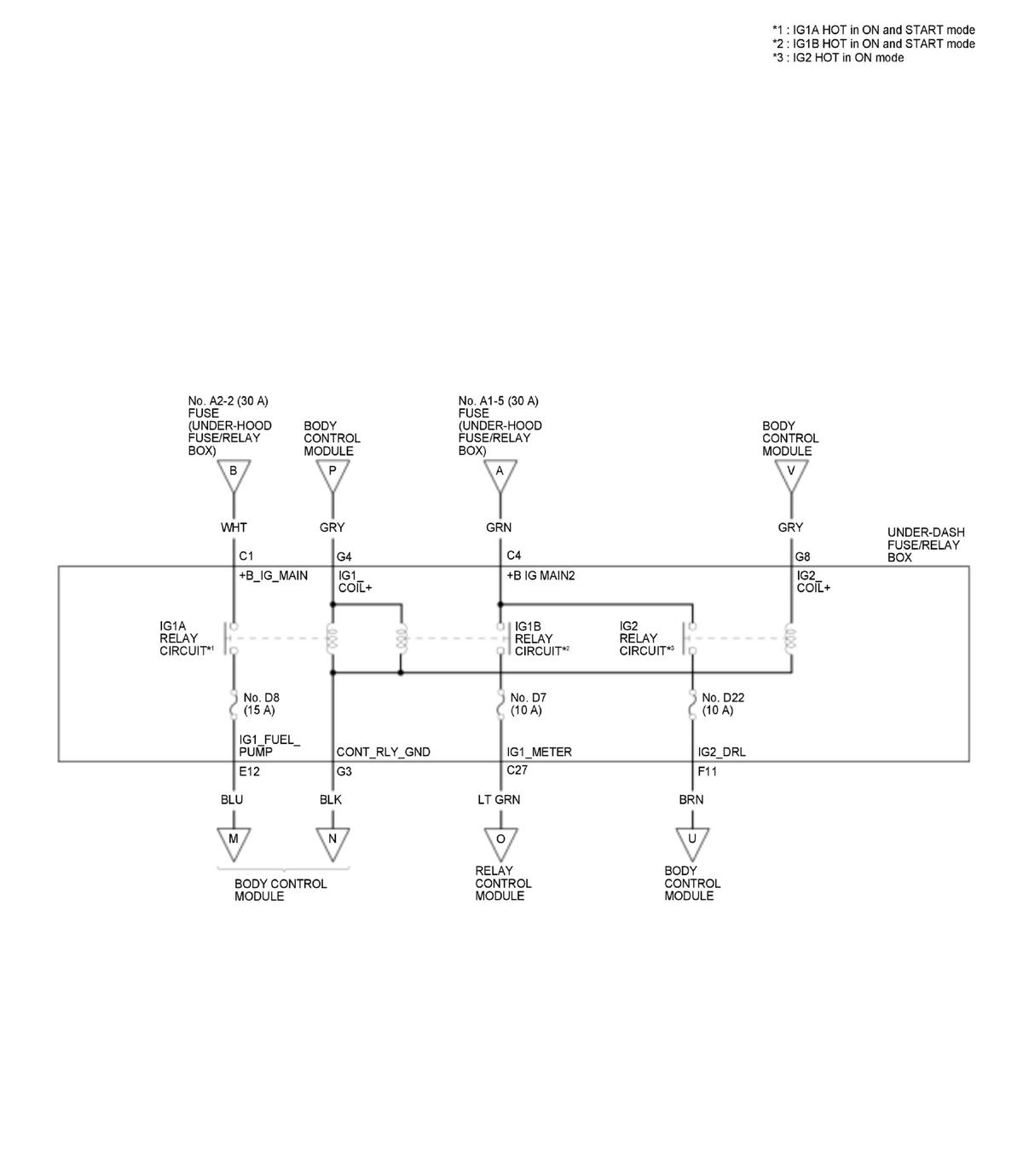

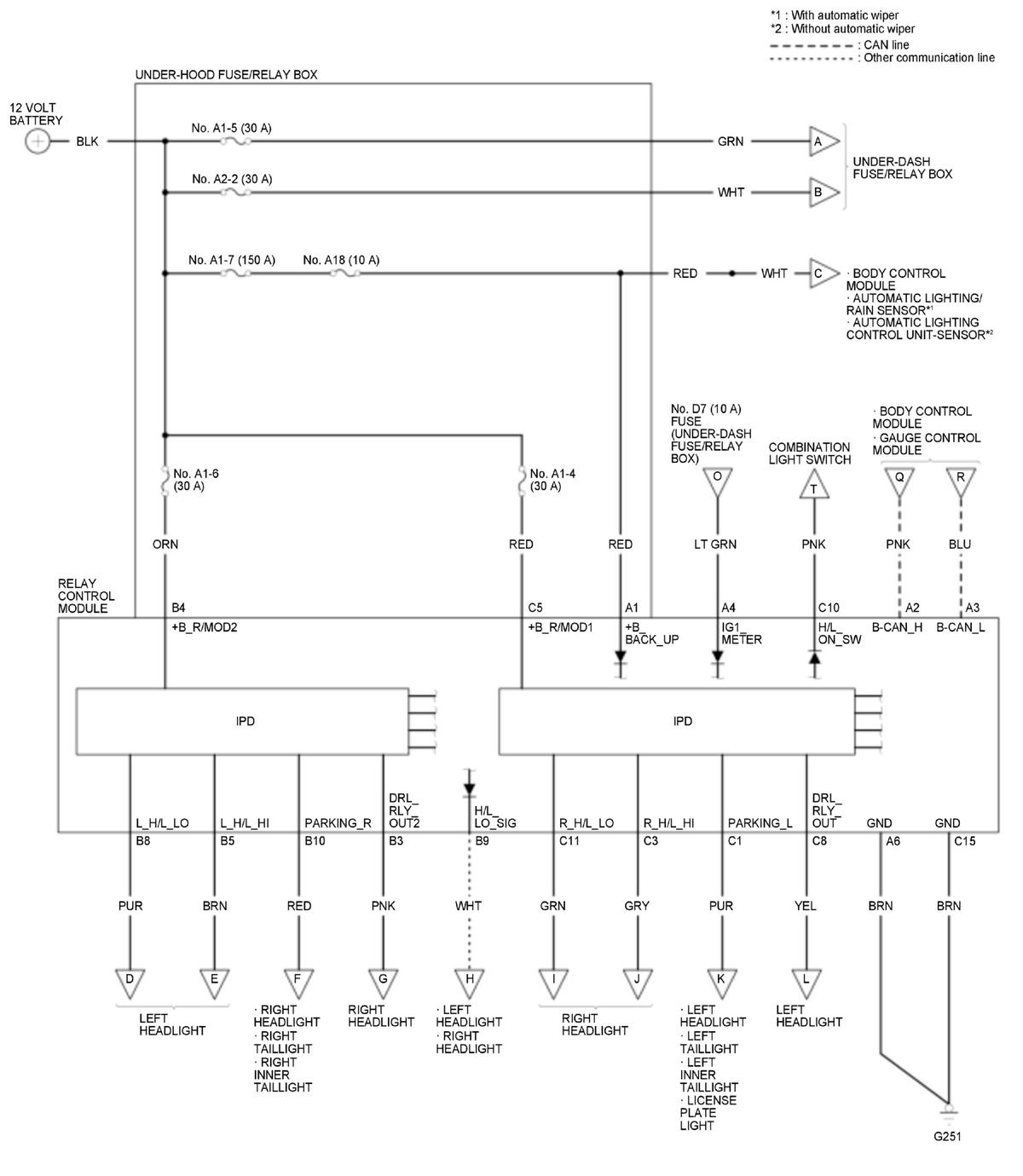

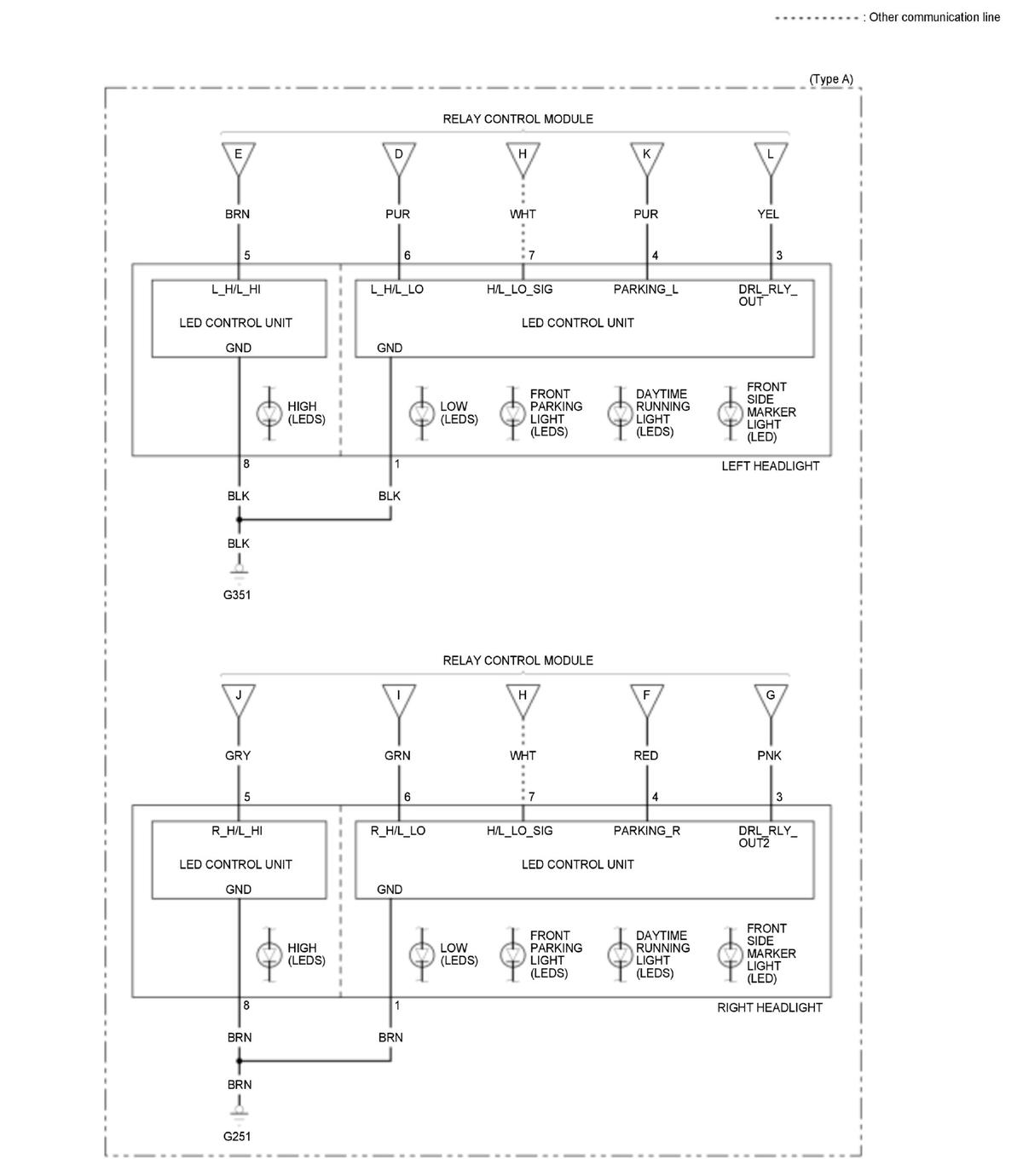

Headlights/Parking Lights/Daytime Running Lights/Side Marker Lights/Taillights/License Plate Light
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|

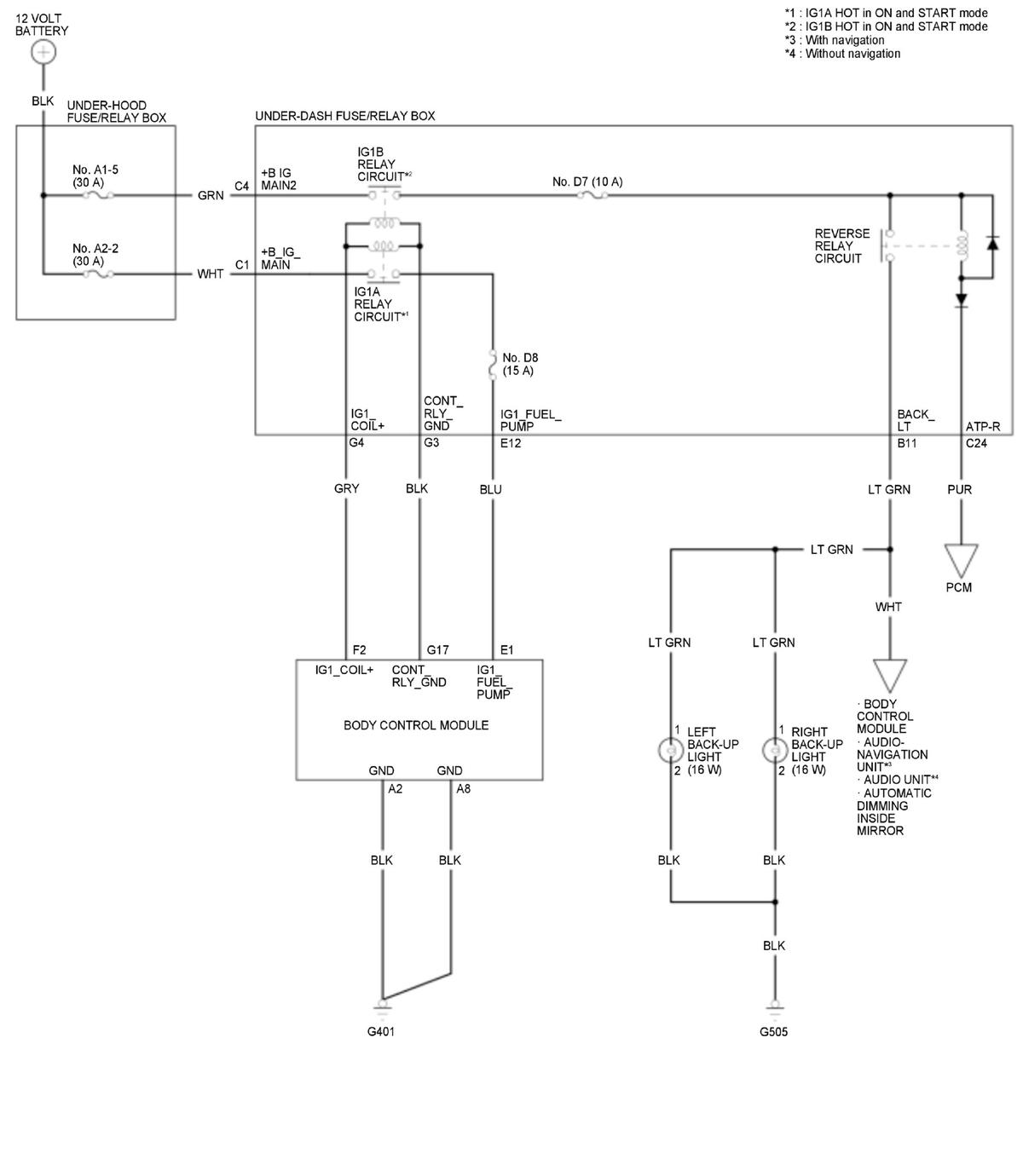

Back-Up Lights
 Courtesy of HONDA, U.S.A., INC.
|

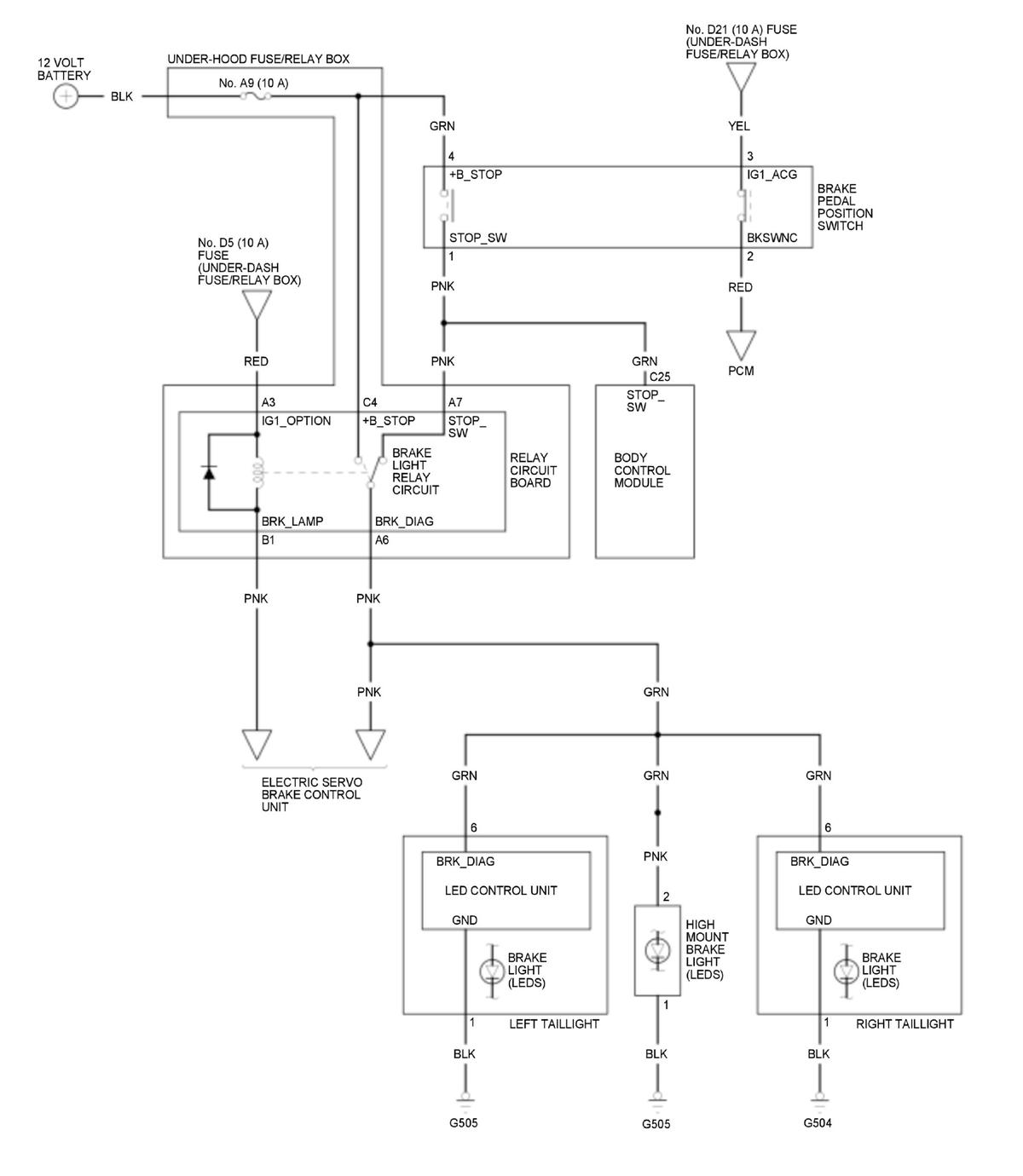

Brake Lights
 Courtesy of HONDA, U.S.A., INC.
|

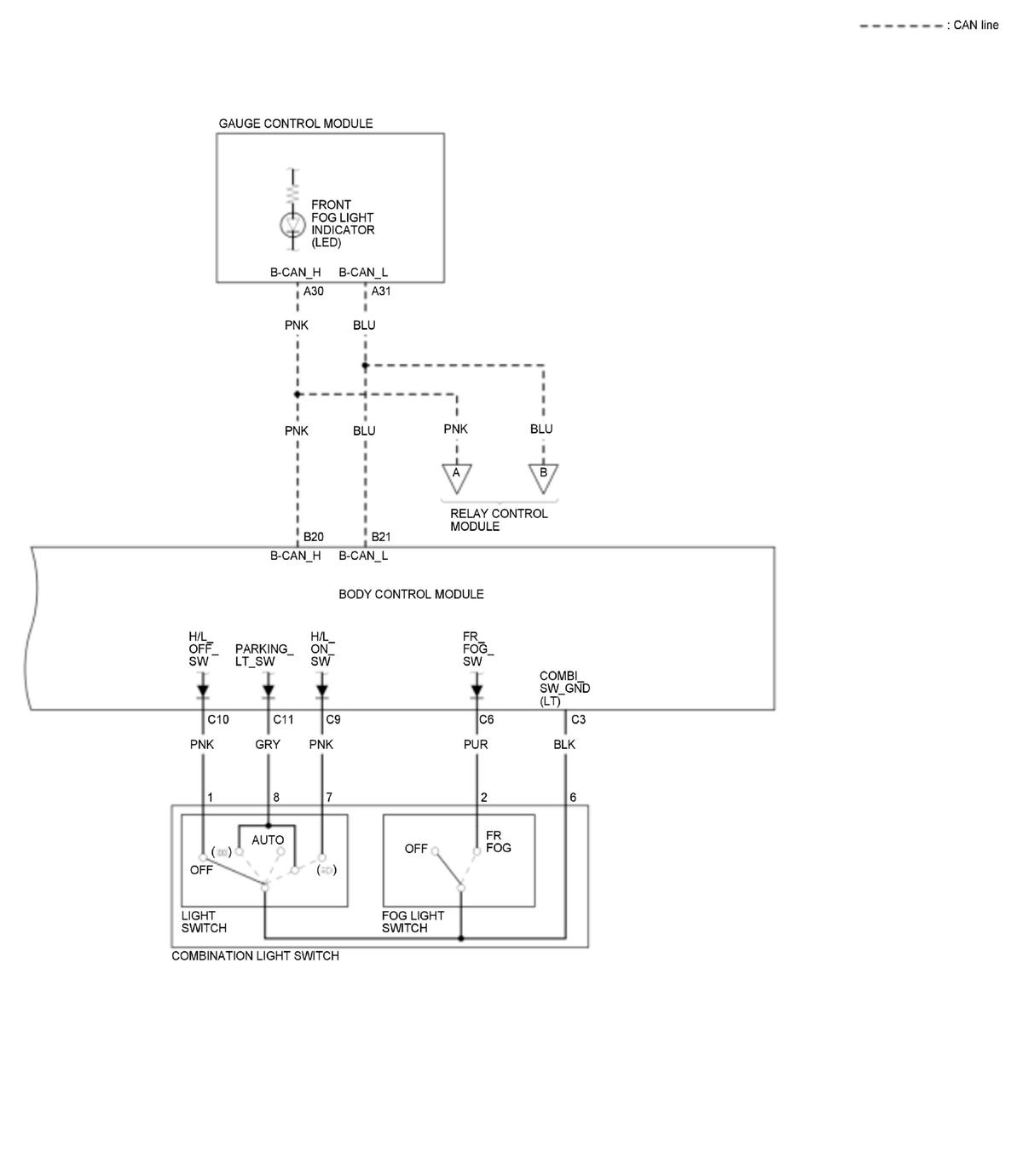

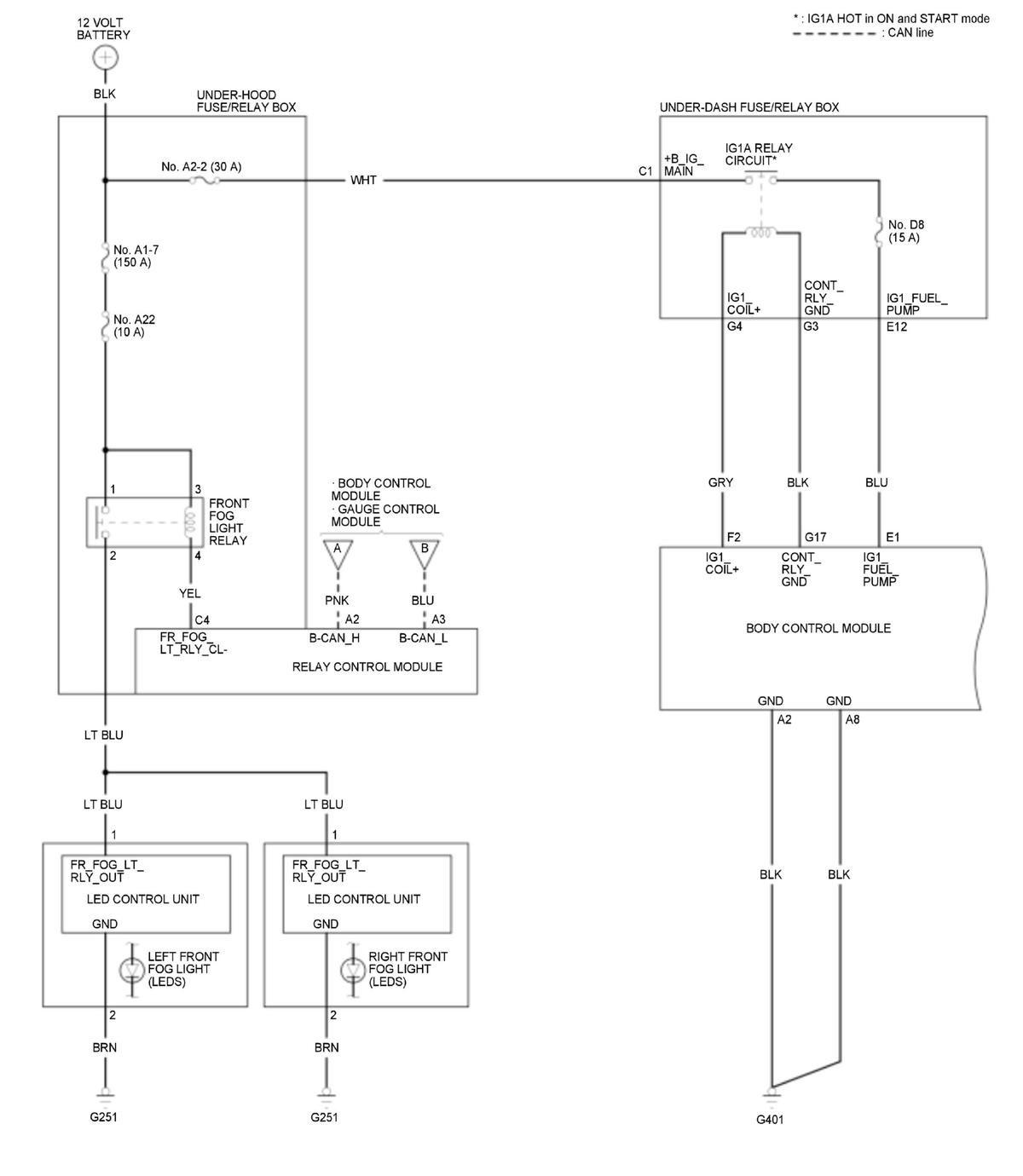

Fog Lights
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
