Section 36 (Exterior Lighting - Testing & Troubleshooting (Hybrid))
>>
Circuit Diagram
>>

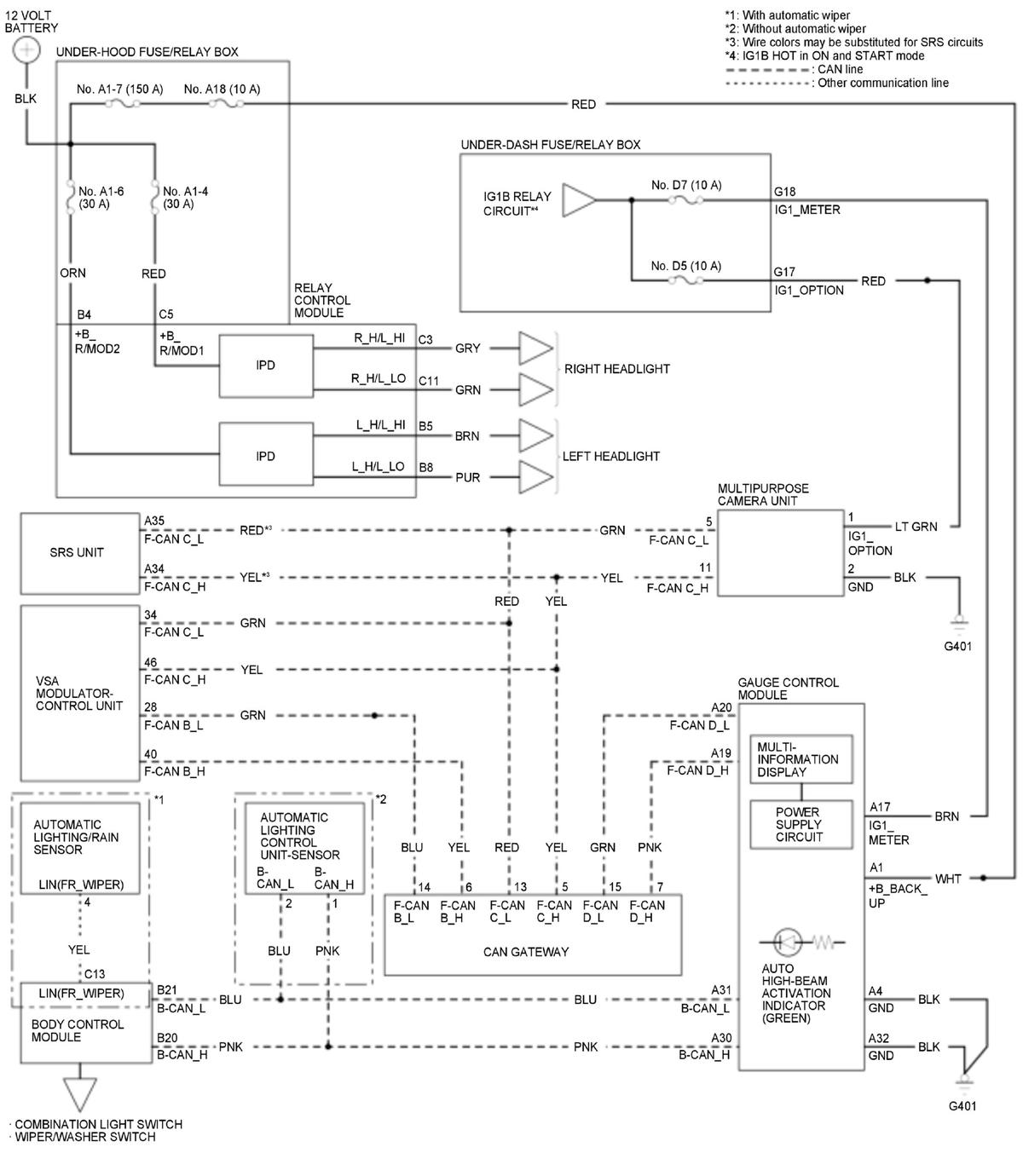

Auto High-Beam (High-Beam Support System) Circuit Diagram
Auto High-Beam (High-Beam Support System) Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HONDA, U.S.A., INC.
