DTC B1280

DTC B1280  : Turn signal switch Circuit Malfunction

NOTE:  If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A .

DTC (Body Control Module)

1. Turn signal/hazard warning lights system check

   -1. Check the parameter(s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   Turn Signal Switch (LEFT)	OFF
   Turn Signal Switch (RIGHT)	OFF

   Are both data list values indicated OFF?

   YES

   Go to step 2.

   NO

   Go to step 4.

2. Turn signal/hazard warning lights system check 2

   -1. Operate the turn signal switch to the left or right position.

   -2. Check the parameter(s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   Turn Signal Switch (LEFT)	ON
   Turn Signal Switch (RIGHT)	ON

   Are both data list values indicated ON?

   YES

   Go to step 3.

   NO

   Intermittent failure, the system is OK at this time.

3. Shorted wire check (R_TURN_SW to L_TURN_SW line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

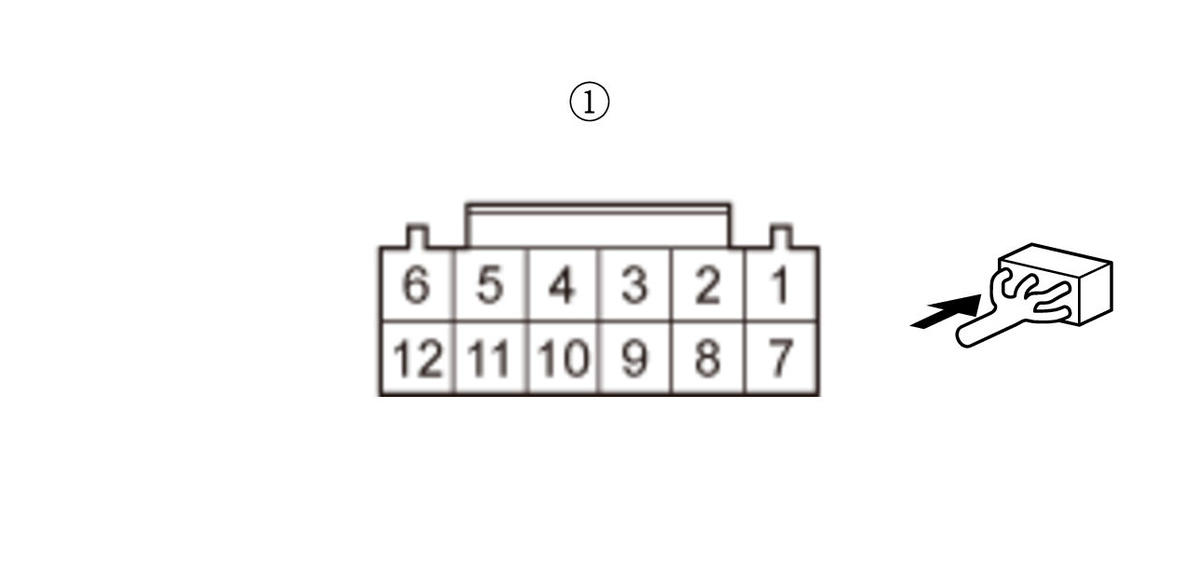

   Combination light switch 12P connector

   -3. Connect terminals A and B with a jumper wire.

   Terminal A	Combination light switch 12P connector (female terminals) No. 10:
   Terminal B	Body ground

   Courtesy of HONDA, U.S.A., INC.

   -4. Check the parameter(s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   Turn Signal Switch (LEFT)	OFF
   Turn Signal Switch (RIGHT)	ON

   Are both data list values correct?

   YES

   The R_TURN_SW wire and the L_TURN_SW wire is not shorted. Replace the combination light switch .

   NO

   Repair a short between the wires.

4. Shorted wire check (L_TURN_SW line or R_TURN_SW line)

   -1. Check the parameter(s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   Turn Signal Switch (LEFT)	ON
   Turn Signal Switch (RIGHT)	OFF

   Is TURN SIGNAL SWITCH (LEFT) value ON?

   YES

   Go to step 5.

   NO

   Go to step 6.

5. Shorted wire check (L_TURN_SW line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Combination light switch 12P connector

   -3. Check the parameter (s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   Turn Signal Switch (LEFT)	ON

   Is TURN SIGNAL SWITCH (LEFT) value ON?

   YES

   Repair a short to ground in the wire.

   NO

   The L_TURN_SW wire is OK. Replace the combination light switch .

6. Shorted wire check (R_TURN_SW line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Combination light switch 12P connector

   -3. Check the parameter(s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   Turn Signal Switch (RIGHT)	ON

   Is TURN SIGNAL SWITCH (RIGHT) value ON?

   YES

   Repair a short to ground in the wire.

   NO

   The R_TURN_SW wire is OK. Replace the combination light switch .
