Hazard Warning Switch Removal, Installation, and Test: Test

WARNING: This page is about a different variant/trim than selected.

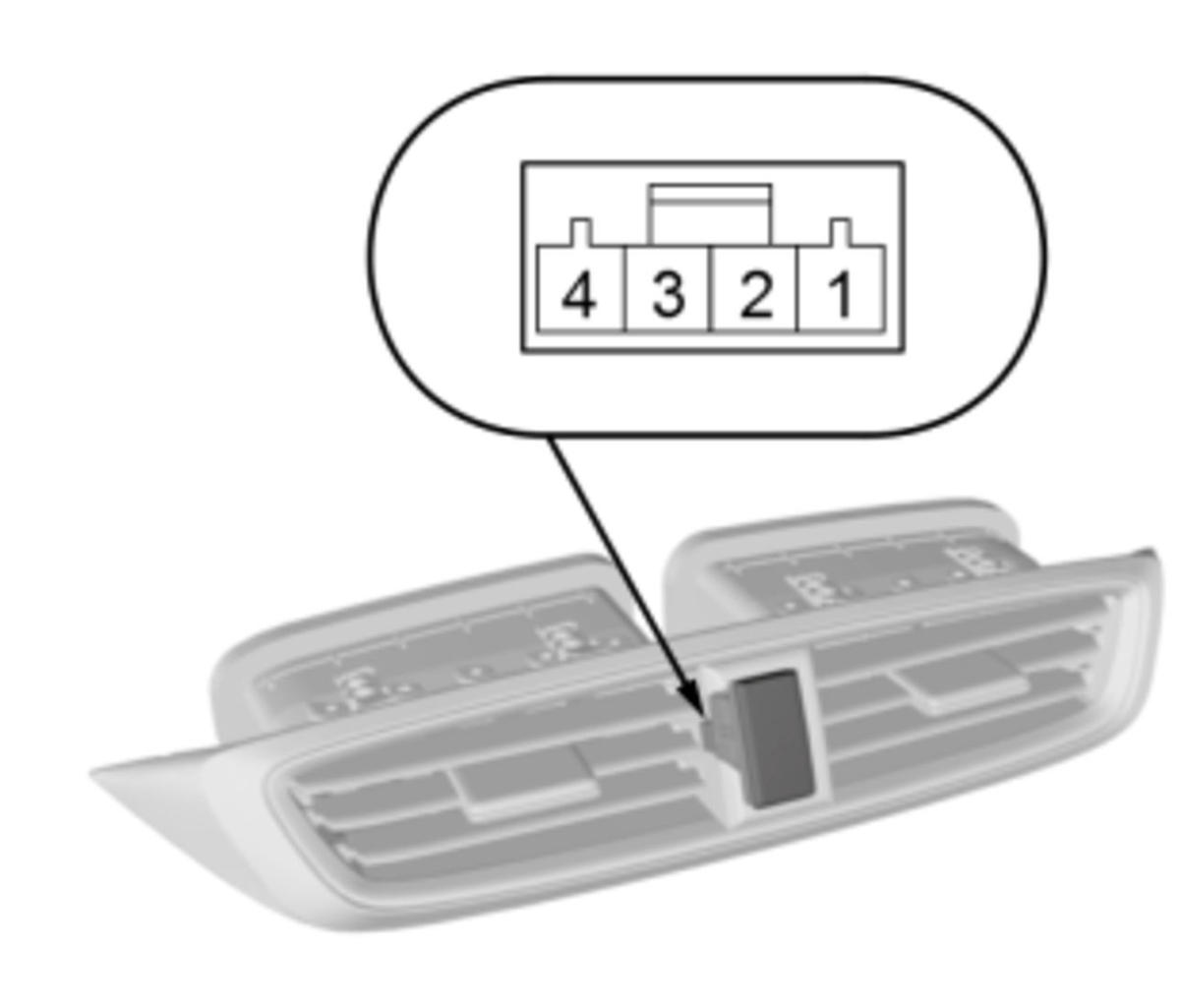

Hazard Warning Switch - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

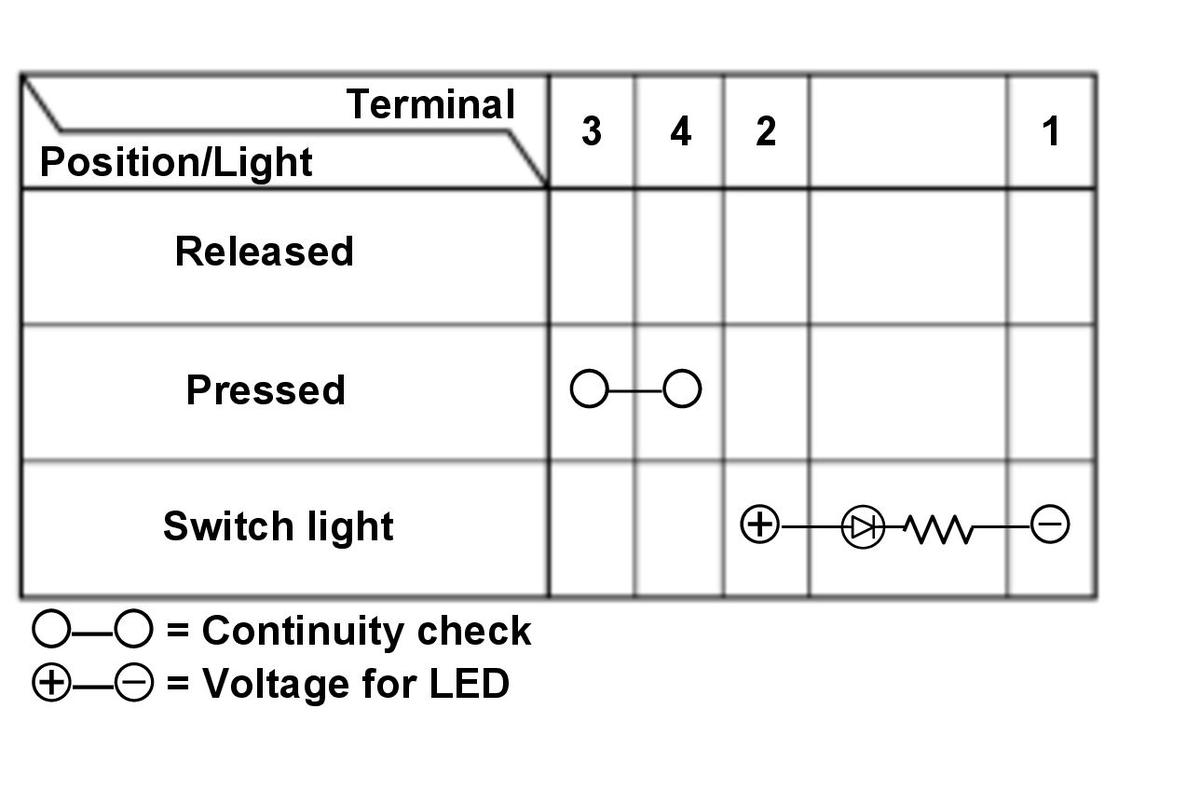

1. Check the hazard warning switch according to the table.
NOTE:

When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

2. If the result is not as specified, replace the hazard warning switch.
