Parking and Back-Up Sensor Switch - Test

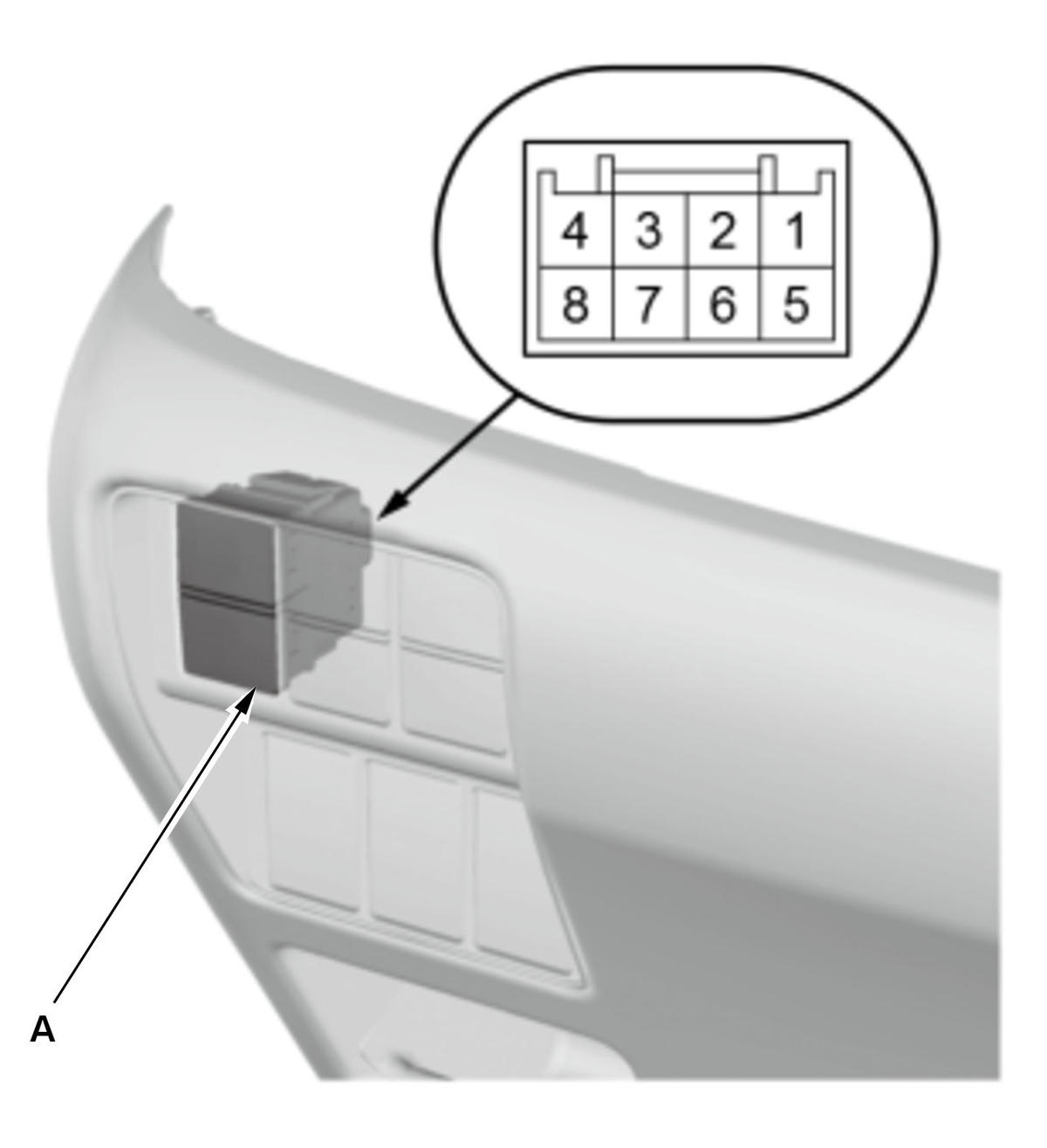

The switch location of the parking and back-up sensor switch (A) is different depending on the model.

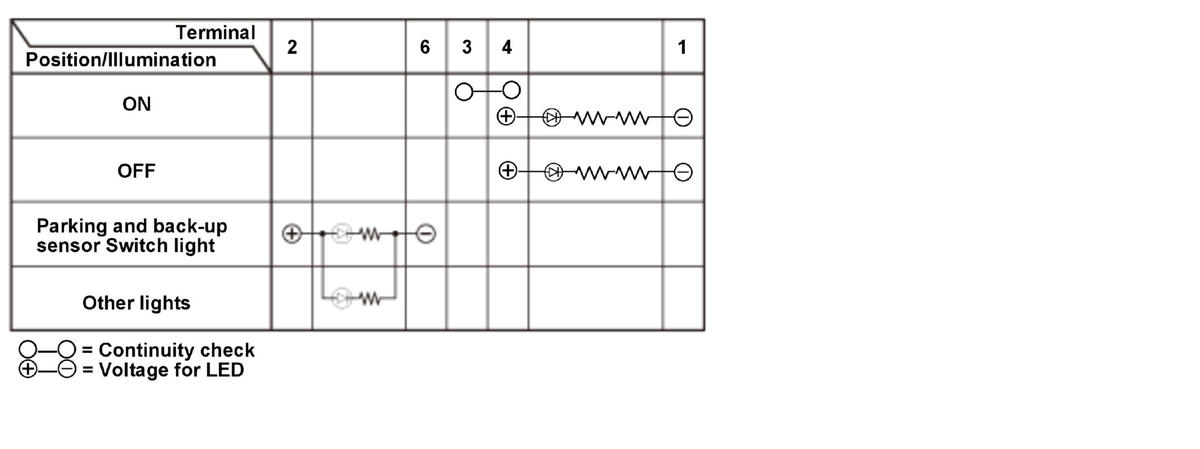

1. Check the parking and back-up sensor switch according to the table.

NOTE:
- When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
- Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).
- Make sure the correct test lead (+ or -) is placed on the terminal.
Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

2. If the result is not as specified, replace the parking and back-up sensor switch.
