Paddle Shifter Removal, Installation, and Test: Test

WARNING: This page is about a different variant/trim than selected.

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repair or service.

Paddle Shifter - Test

Courtesy of HONDA, U.S.A., INC.

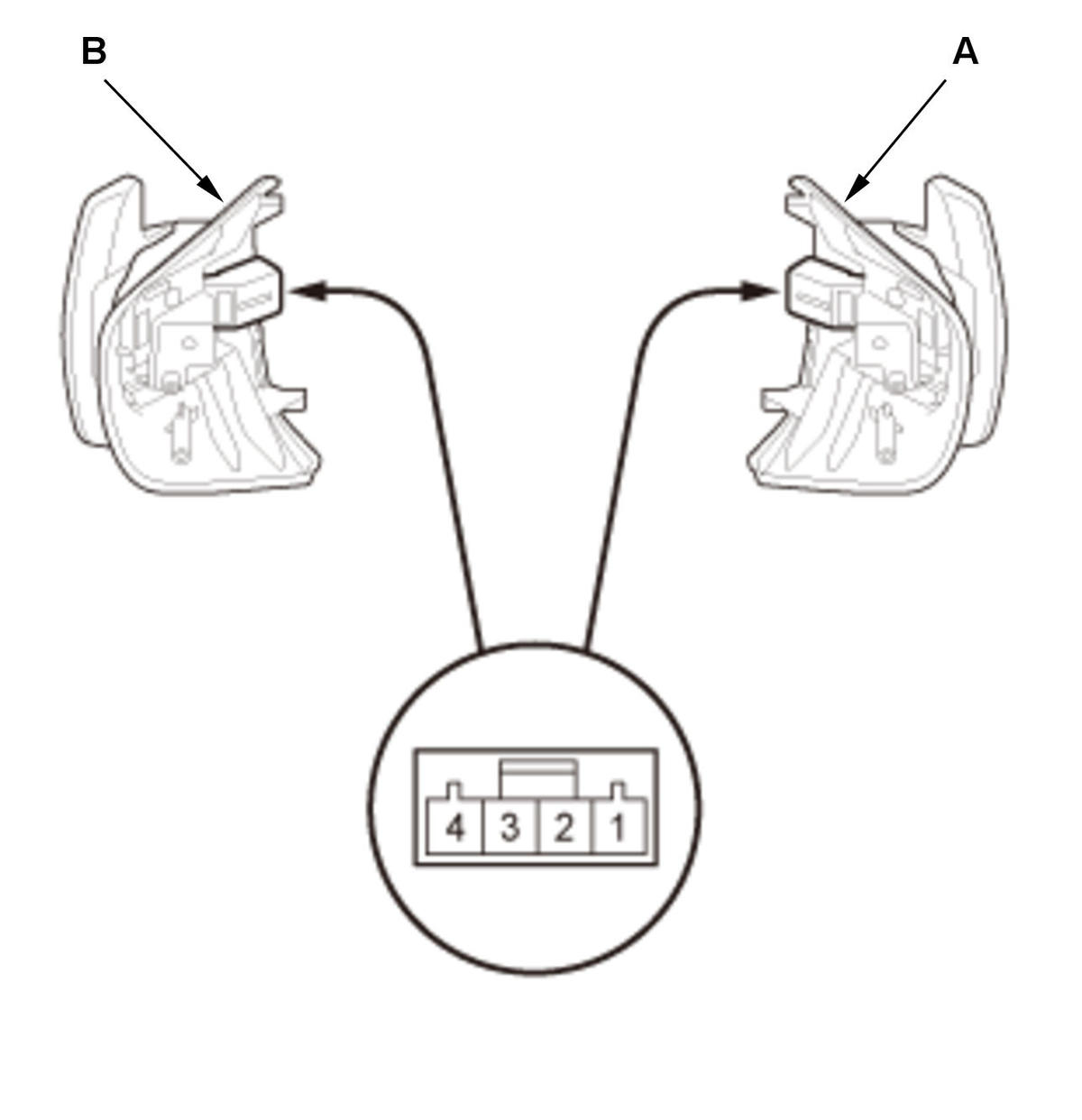

1. Test the paddle shifter + (A) and the paddle shifter - (B) according to the table.

2. If the result is not as specified, replace the paddle shifter + and/or the paddle shifter -.

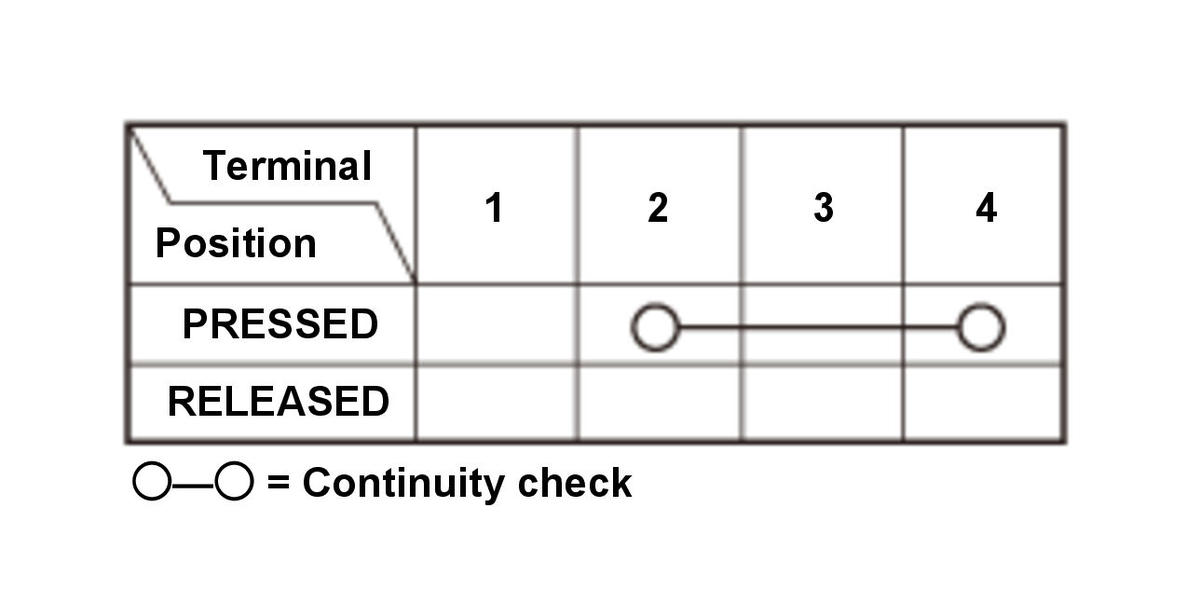

Paddle Shifter +

Courtesy of HONDA, U.S.A., INC.

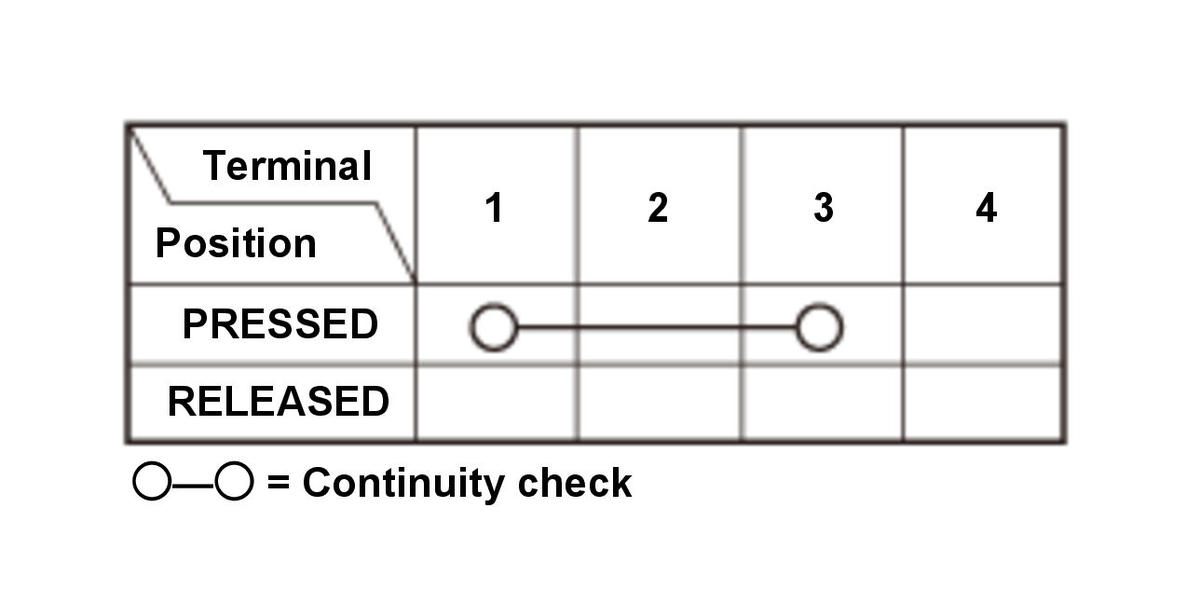

Paddle Shifter -

Courtesy of HONDA, U.S.A., INC.
