Removal and Installation: Procedure

WARNING: This page is about a different variant/trim than selected.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

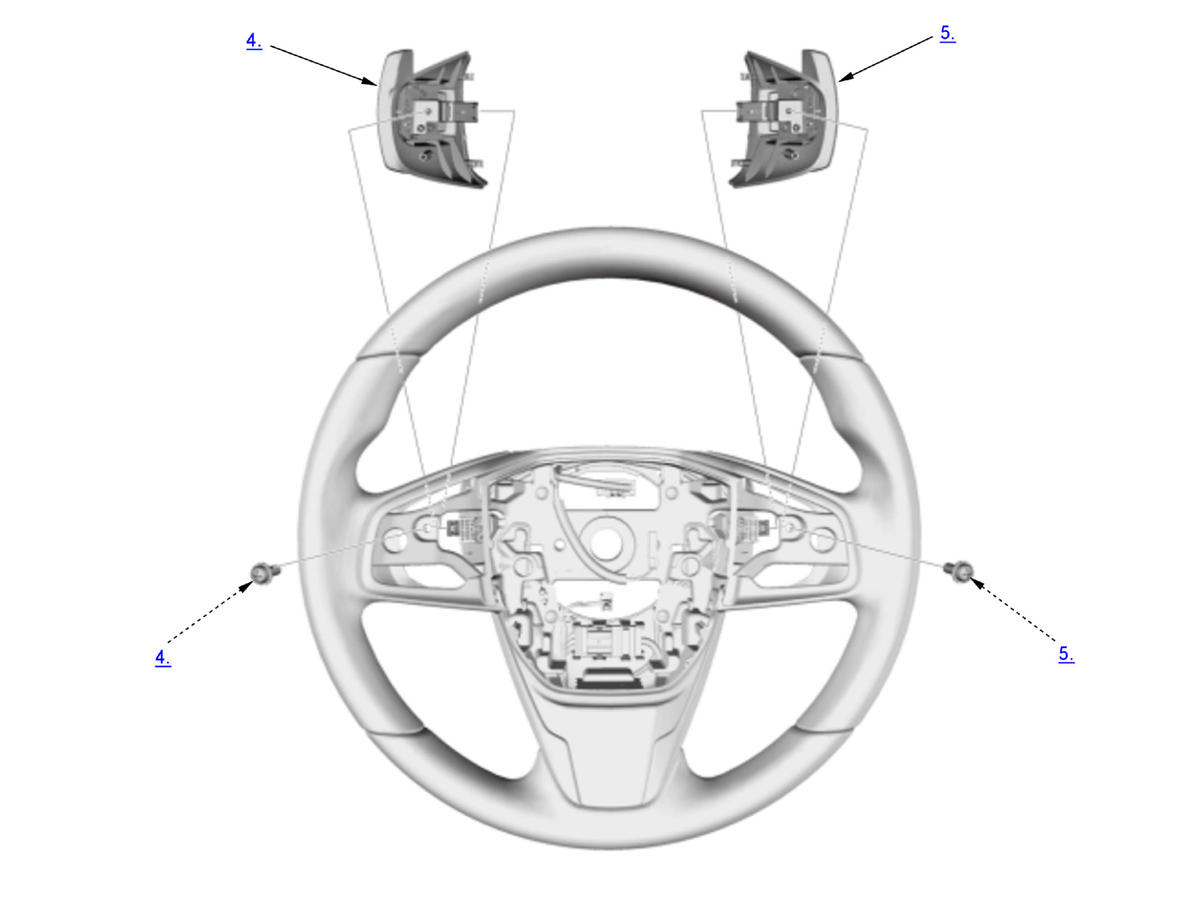

Fig 1: Exploded View Of Paddle Shifter Components
GHH379081Courtesy of HONDA, U.S.A., INC.
  1. Steering Wheel - Remove
  2. Steering Wheel Rear Cover - Remove
  3. Steering Wheel Trim - Remove
  4. Paddle Shifter - - Remove
  5. Paddle Shifter + - Remove
  6. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
  7. VSA Sensor Neutral Position - Memorize
