ECON Switch Removal, Installation, and Test: Test

WARNING: This page is about a different variant/trim than selected.
  1. ECON Switch - Test
    GHH379079GHH379080Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH379079GHH379080Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

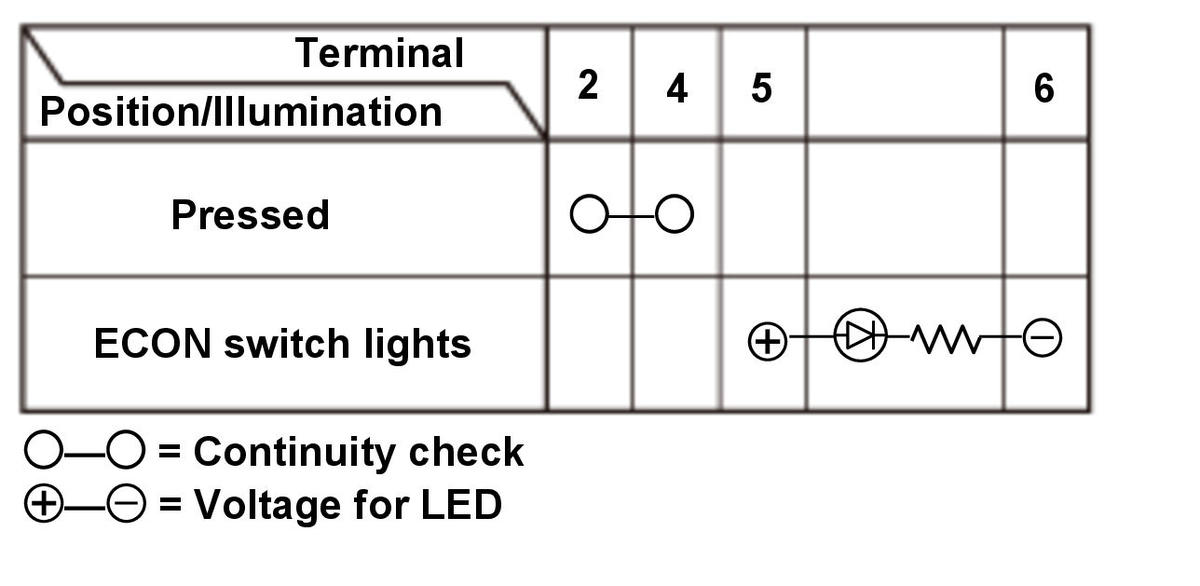

    		 1. Check the switch according to the table.
    NOTE:
    • When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
    • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

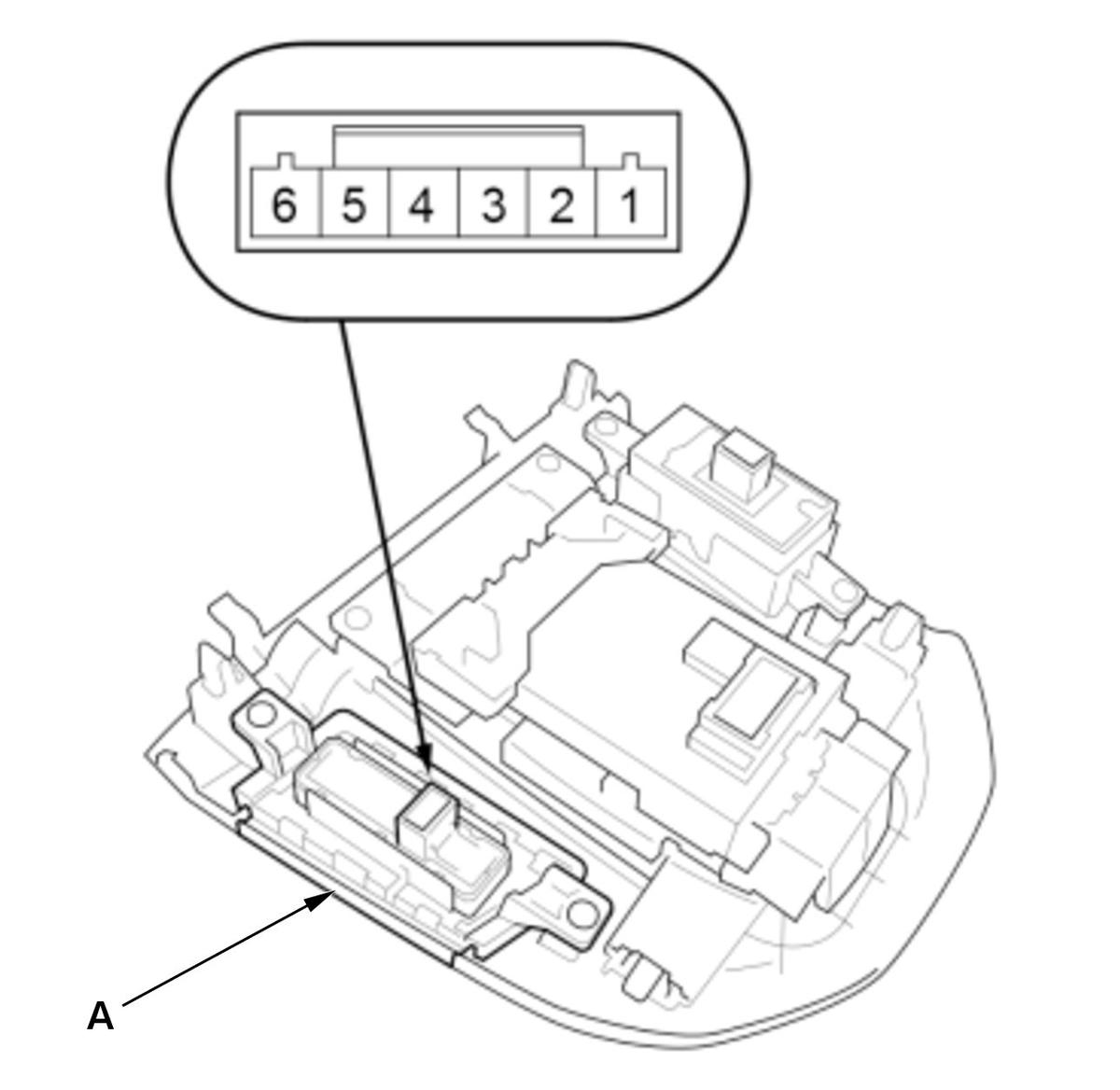

    2. If the result is not as specified, replace the ECON switch (A).
  2. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
