Wiper Assembly Removal, Installation, and Test: Test

WARNING: This page is about a different variant/trim than selected.

Rear Window

Rear Window Wiper Motor - Test

Courtesy of HONDA, U.S.A., INC.

1. Disconnect the connector.

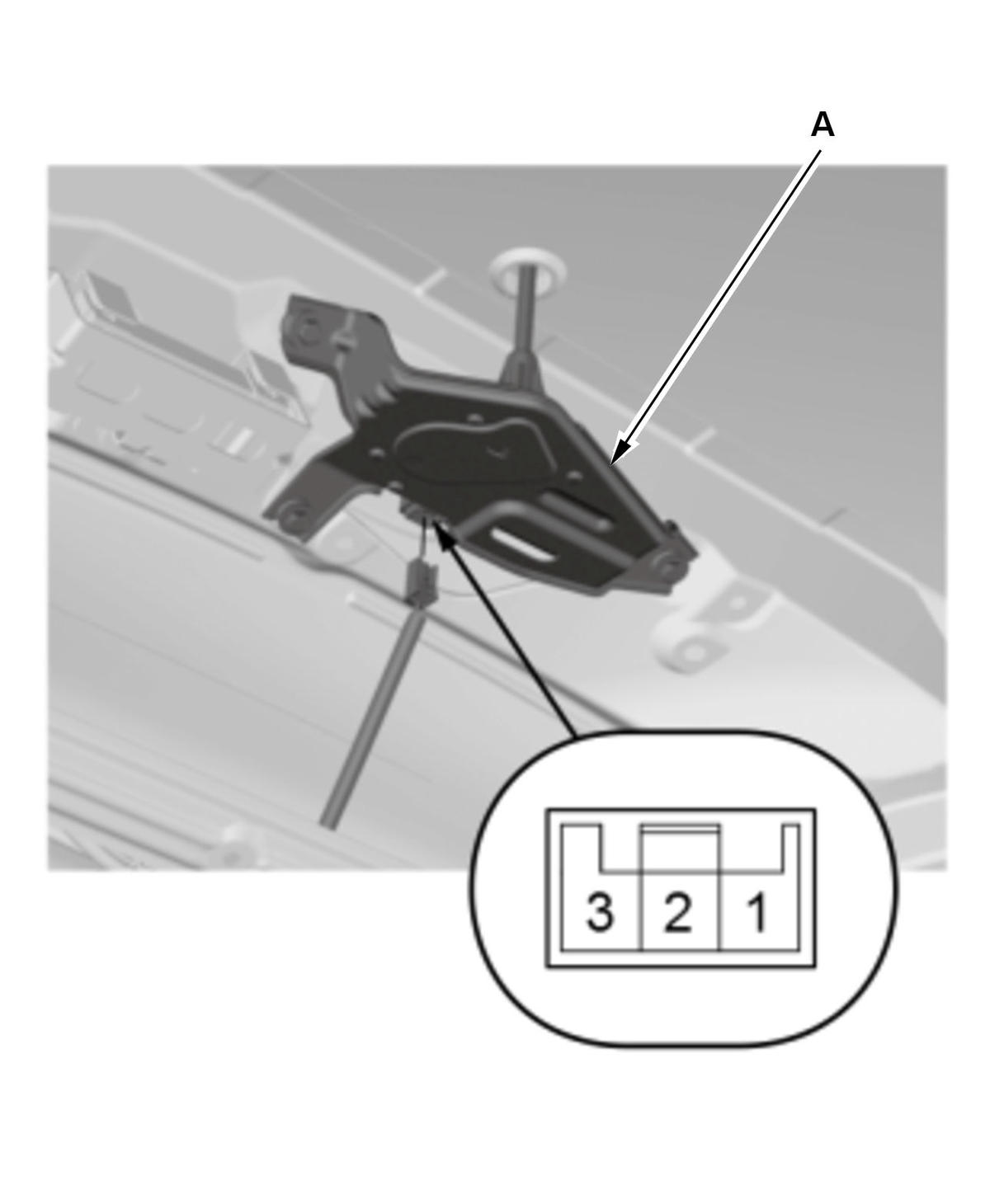

2. Test the rear window wiper motor by connecting 12 volt battery power to terminal No. 1 and ground to terminal No. 3 of the rear window wiper motor (A). The rear window wiper motor should run.

3. Connect an analog ohmmeter to terminals No. 2 and No. 3. The ohmmeter should indicate continuity and no continuity alternately. If the rear window wiper motor does not run or fails to run smoothly, or there is no pulse, replace the rear window wiper motor.
