Washer Assembly Removal, Installation, and Test: Test

WARNING: This page is about a different variant/trim than selected.

Windshield/Rear Window Washer Motor

Windshield/Rear Window Washer Motor - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

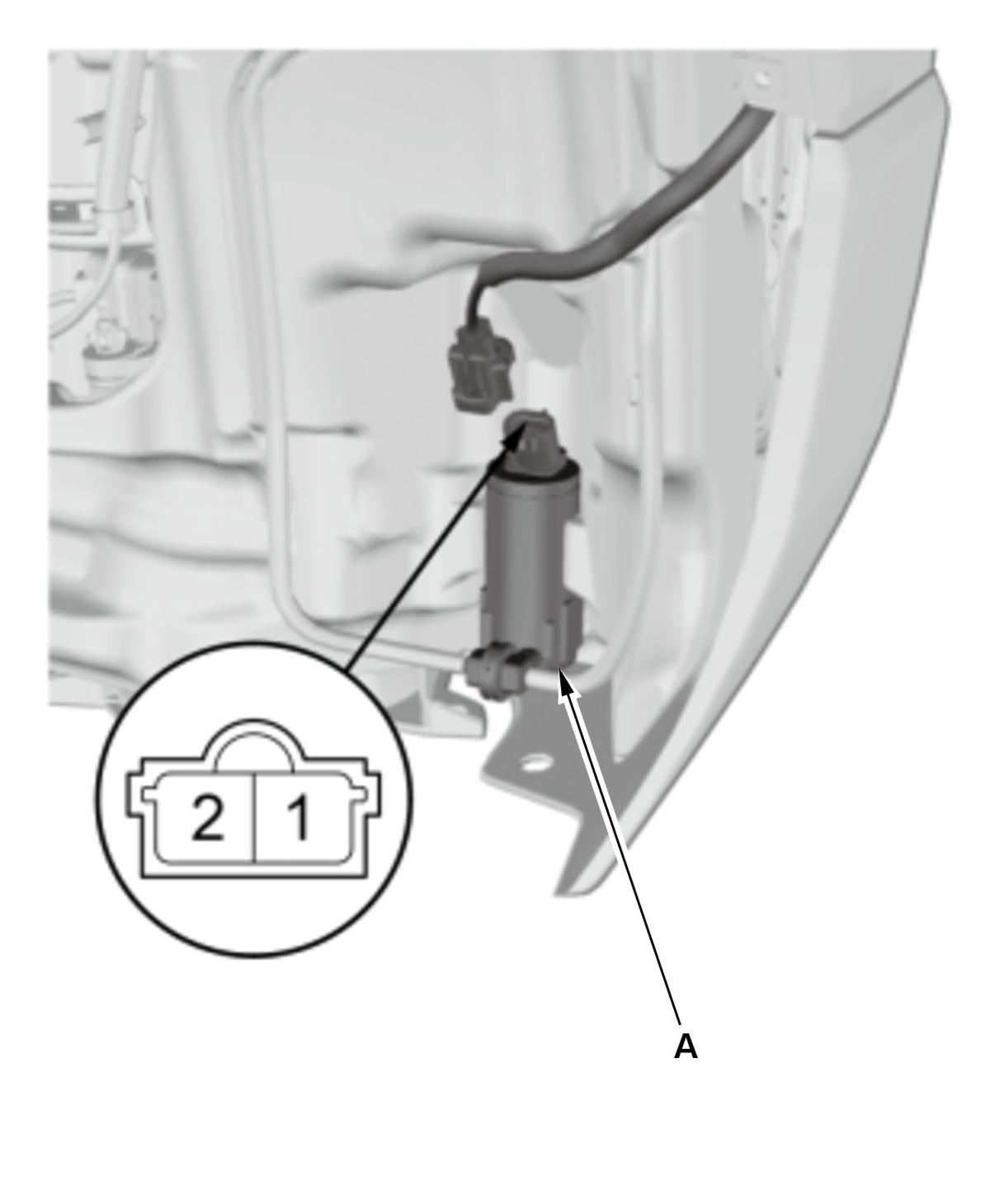

1. Disconnect the connector.

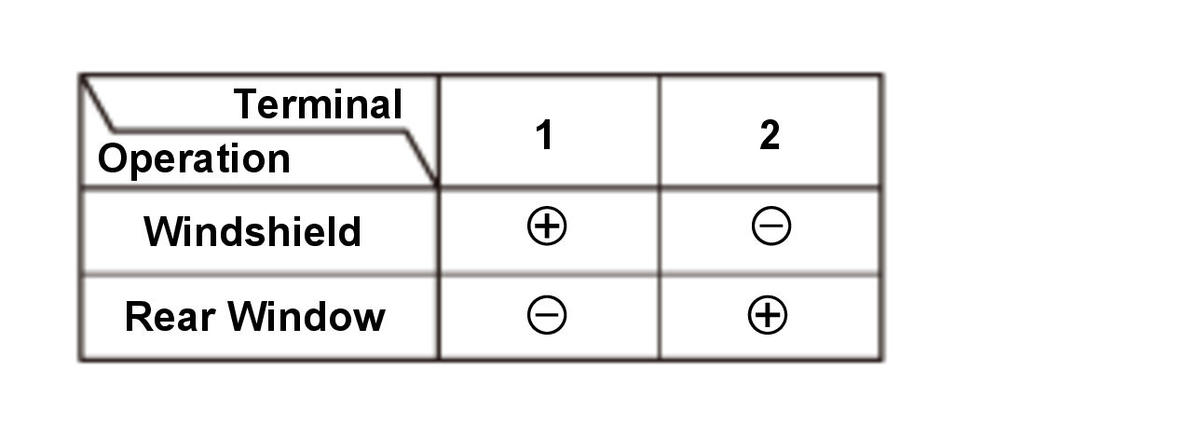

2. Check the washer motor operation by connecting 12 volt battery power and ground according to the table. The motor should run.

If the washer motor does not run or fails to run smoothly, replace the windshield/rear window washer motor (B).
If the washer motor runs smoothly, but little or no washer fluid is pumped, check for a disconnected or blocked washer hose, or a clogged washer motor outlet.
