Tailgate Outer Handle Switch Removal, Installation, and Test: Test

WARNING: This page is about a different variant/trim than selected.
  1. Rear License Trim - Remove
  2. Tailgate Outer Handle Switch - Test
    GHH378819GHH378820Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH378819GHH378820Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

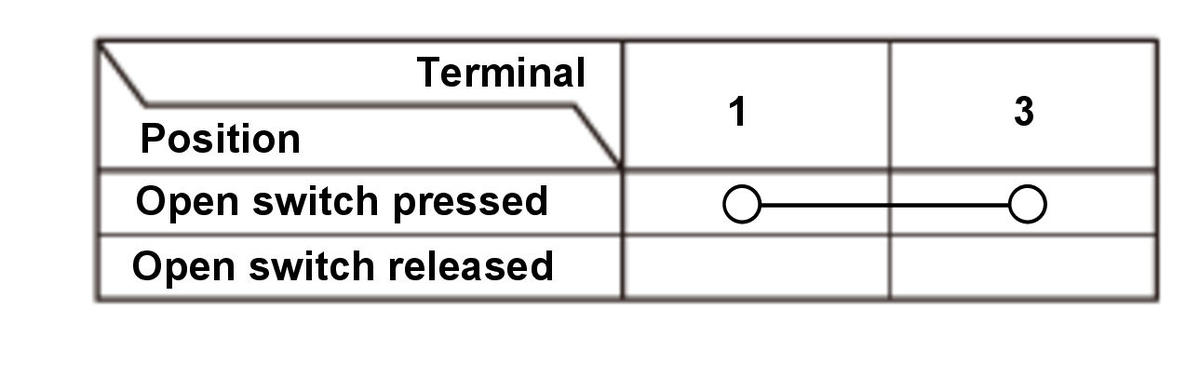

    		 1. Check for continuity between the terminals in each switch position according to the table.

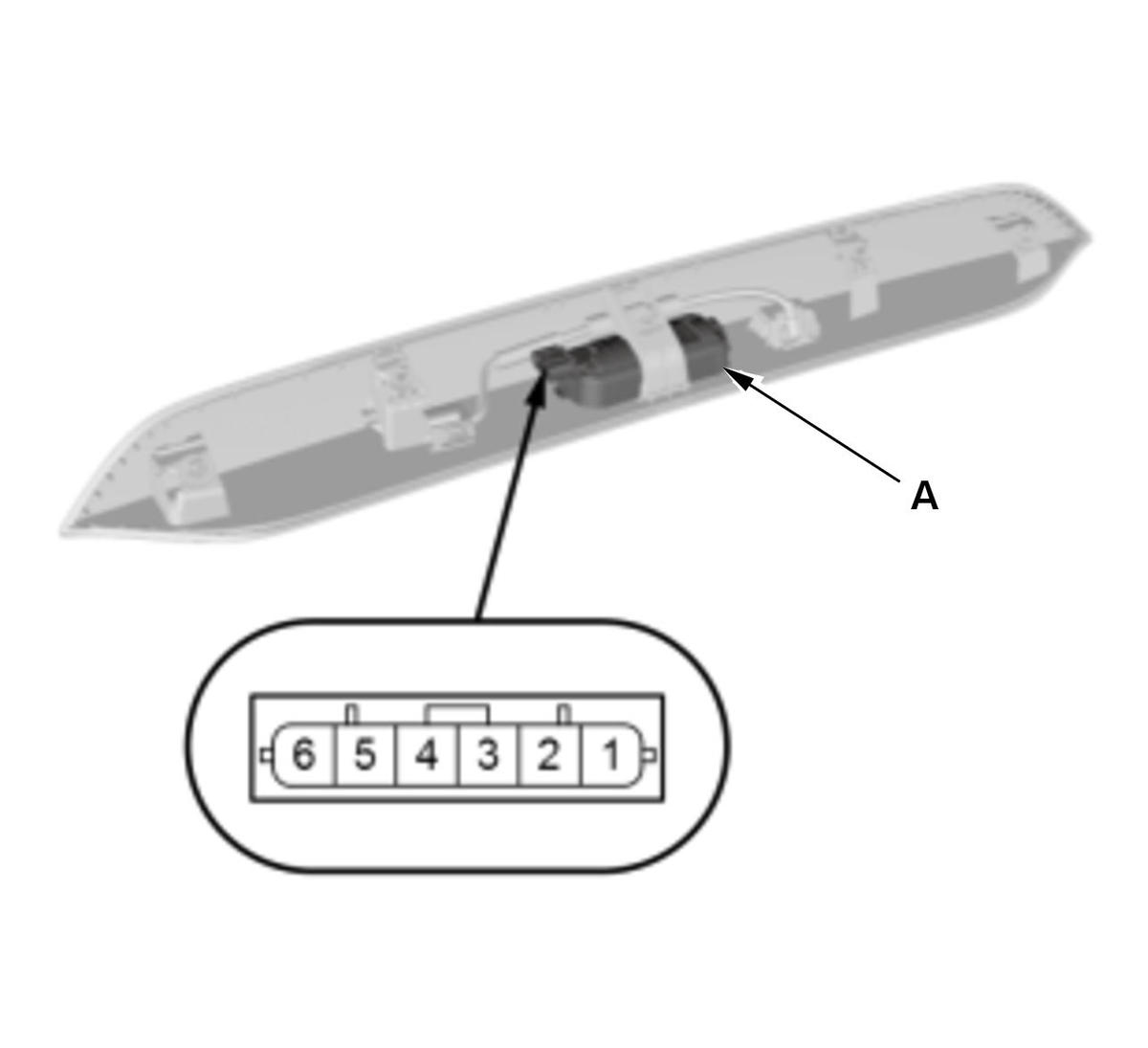

    2. If the continuity is not as specified, replace the license plate light (A)

    .
