Tailgate Lock Switch Removal, Installation, and Test: Test

WARNING: This page is about a different variant/trim than selected.
  1. Rear License Trim - Remove
  2. Tailgate Lock Switch - Test
    GHH378817GHH378818Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH378817GHH378818Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

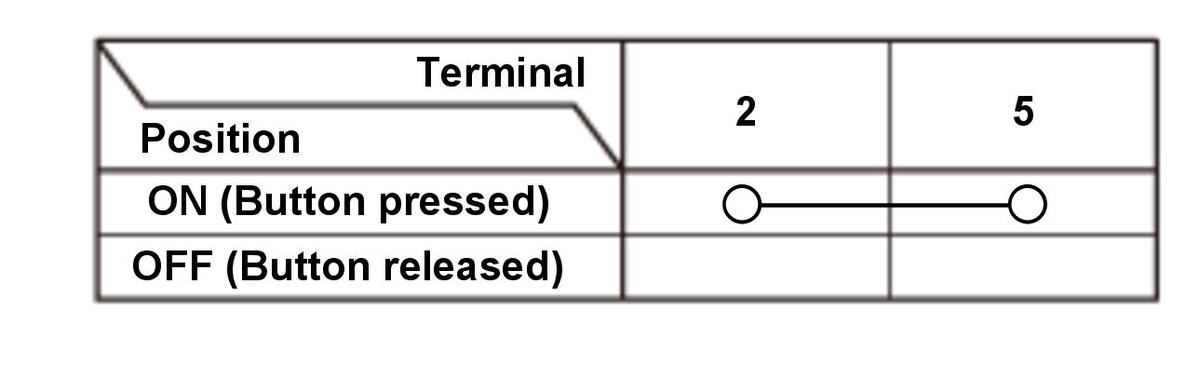

    		 1. Check for continuity between the terminals in each switch position according to the table.

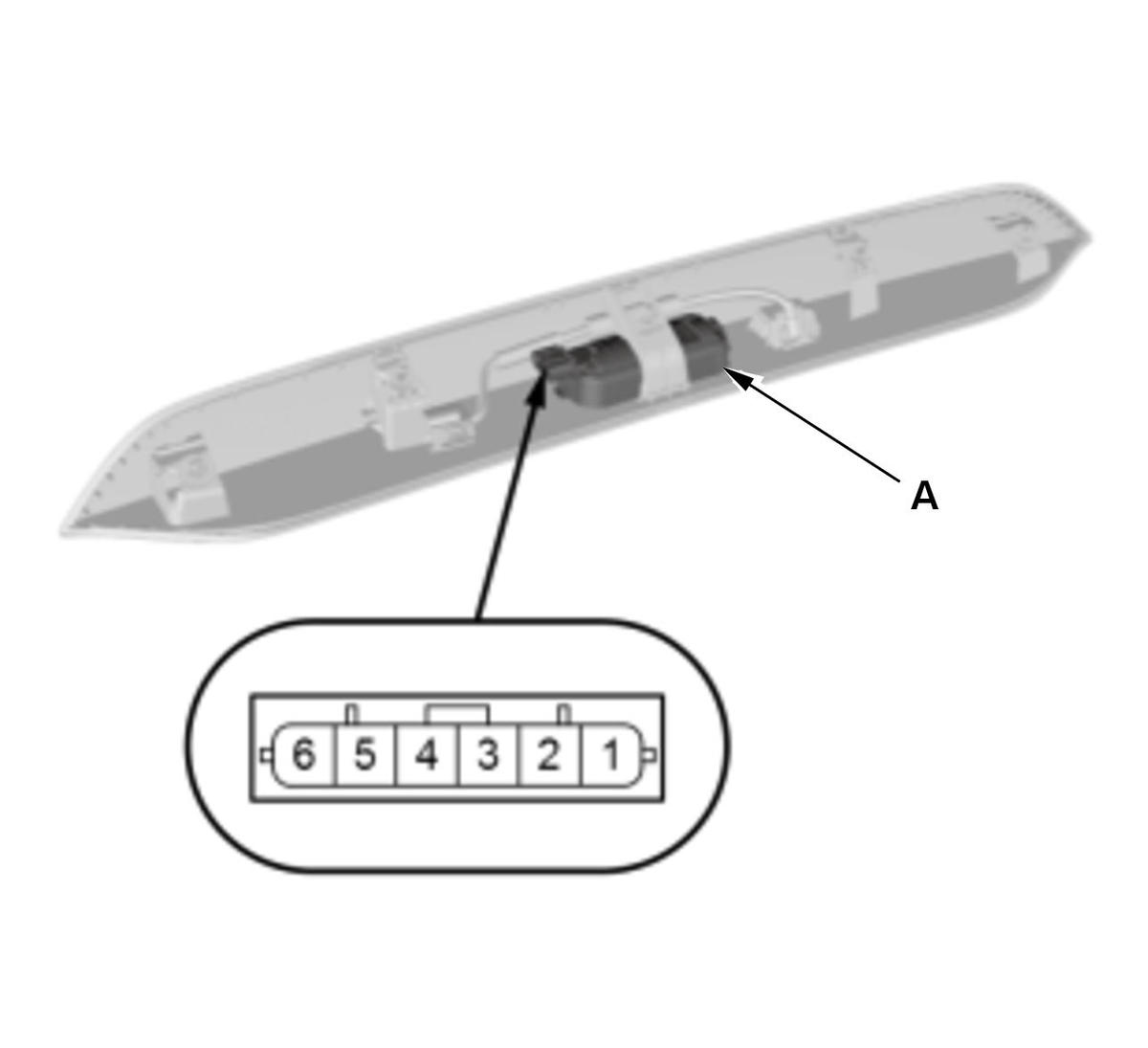

    2. If the continuity is not as specified, replace the license plate light (A)

    .
