Power Tailgate Inside Switch Removal, Installation, and Test: Test

WARNING: This page is about a different variant/trim than selected.

Power Tailgate Inside Switch - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

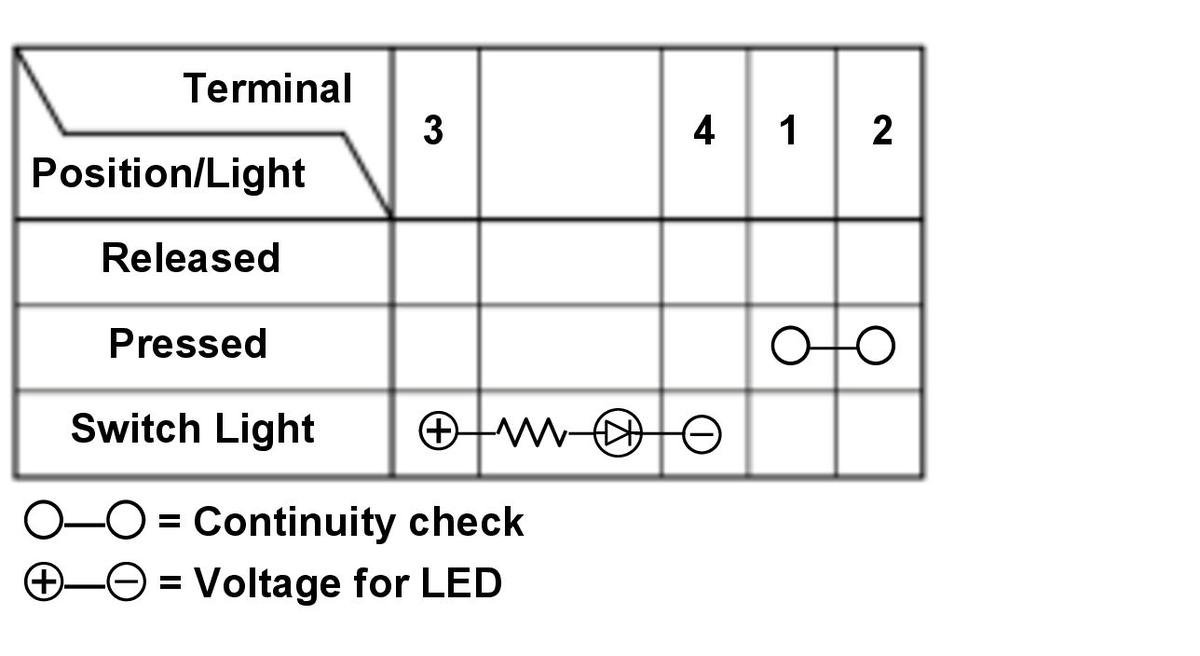

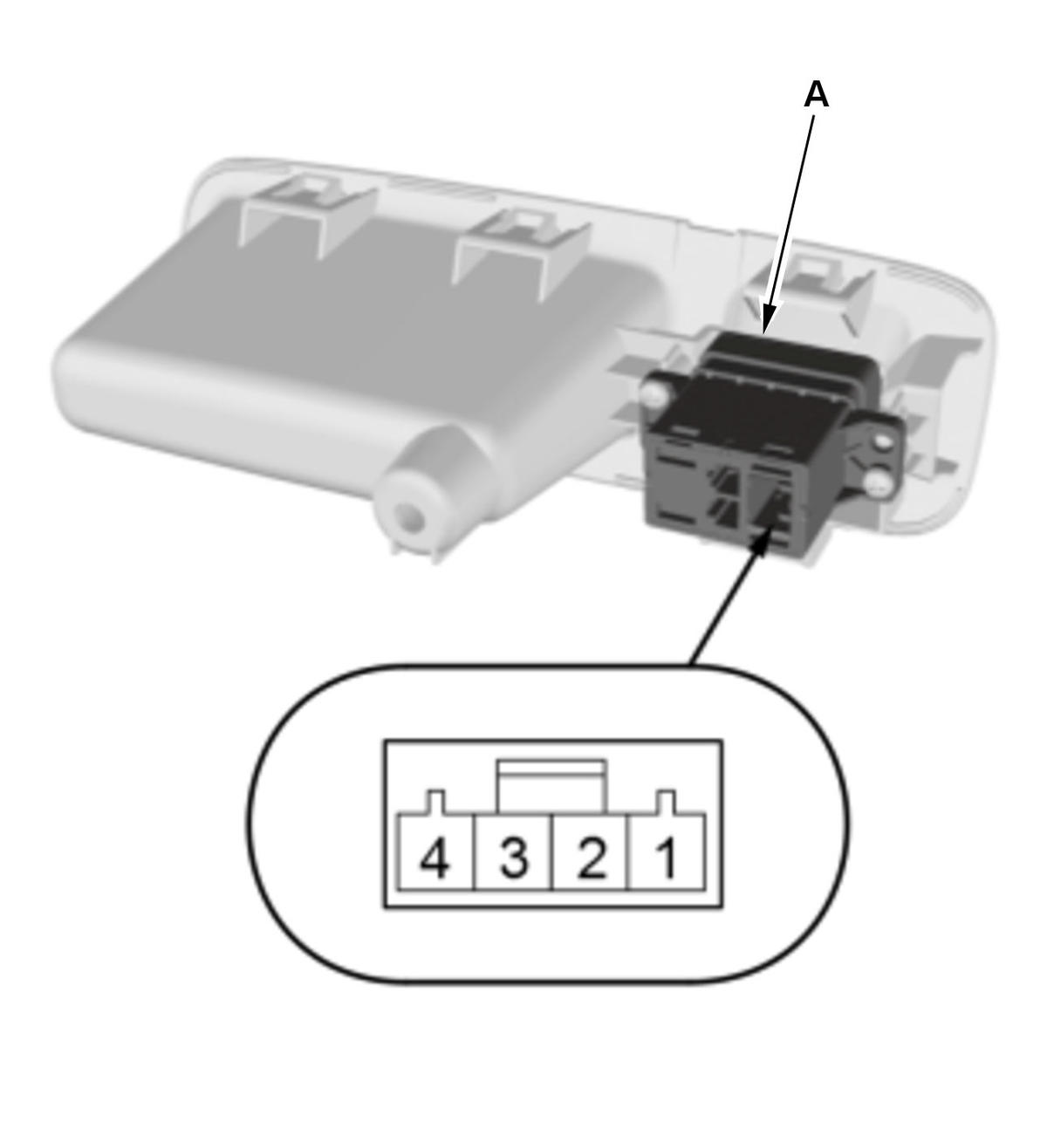

1. Check the power tailgate inside switch (A) for continuity and voltage according to the table.
NOTE:

When an LED is located between terminals, check if the LED lights up by connecting power and ground to the LED.
Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

2. If the continuity is not as specified, replace the power tailgate inside switch.
