Driver's Power Tailgate Switch Removal, Installation, and Test: Test

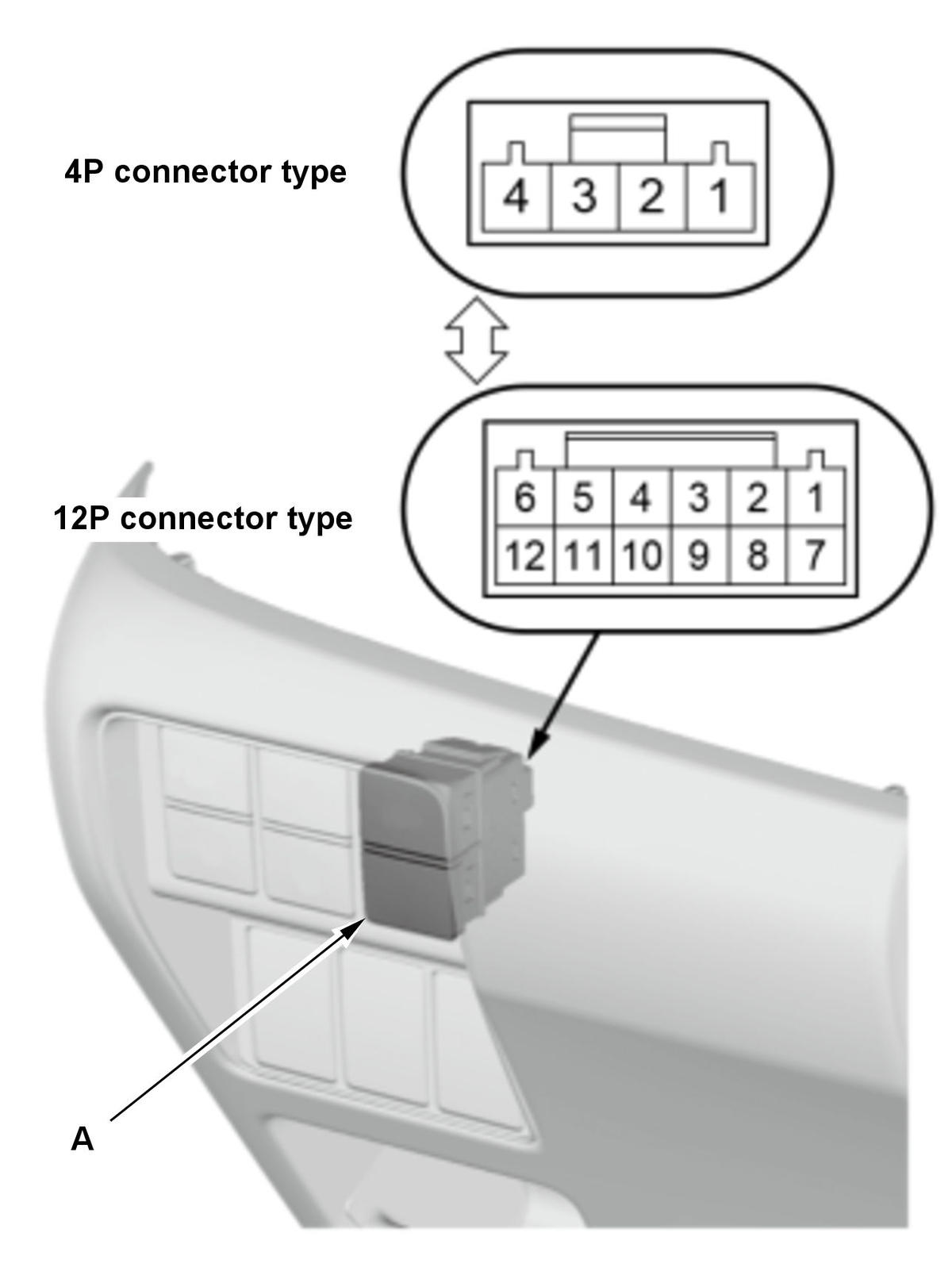

NOTE:  The switch location of the driver's power tailgate switch is different depending on the model.

1. Driver's Power Tailgate Switch - Test

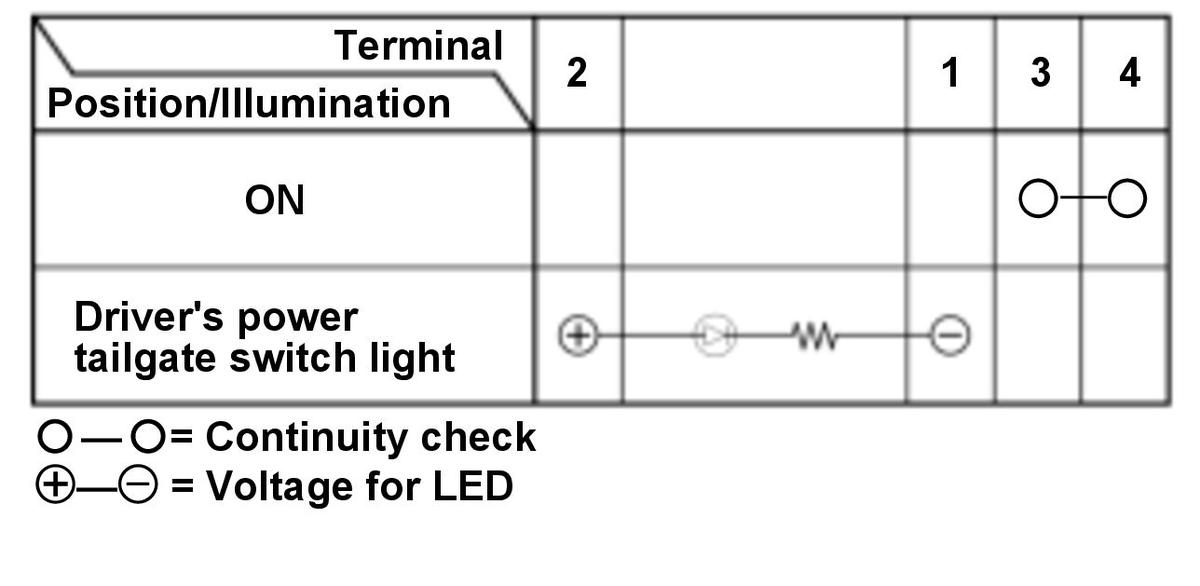

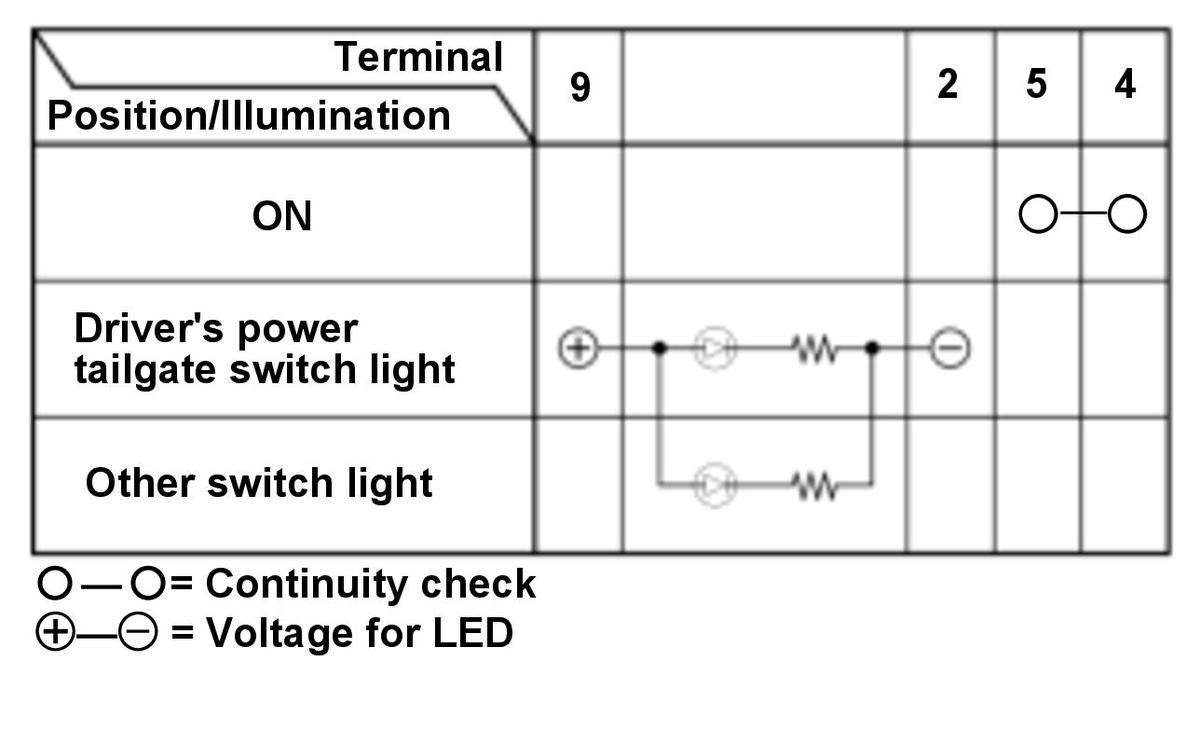

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC. 12P connector type  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC. 4P connector type  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

   1. Check the driver's power tailgate switch (A) for continuity and voltage according to the table. NOTE:  When an LED is located between terminals, check if the LED lights up by connecting power and ground to the LED. Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse). 2. If the continuity is not as specified, replace the driver's power tailgate switch.
