Side Windshield Trim Removal and Installation: Removal

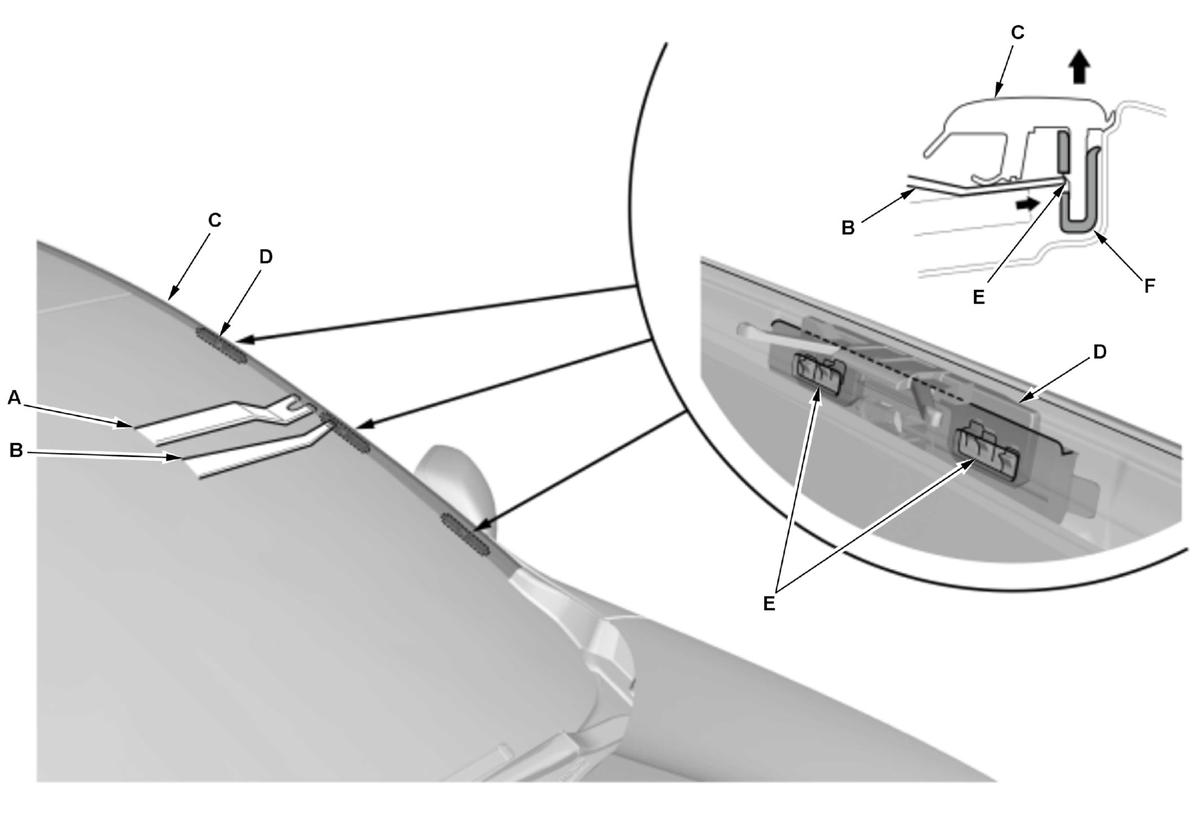

1. Insert a wide-tip trim tool (A) and a small-tip trim tool (B) between the windshield side trim (C) and the windshield so it contacts the clips (D).

Courtesy of HONDA, U.S.A., INC.

2. Pull up the windshield side trim with the wide-tip trim tool and push the hooks (E) on the clips with the small-tip trim tool to remove the clips from the retainers (F) as shown.

NOTE:  Do not break the hooks with the trim tool for removal.

Without Roof Rail

3. Release the clips (A, B).

Courtesy of HONDA, U.S.A., INC.

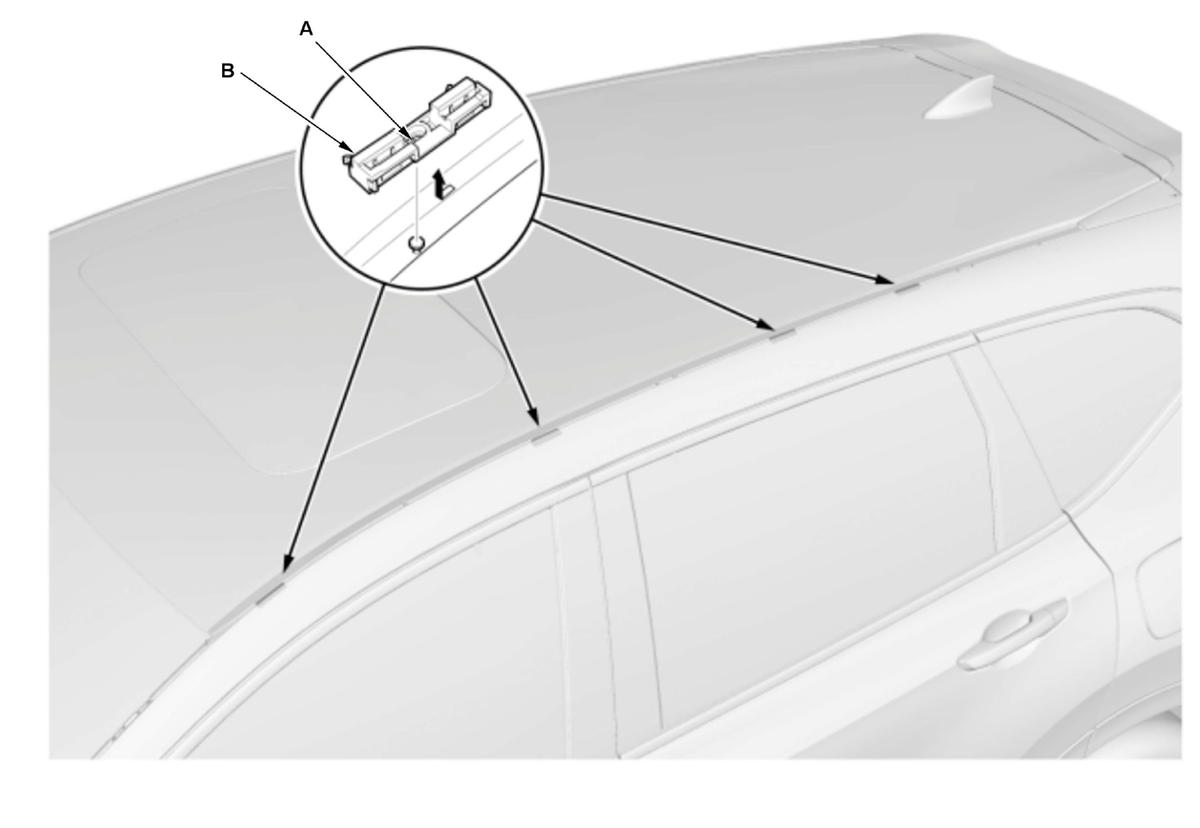

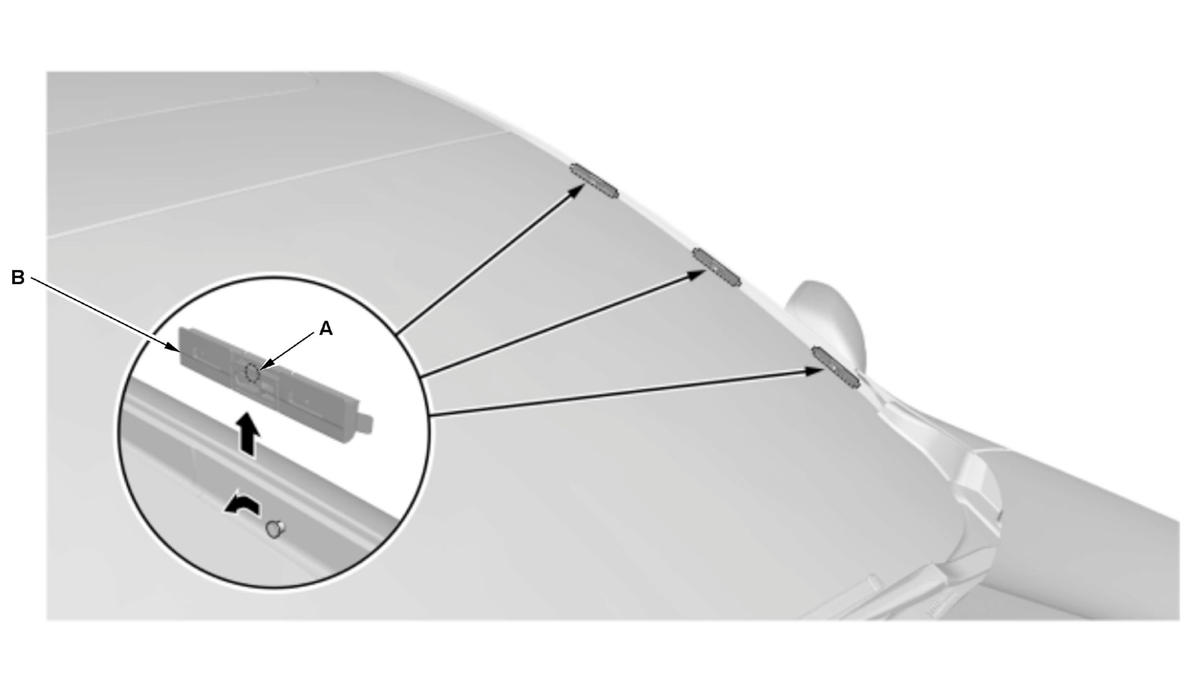

1. Release the hooks (A) and remove the retainers (B) as shown.

Courtesy of HONDA, U.S.A., INC.

Without Roof Rail

Courtesy of HONDA, U.S.A., INC.
