Side Windshield Trim Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Retainer - Install

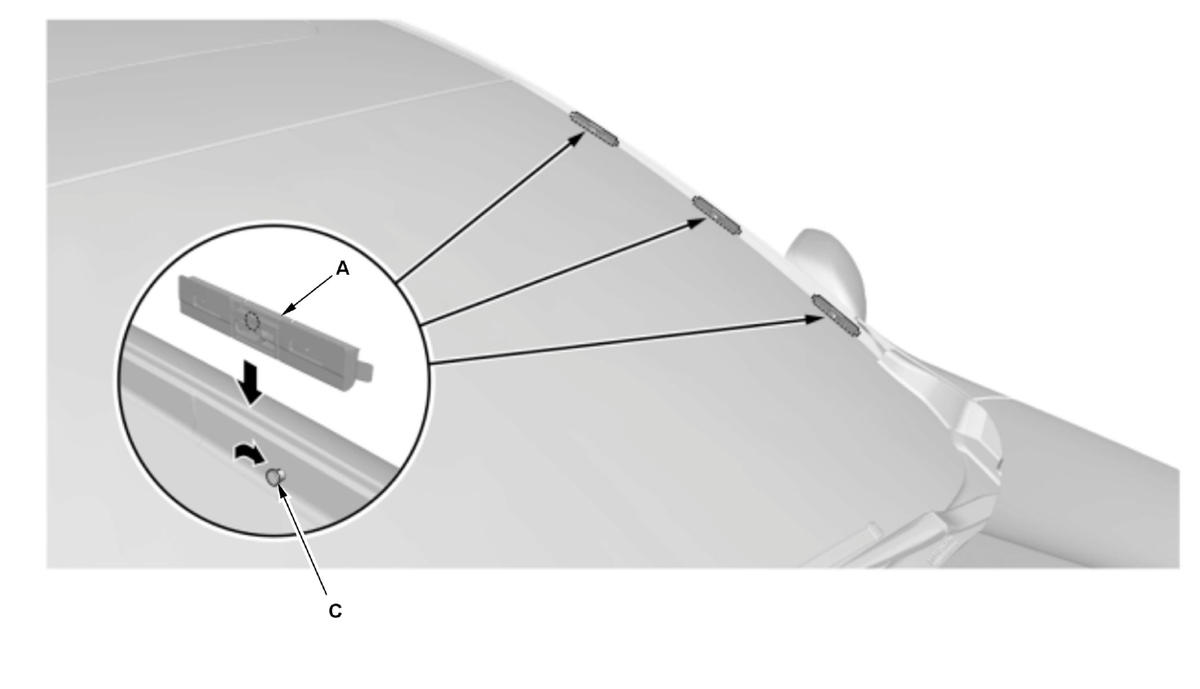

1. Install the retainers (A, B) to the pins (C).

Courtesy of HONDA, U.S.A., INC.

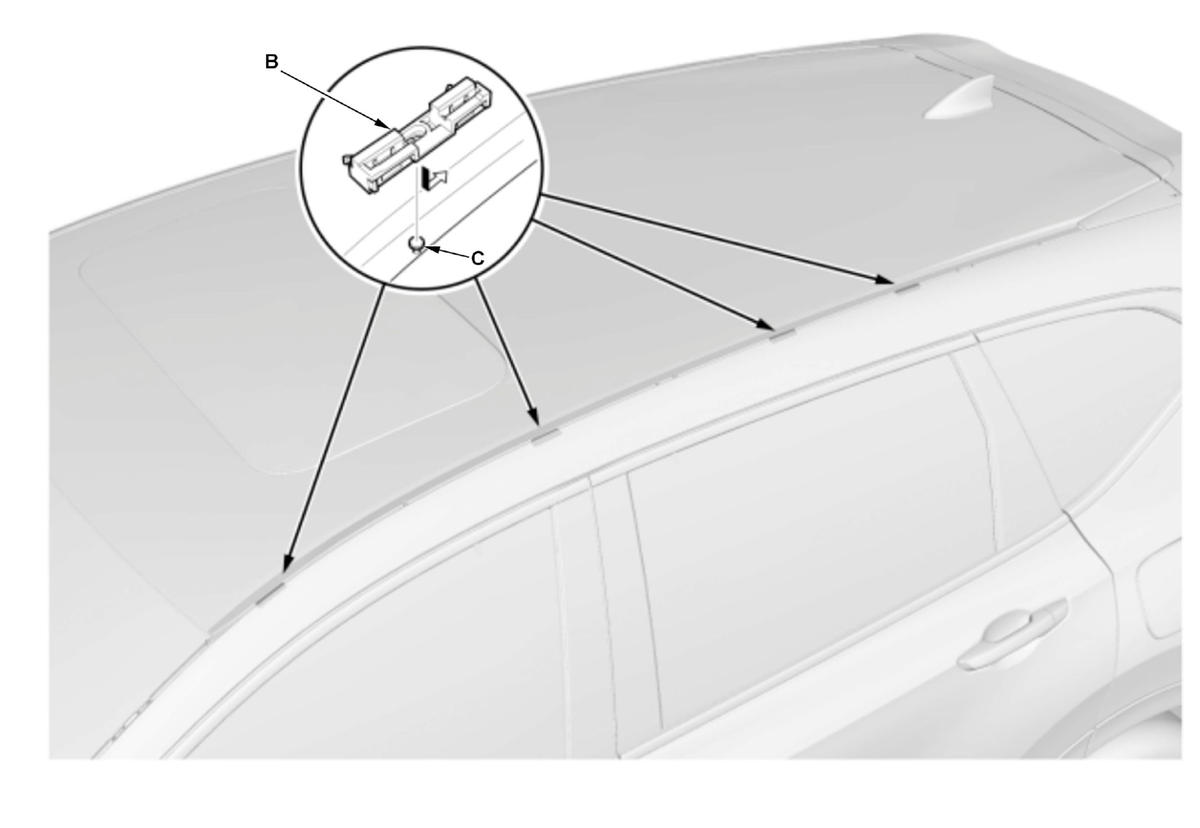

Without Roof Rail

Courtesy of HONDA, U.S.A., INC.
Windshield Side Trim - Install

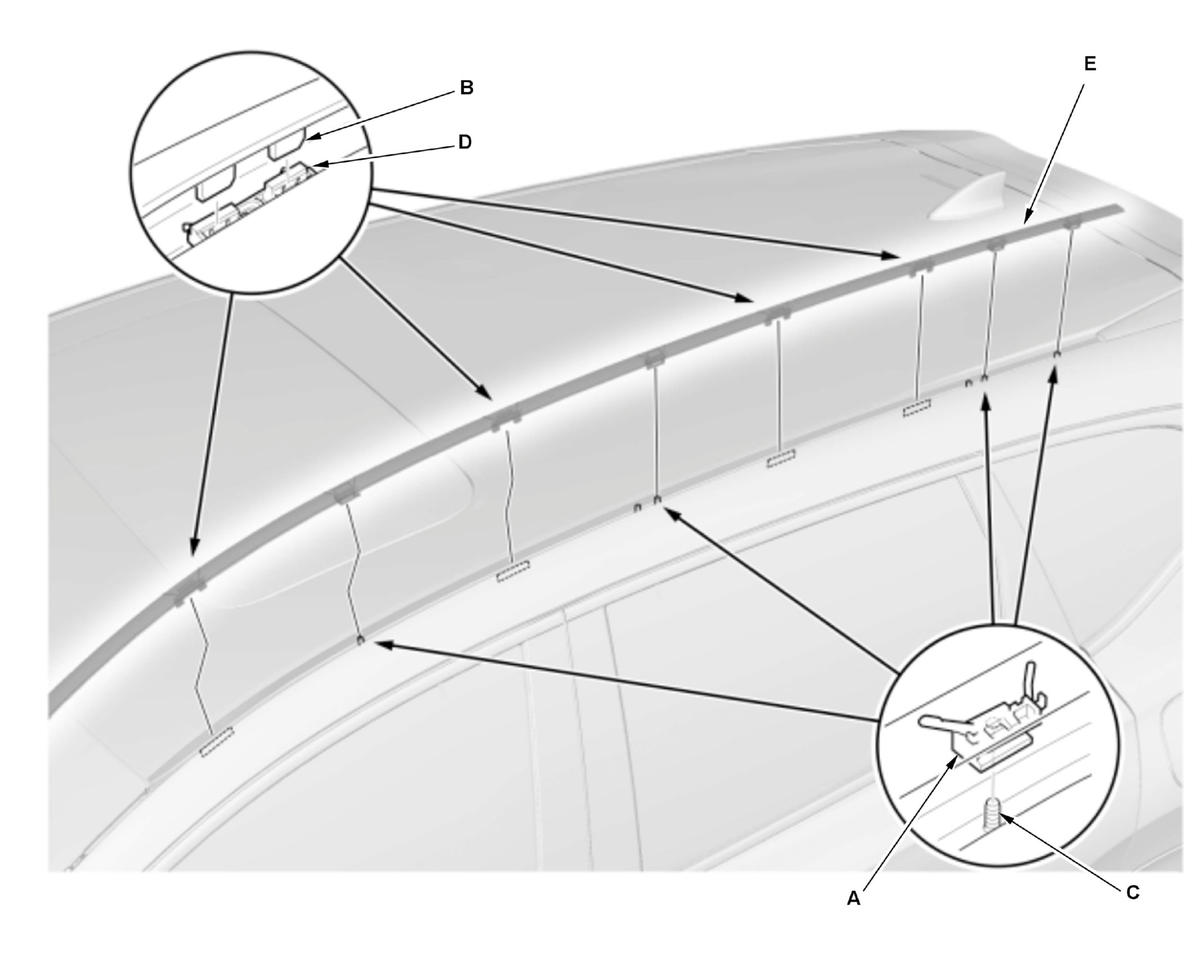

1. Without roof rail : From the rear to the front, fit the clips (A, B) to the stud bolts (C) and the retainers (D), then push on the molding until they snap into place.

Fig 1: Windshield Side Trim Installation Sequence
Courtesy of HONDA, U.S.A., INC.

Without Roof Rail

Courtesy of HONDA, U.S.A., INC.

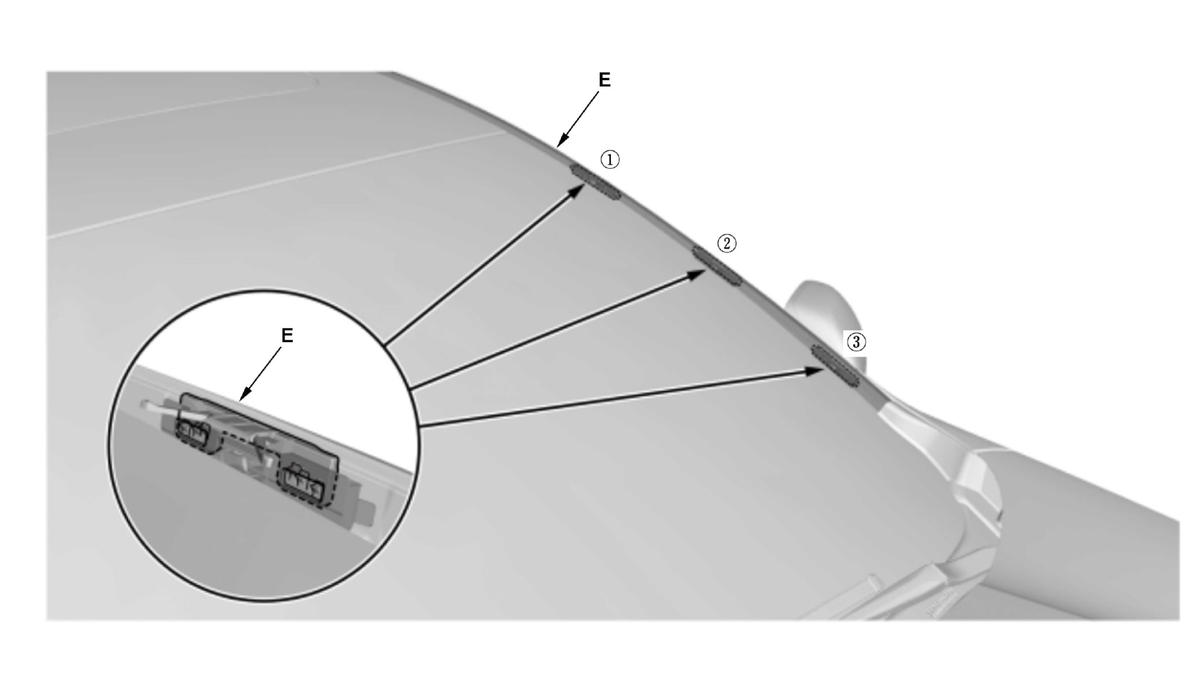

2. Install the windshield side trim (E) in the sequence shown.
Side Cowl Cover - Install
