Exploded View: Procedure

WARNING: This page is about a different variant/trim than selected.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

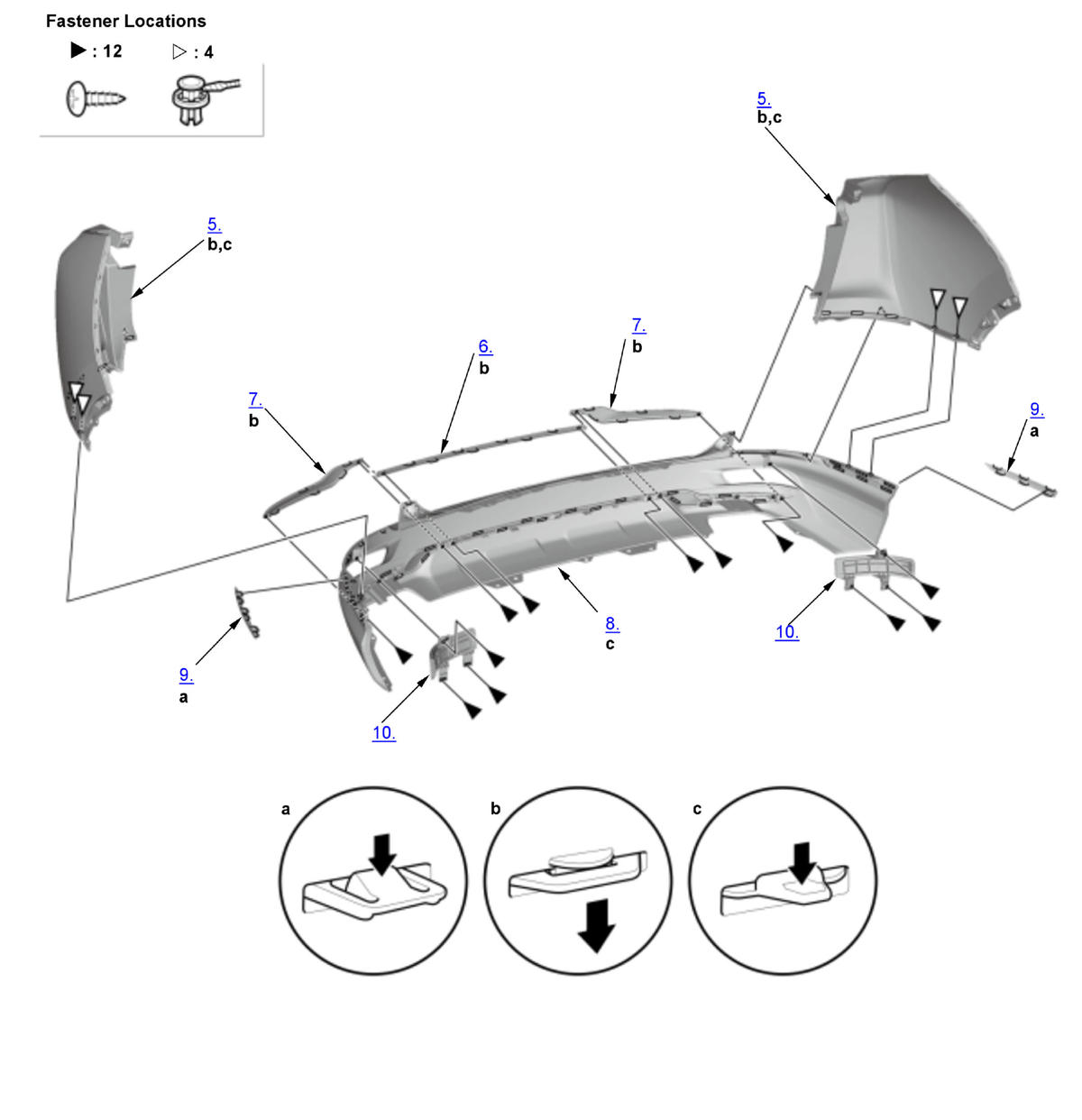

Fig 1: Exploded View Of Rear Bumper Components
GHH378733Courtesy of HONDA, U.S.A., INC.
  1. Rear Bumper - Remove
  2. Hands Free Access Power Tailgate Control Unit/Sensor - Remove
  3. Rear Center Sensor - Remove
  4. Rear Corner Sensor - Remove
  5. Rear Bumper Side Face - Remove
  6. Rear Bumper Center Lower Molding - Remove
  7. Rear Bumper Side Lower Molding - Remove
  8. Rear Bumper Lower Face - Remove
  9. Rear Bumper Side Molding - Remove
  10. Rear Bumper Reflector - Remove
  11. All Disassembled Parts - Reassemble
    1. Reassemble the parts in the reverse order of disassembly.
