Exploded View: Procedure

WARNING: This page is about a different variant/trim than selected.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

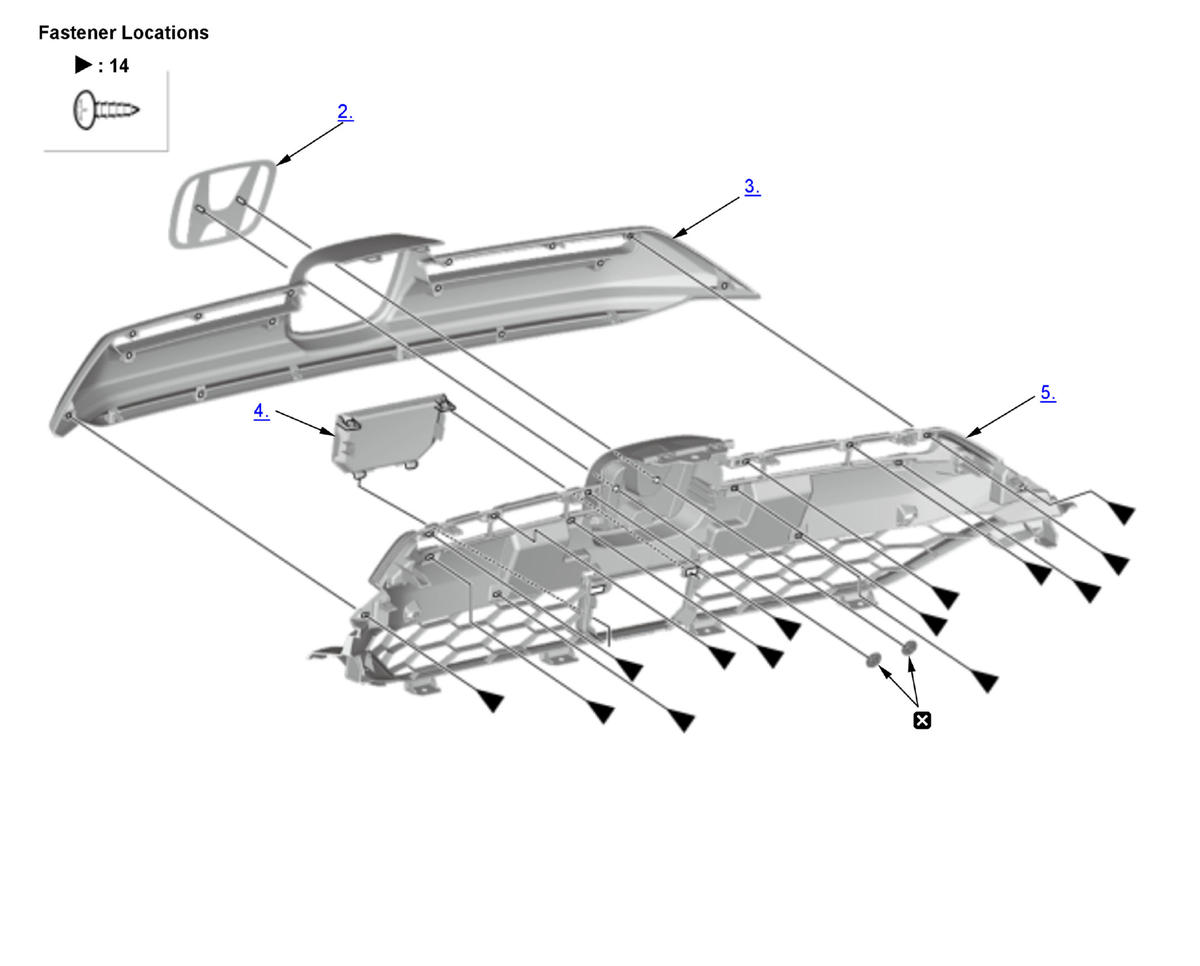

Fig 1: Exploded View Of Front Grille Components
GHH378732Courtesy of HONDA, U.S.A., INC.
Replace
  1. Front Grille - Remove
  2. Emblem - Remove
  3. Front Grille Molding - Remove
  4. Front Grille Radar Cover - Remove
  5. Front Grille Base - Remove
  6. All Disassembled Parts - Reassemble
    1. Reassemble the parts in the reverse order of disassembly.
