Exploded View: Procedure

WARNING: This page is about a different variant/trim than selected.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

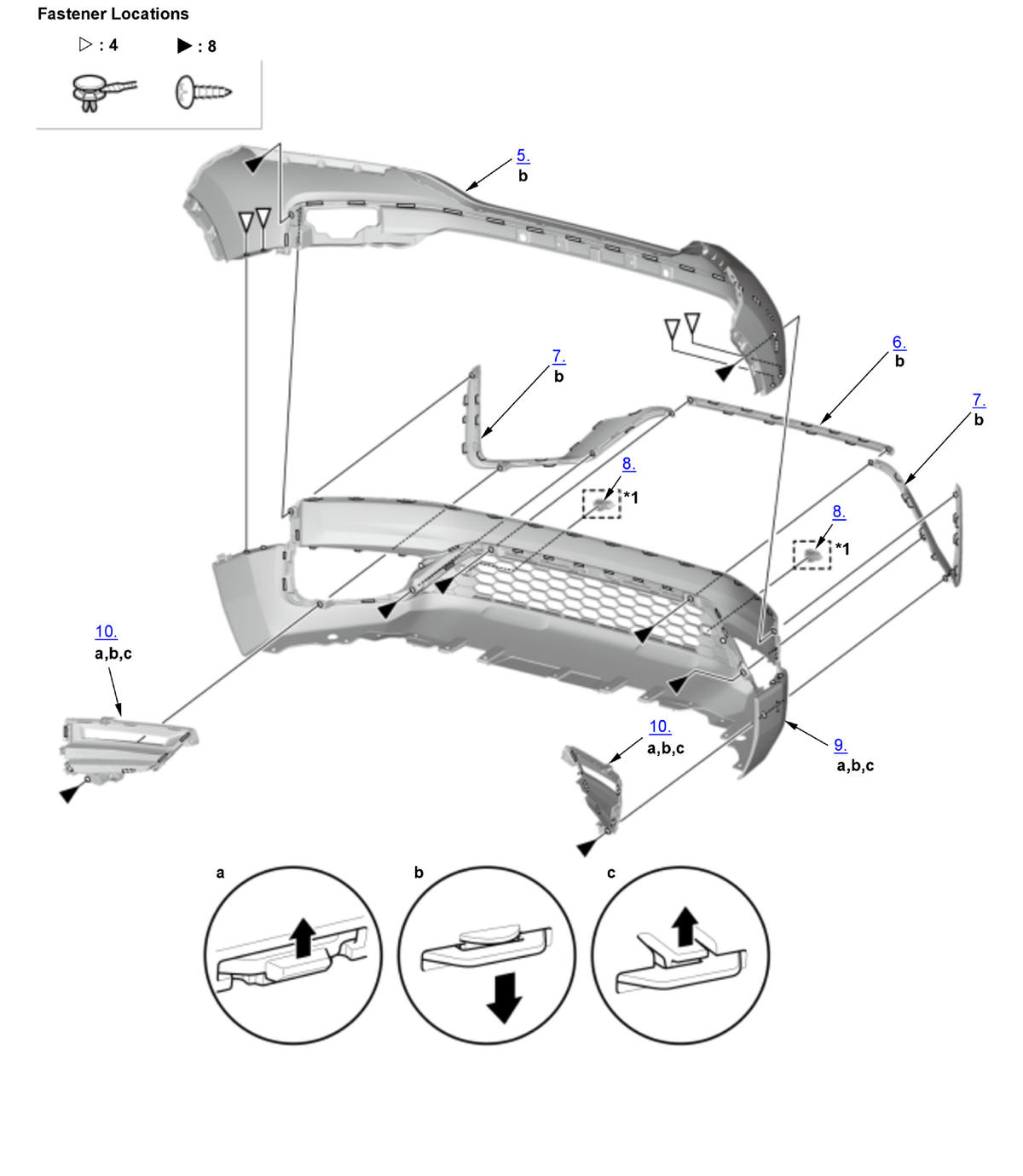

Fig 1: Exploded View Of Front Bumper Components
GHH378731Courtesy of HONDA, U.S.A., INC.
Detailed information, notes, and precautions
*1 Without front corner sensor
  1. Front Bumper - Remove
  2. Front Fog Light - Remove
  3. Front Center Sensor - Remove
  4. Front Corner Sensor - Remove
  5. Front Bumper Face - Remove
  6. Front Bumper Center Lower Molding - Remove
  7. Front Bumper Side Lower Molding - Remove
  8. Front Bumper Parking Sensor Cover - Remove
  9. Front Bumper Lower Face - Remove
  10. Front Bumper Fog Covers - Remove
  11. All Disassembled Parts - Reassemble
    1. Reassemble the parts in the reverse order of disassembly.
