Steering Wheel Removal and Installation: Installation: Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

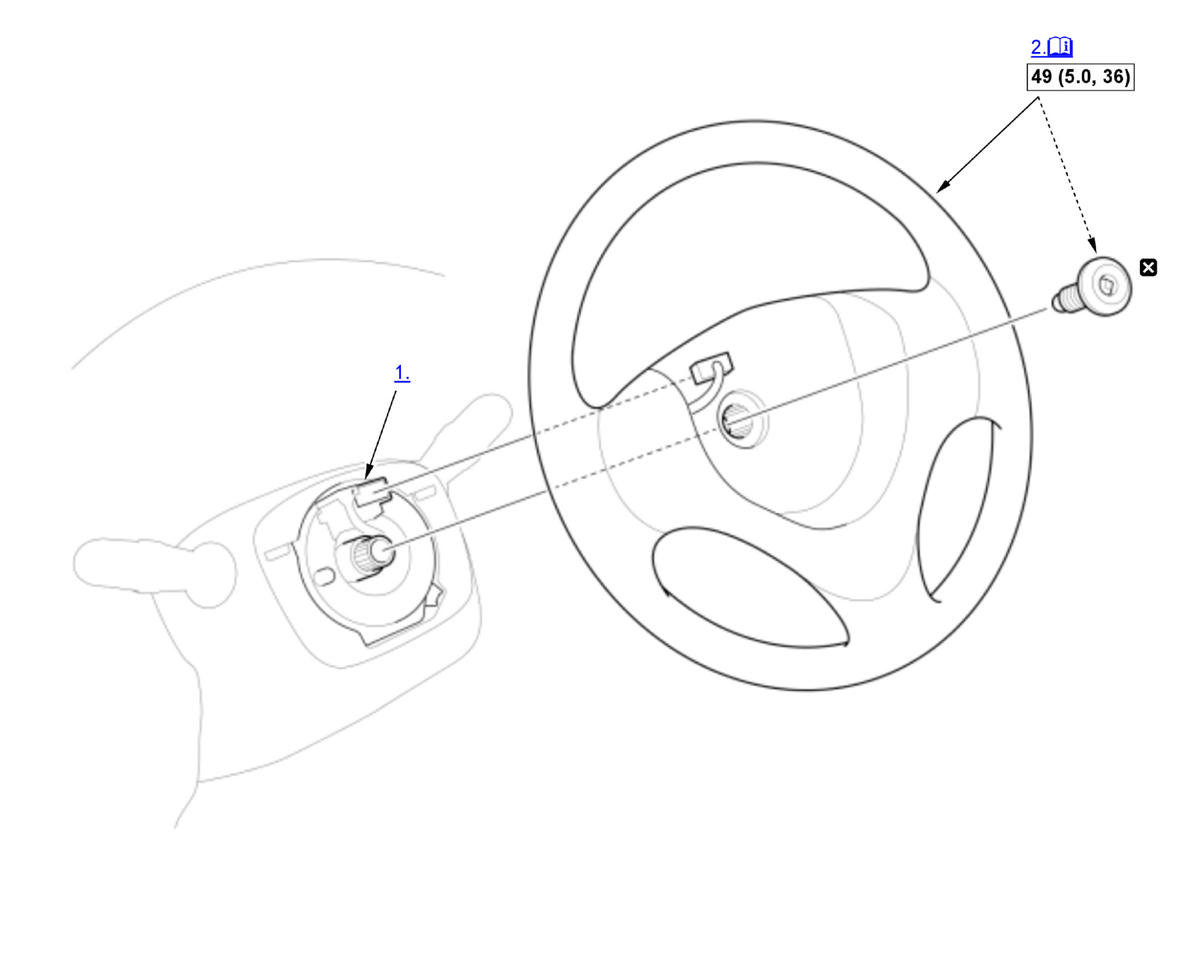

Fig 1: Exploded View Of Steering Wheel Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
	Replace

Cable Reel - Align

Steering Wheel - Install

Courtesy of HONDA, U.S.A., INC.

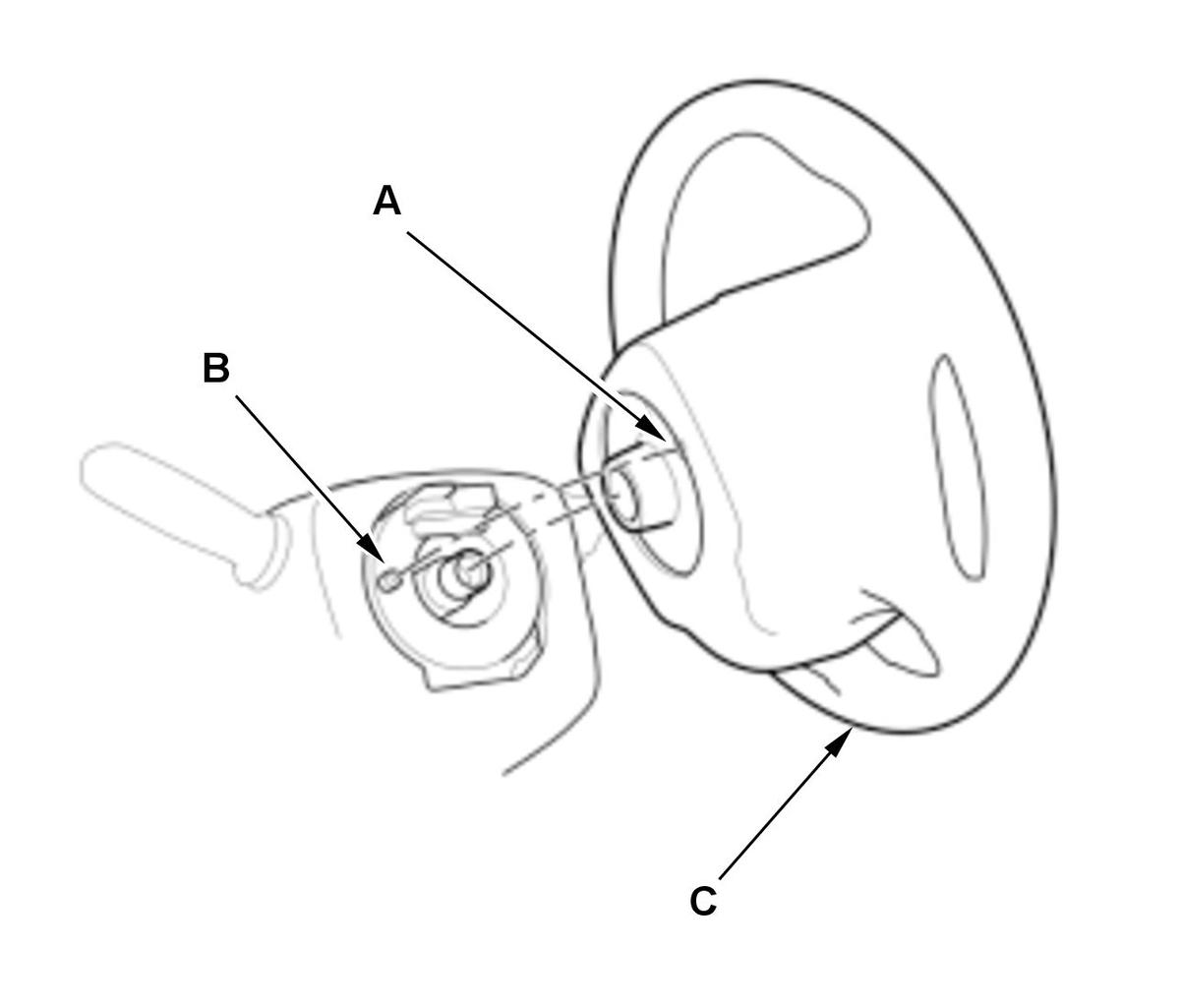

1. Position the steering wheel hub (A) so that it engages the pin (B) of the cable reel.

2. Install the steering wheel (C) onto the steering column shaft.

NOTE: Do not tap on the steering wheel or the steering column shaft when installing the steering wheel.

Courtesy of HONDA, U.S.A., INC.

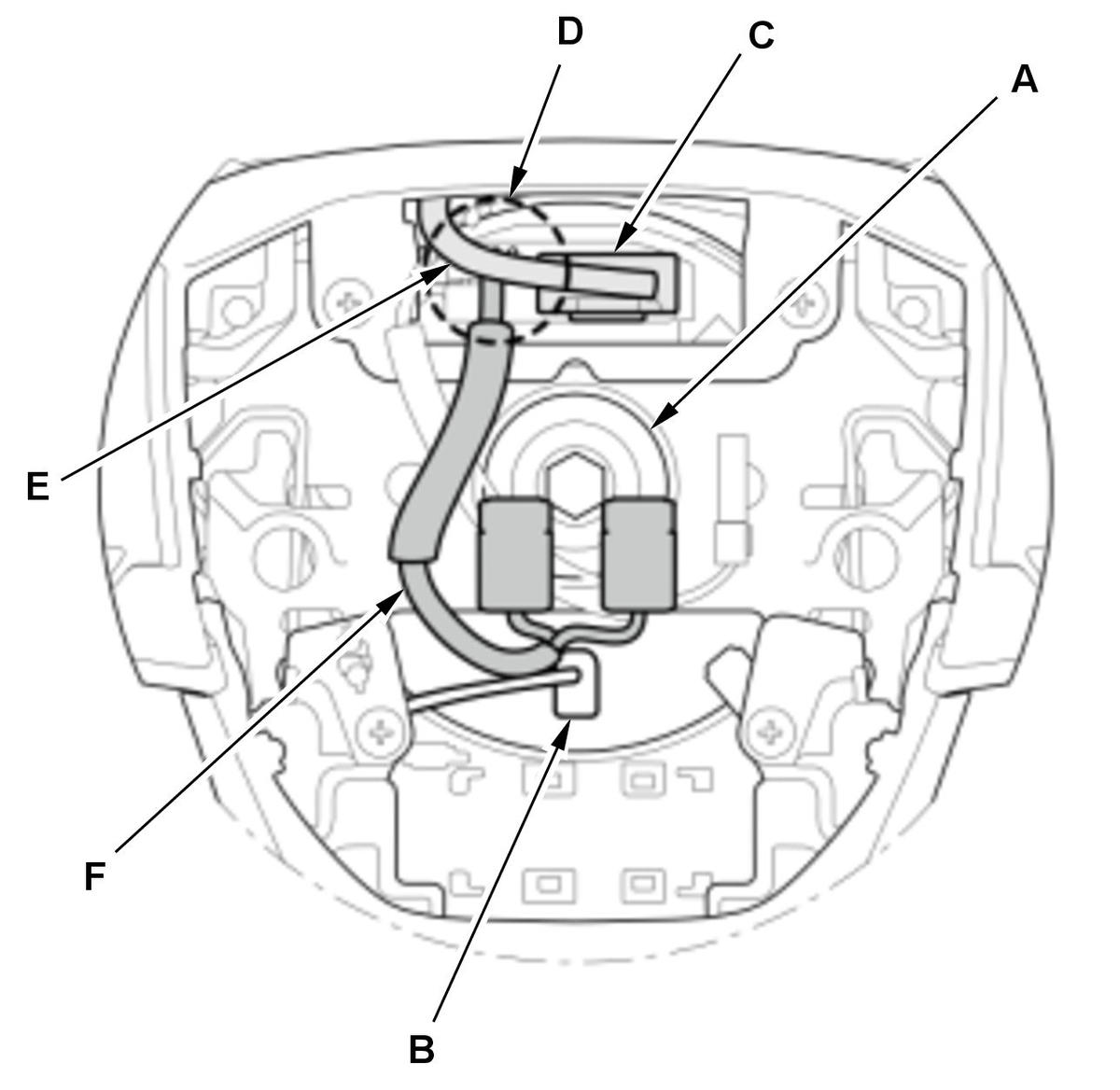

3. Install a new steering wheel bolt (A), and tighten it to the specified torque.

NOTE: Install the steering wheel bolt and tighten it within 5 minutes using the specified tightening torque.

4. With heated steering wheel: Connect the connector (B).

5. Connect the connector (C).

6. At point (D), make sure that the cable reel subharness (E) is routed above the SRS harness (F).

Driver's Airbag - Install
12 Volt Battery Terminal - Connect

Steering Wheel Spoke Angle - Check

1. Check the steering wheel spoke angle.

2. With the front wheels straight ahead, make sure the steering wheel is centered and the turning revolutions from center to full lock (left and right) is equal. If not, check the installation of the steering wheel and the engagement of the joint/pinion shaft splines.

VSA Sensor Neutral Position - Memorize
