Steering Column Removal and Installation: Removal: Procedure

WARNING: This page is about a different variant/trim than selected.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

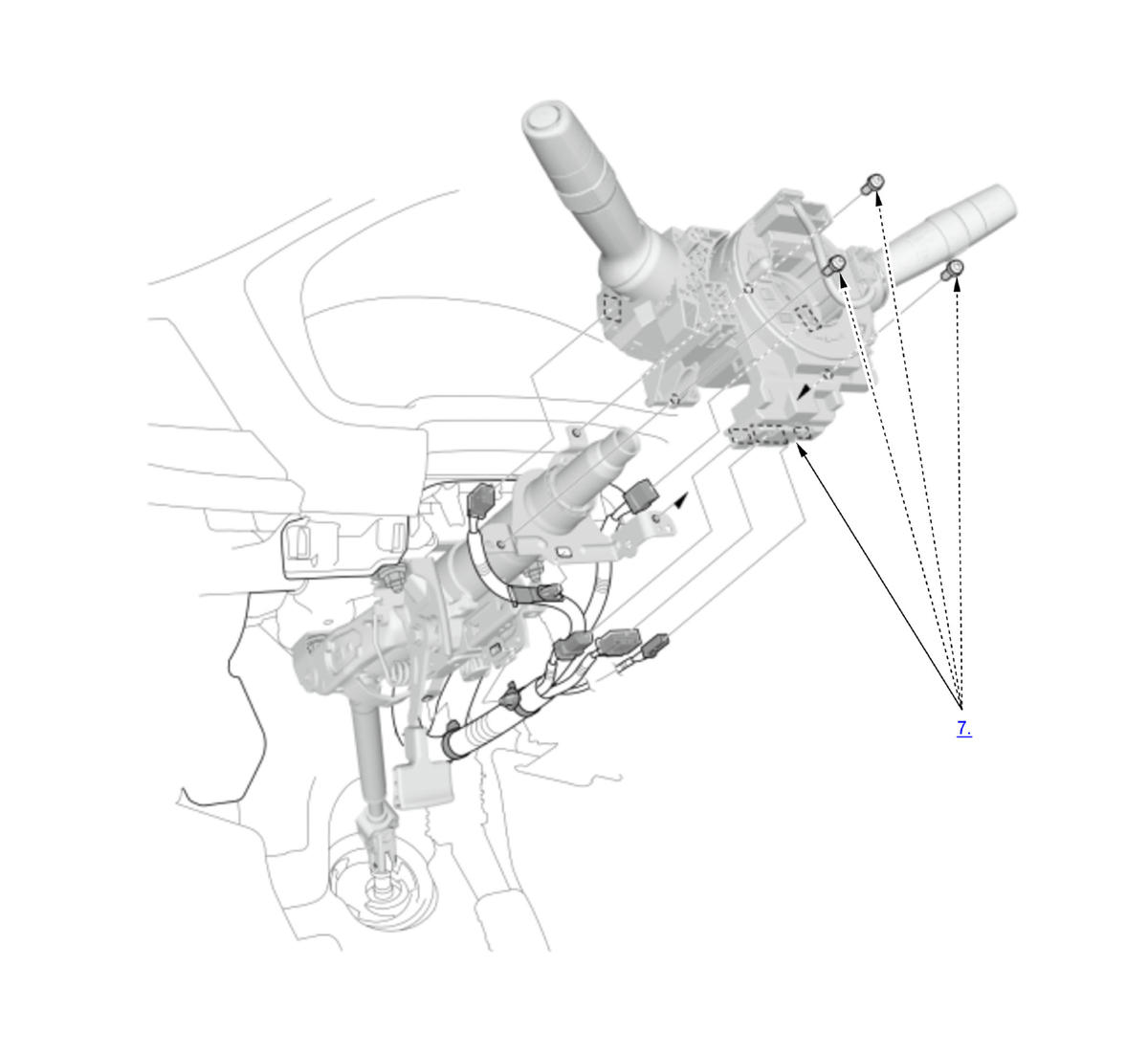

Fig 1: Exploded View Of Steering Column Components (1 Of 2)
GHH381181Courtesy of HONDA, U.S.A., INC.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

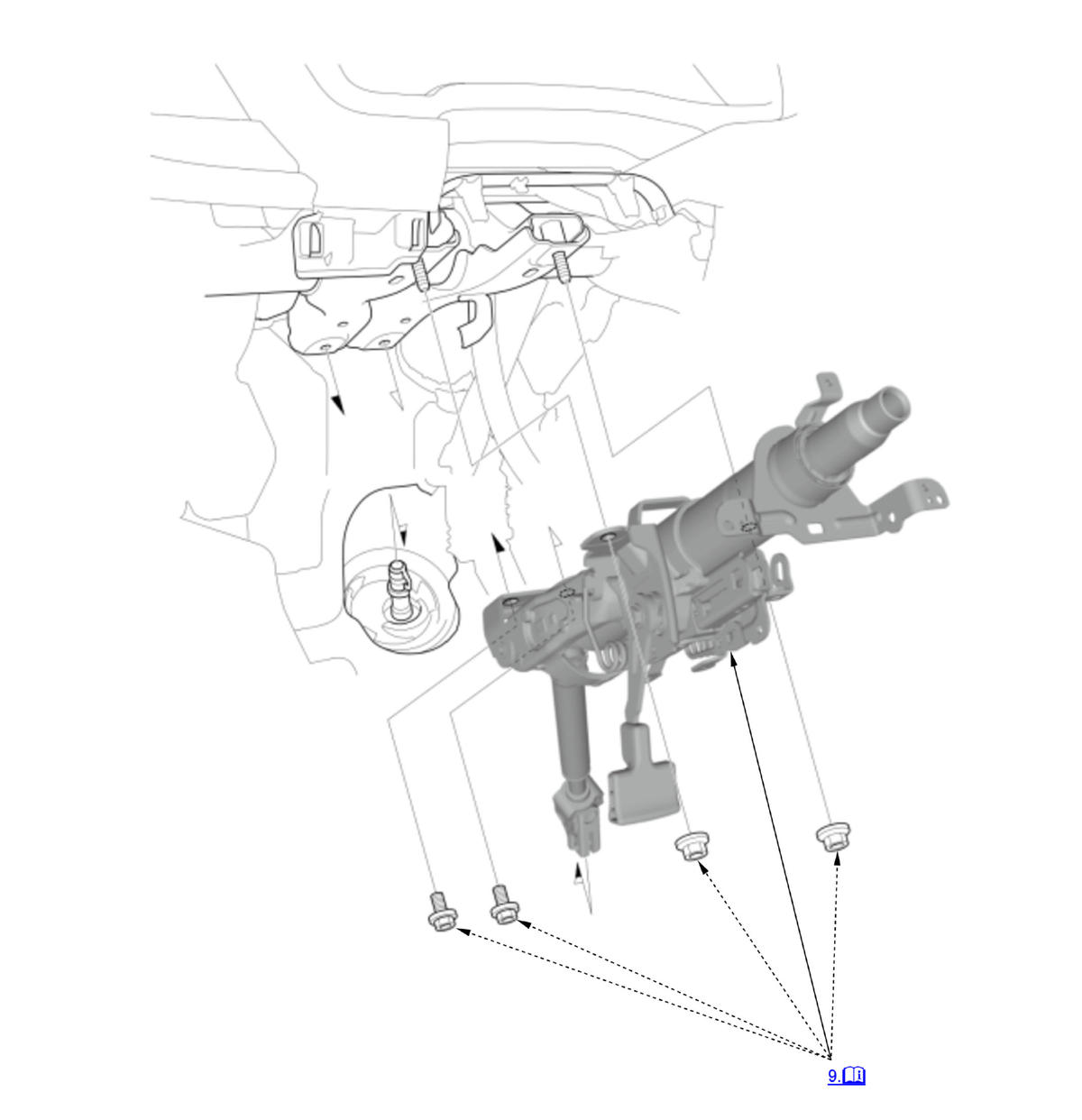

Fig 2: Exploded View Of Steering Column Components (2 Of 2)
GHH381182Courtesy of HONDA, U.S.A., INC.
  1. 12 Volt Battery Terminal - Disconnect

    NOTE:  Wait at least 3 minutes before starting work.

  2. Driver's Airbag - Remove
  3. Steering Wheel - Remove
  4. Driver's Dashboard Undercover - Remove
  5. Driver's Dashboard Lower Cover - Remove
  6. Column Cover - Remove
  7. Combination Switch Body Assembly - Remove
  8. Steering Joint - Disconnect
  9. Steering Column - Remove

    NOTE:  Be careful not to damage the brake pedal position switch.
