Steering Column Removal and Installation: Installation: Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

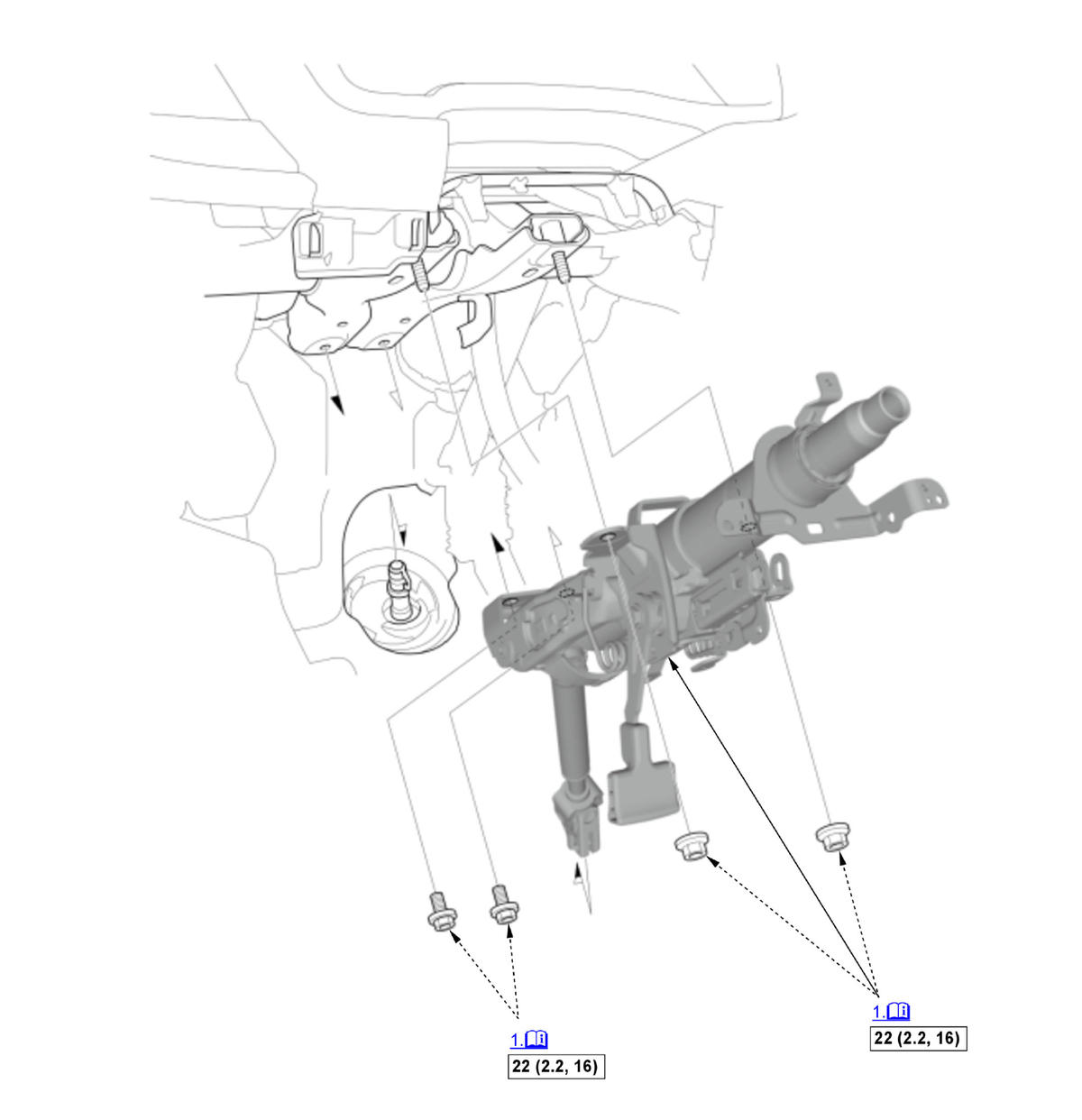

Fig 1: Exploded View Of Steering Column Components With Torque Specifications (1 Of 2)

Courtesy of HONDA, U.S.A., INC.

Torque: N.m (kgf.m, lbf.ft)

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

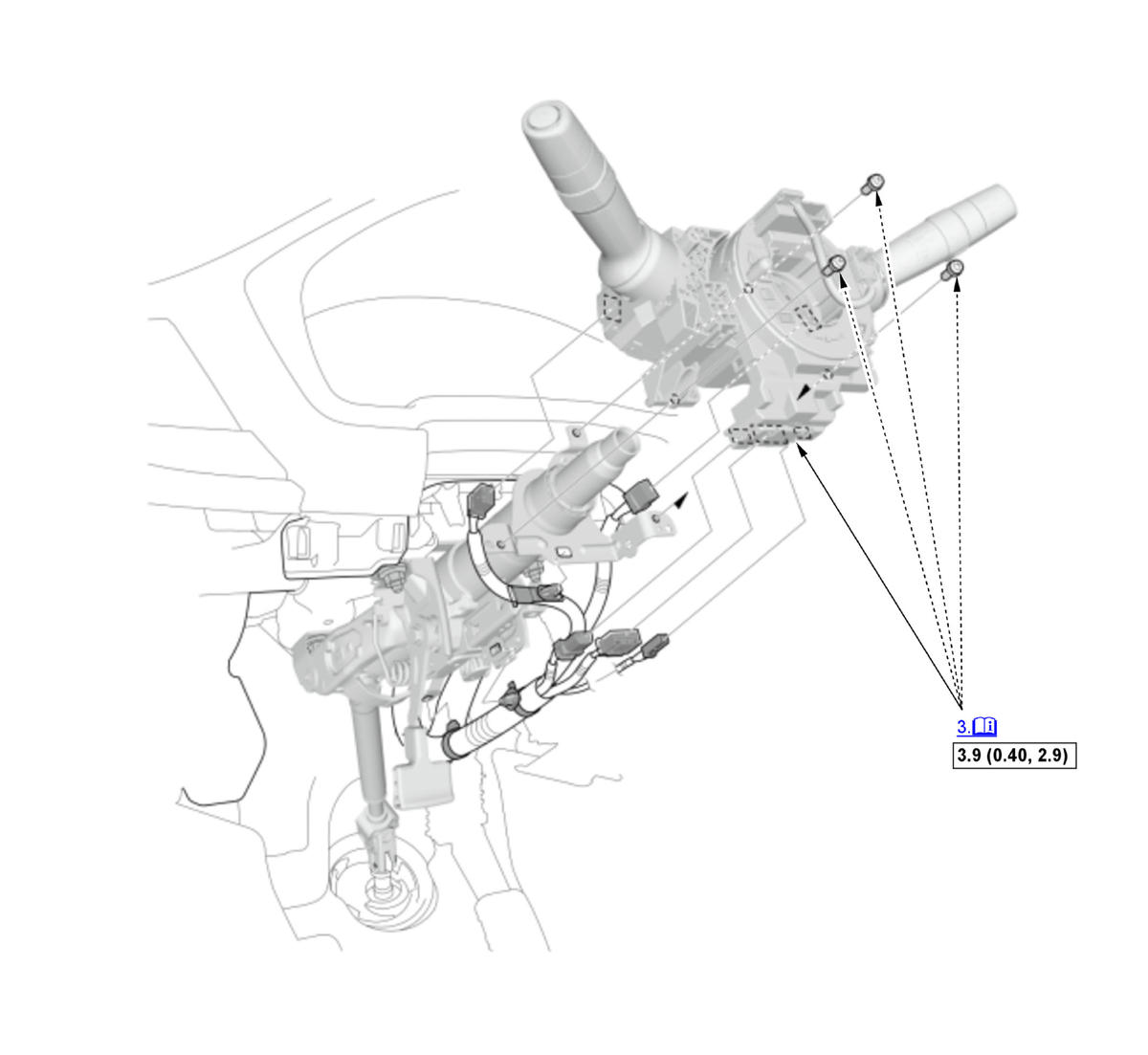

Fig 2: Exploded View Of Steering Column Components With Torque Specifications (2 Of 2)

Courtesy of HONDA, U.S.A., INC.

Torque: N.m (kgf.m, lbf.ft)

Steering Column - Install

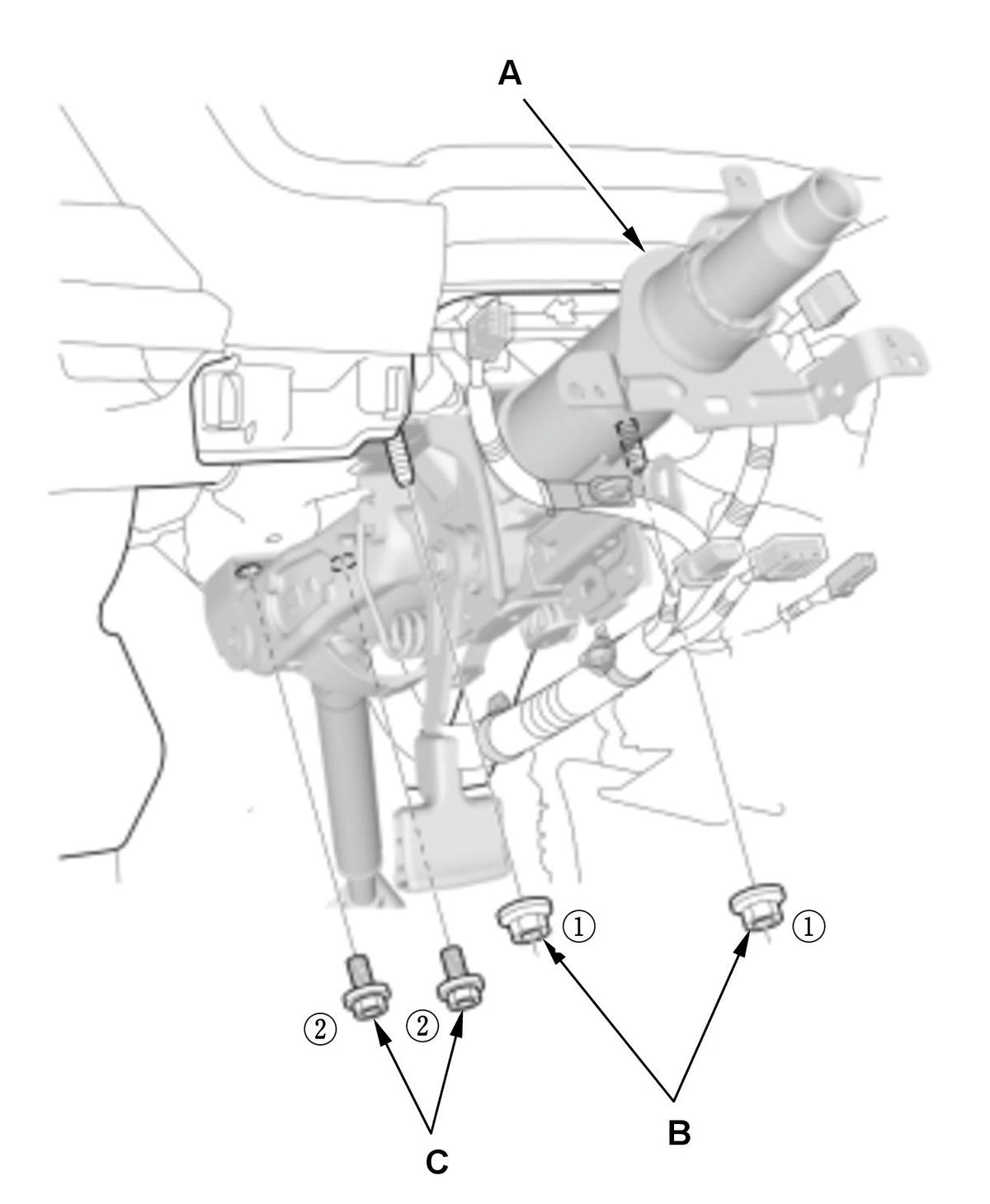

Fig 3: Steering Column Bolts And Nuts With Tightening Sequence

Courtesy of HONDA, U.S.A., INC.

1. Install the steering column (A).

NOTE: Be careful not to damage the brake pedal position switch.

2. Loosely install the attaching nuts (B) and bolts (C).

3. Tighten the attaching nuts and bolts to the specified torque in the numbered sequence shown.

Steering - Check

1. After installation, check these items:

Check the tilt mechanism and the telescopic mechanism for movement and damage.
With the front wheels straight ahead, make sure the steering wheel is centered and the turning revolutions from center to full lock (left and right) is equal. If not, check the installation of the steering wheel and the engagement of the joint/pinion shaft splines.
