Front Passenger's Airbag Removal and Installation: Installation
WARNING: This page is about a different variant/trim than selected.
SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.
NOTE: How to read the torque specifications .
Installation Before the Front Passenger's Airbag Deployment
- Front Passenger's Airbag - Install
Courtesy of HONDA, U.S.A., INC.
1. Insert the hooks (A) into the front passenger's airbag housing holes (B).
NOTE:- Make sure there are no objects between the airbag and the dashboard.
- Make sure the airbag is fully seated, and make sure the dashboard is not deformed or damaged after the airbag is in place.
- Make sure the hooks are set properly.
2. Tighten the new mounting bolts (C, D).
3. Connect the connector (A). - SRS Operation - Confirm
1. Do the 12 volt battery terminal reconnection procedure, turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off. - Blower Unit - Install
Installation After the Front Passenger's Airbag Deployment
- Front Passenger's Airbag - Install

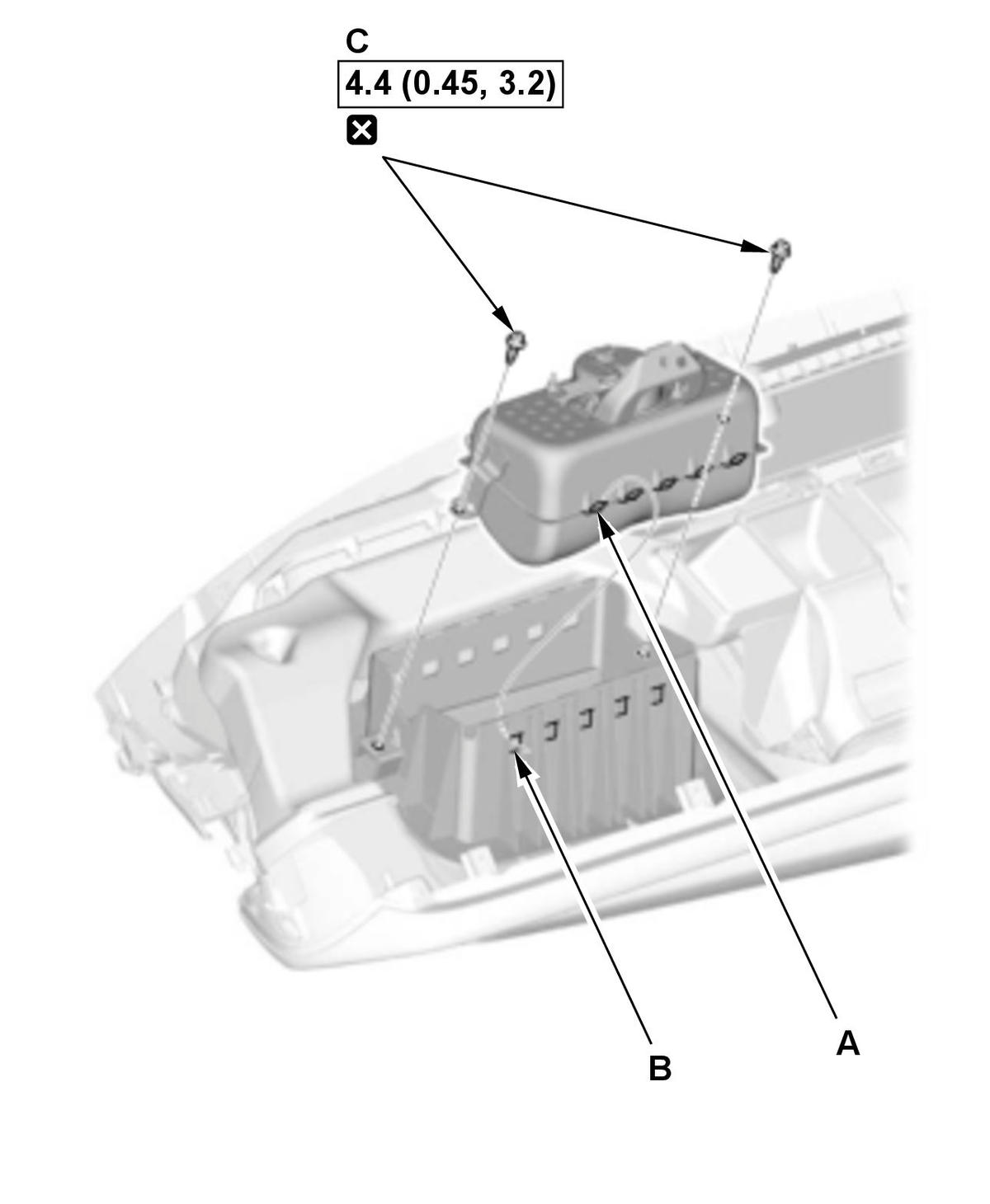

1. Insert the hooks (A) of the front passenger's airbag into the housing holes (B).
NOTE:- Make sure there are no objects between the airbag and the dashboard.
- Make sure the airbag is fully seated, and make sure the dashboard is not deformed or damaged after the airbag is in place.
- Make sure the hooks are set properly.
2. Tighten the new bolts (C).
- Front Passenger's Airbag/Dashboard - Install
- Front Passenger's Airbag Inflator Connector - Connect

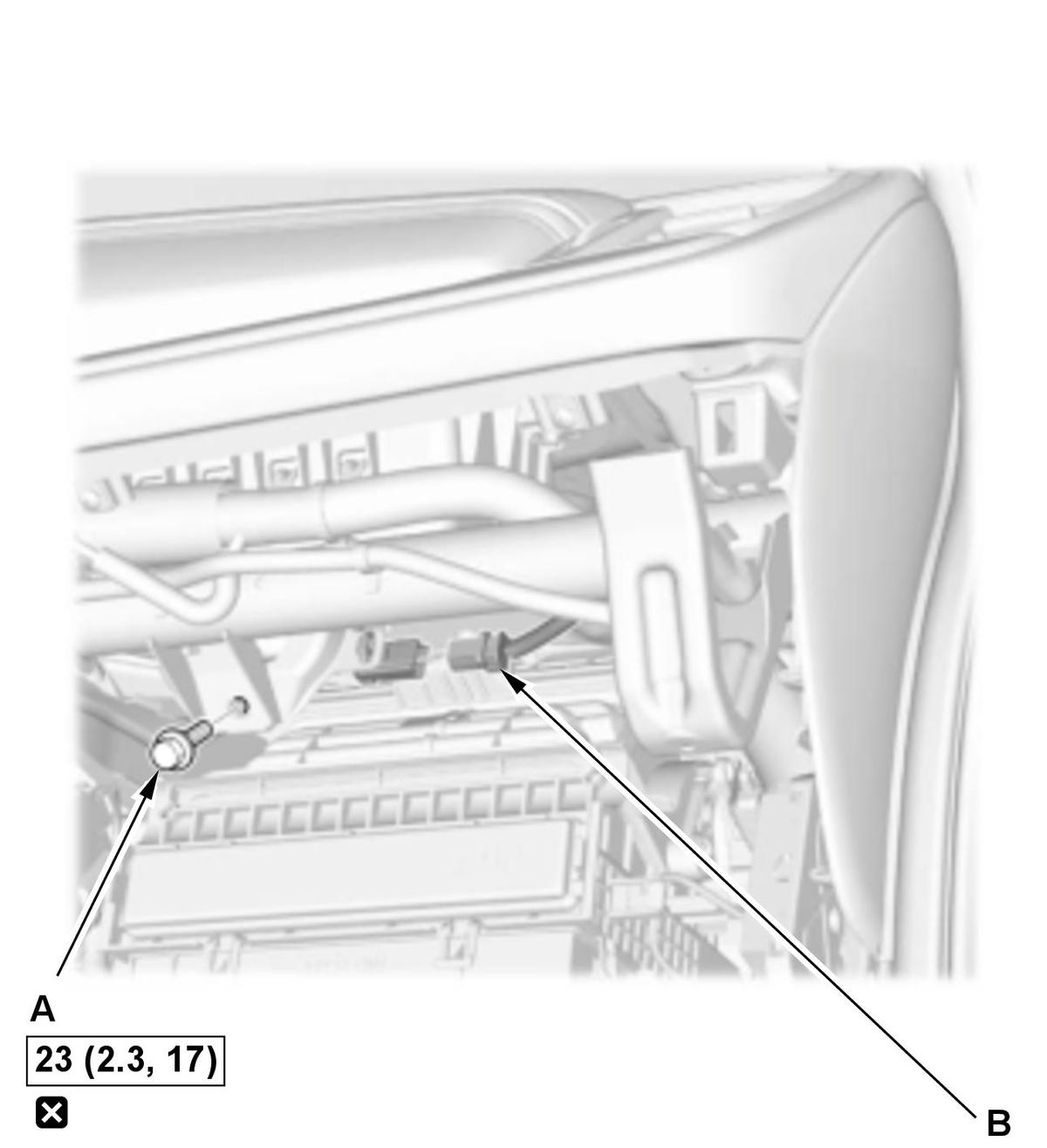

1. Tighten the new mounting bolt (A). 2. Connect the connector (B).
- SRS Operation - Confirm
1. Do the 12 volt battery terminal reconnection procedure, turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off. - Glove Box - Install
