Driver's Airbag Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Spring - Install (If necessary)

Courtesy of HONDA, U.S.A., INC.

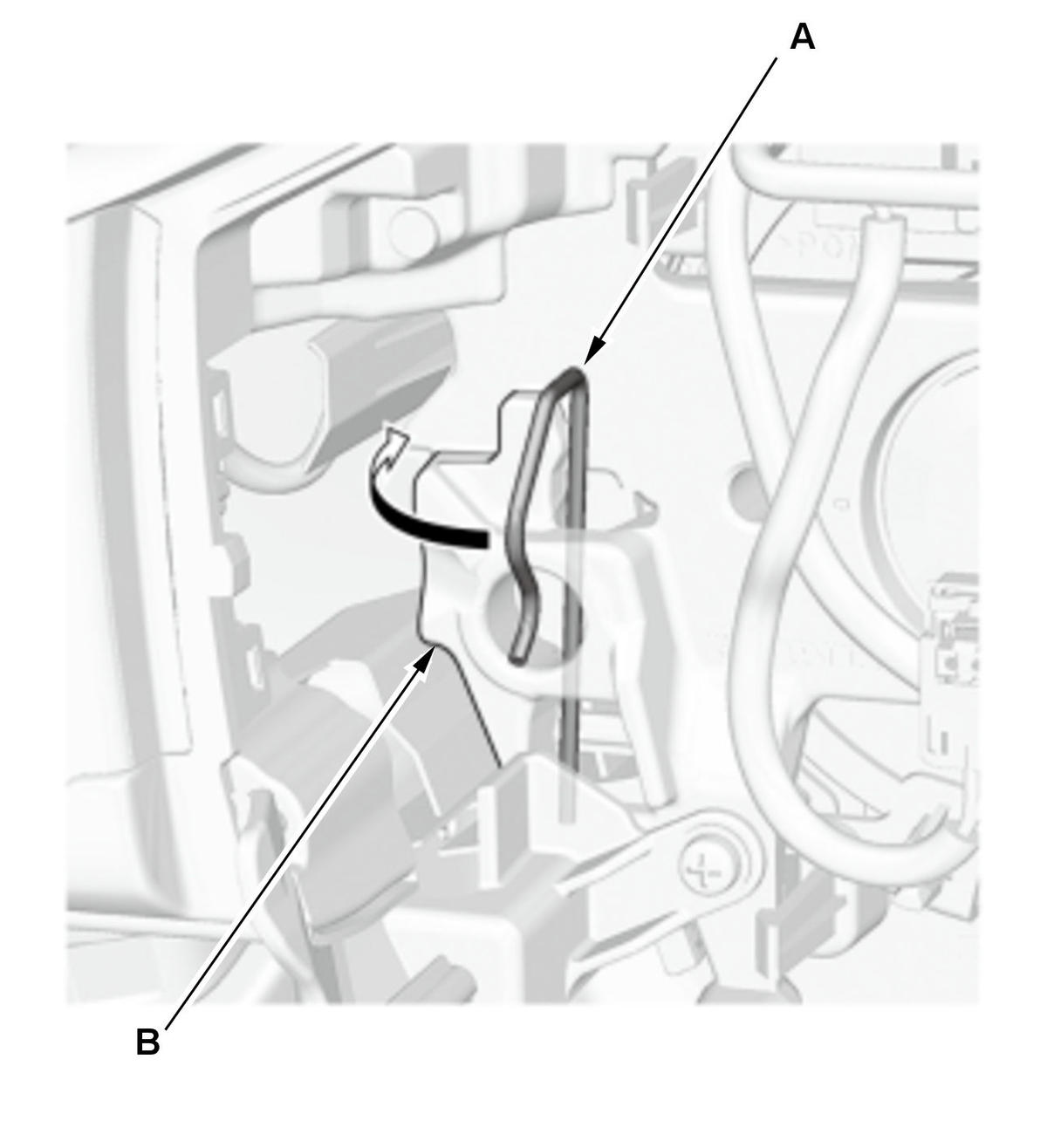

1. Install the springs (A) to the steering wheel (B).
NOTE: Make sure that the springs are installed properly.

Driver's Airbag - Install

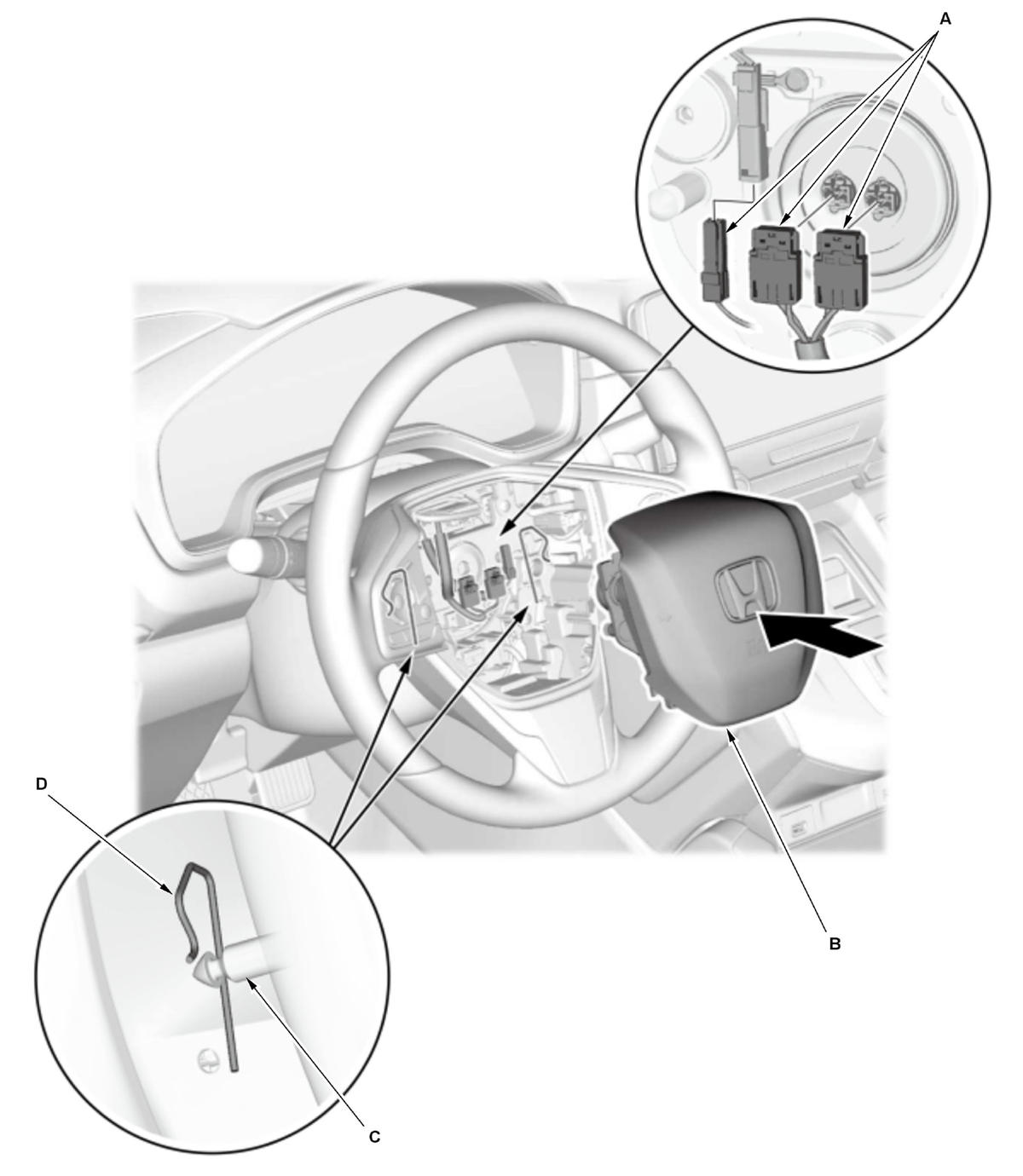

1. Connect the connectors (A).

Courtesy of HONDA, U.S.A., INC.

2. Install the driver's airbag (B) by pushing it in until you hear a click.

NOTE: Confirm that the front airbag pins (C) are securely mounted to the springs (D).

Courtesy of HONDA, U.S.A., INC.

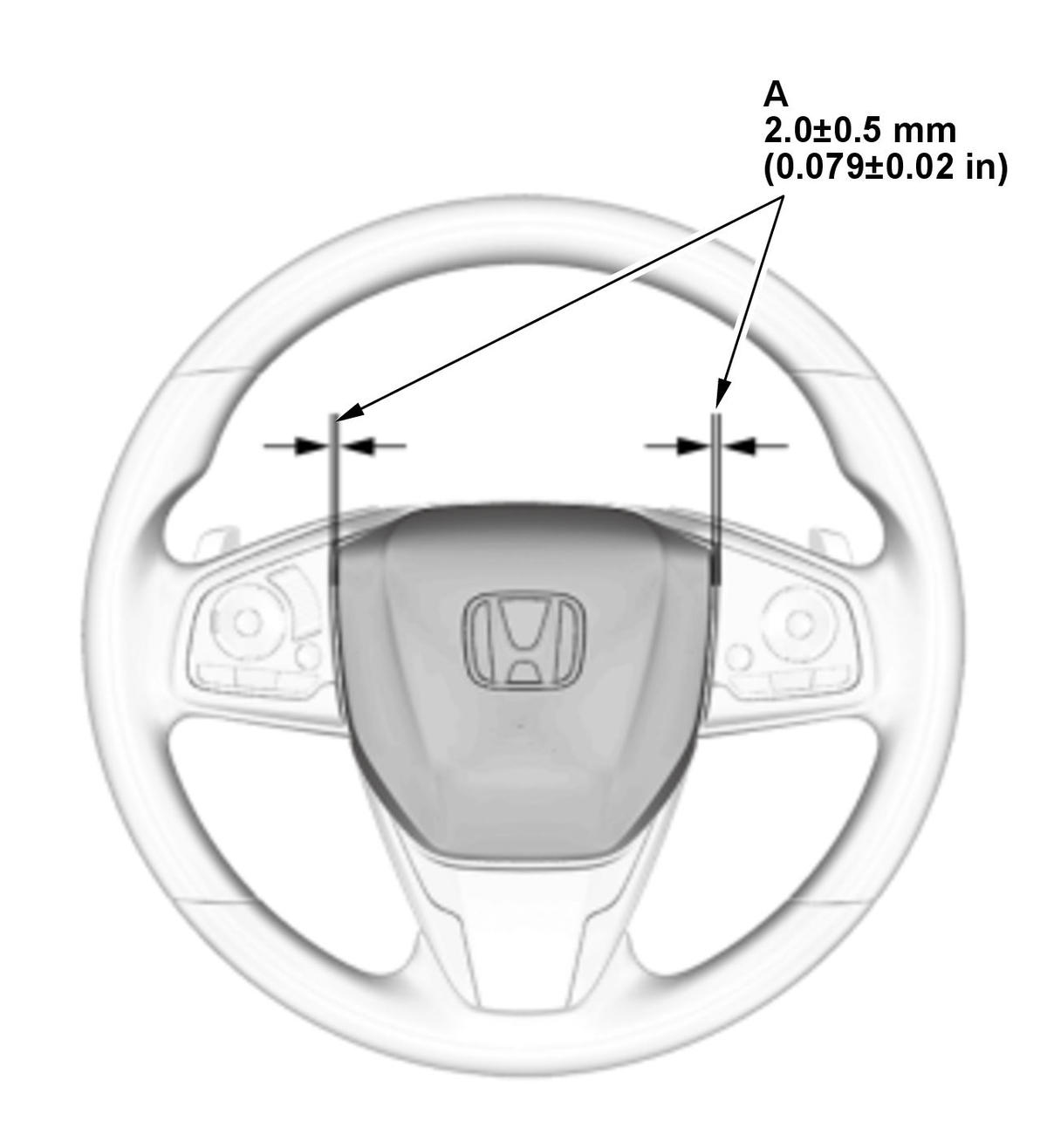

3. Make sure the clearance (A) between the steering wheel and horn pad is the specified value.

4. After connecting the negative cable to the 12 volt battery, make sure the horn works properly.

SRS Operation - Confirm

1. Do the 12 volt battery terminal reconnection procedure, turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
