Cable Reel Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

NOTE: Before doing this procedure, set the front wheels in the straight ahead position.

12 Volt Battery Terminal - Disconnect
NOTE: Wait at least 3 minutes before starting work.
Steering Wheel - Remove
Column Cover - Remove

Cable Reel - Remove

Courtesy of HONDA, U.S.A., INC.

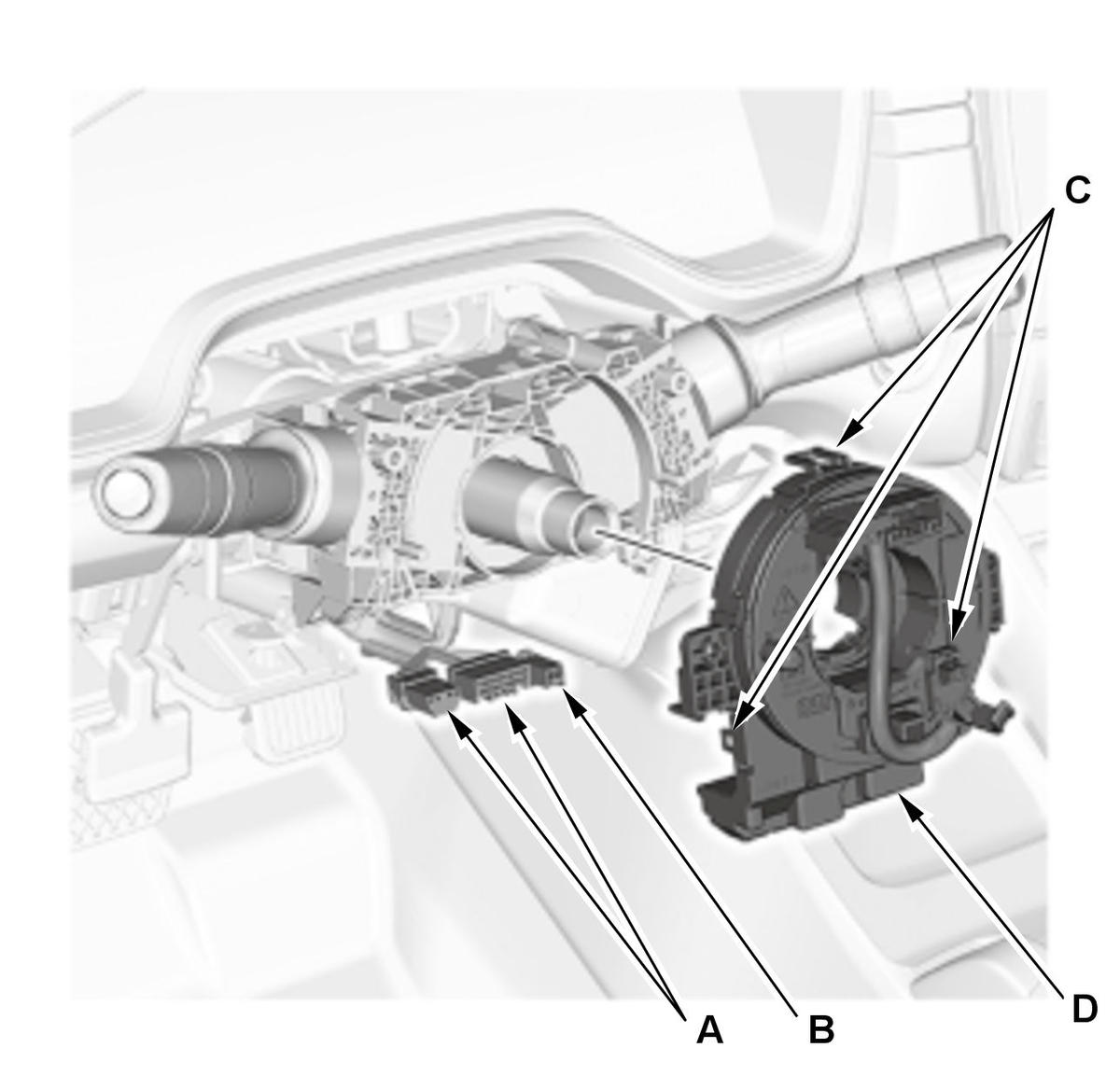

1. Disconnect the connectors (A) from the cable reel.

2. For some models: Disconnect the connector (B) from the cable reel.

3. Release the lock tabs (C), then remove the cable reel (D).
