Grab Handle Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Grab Handle - Install

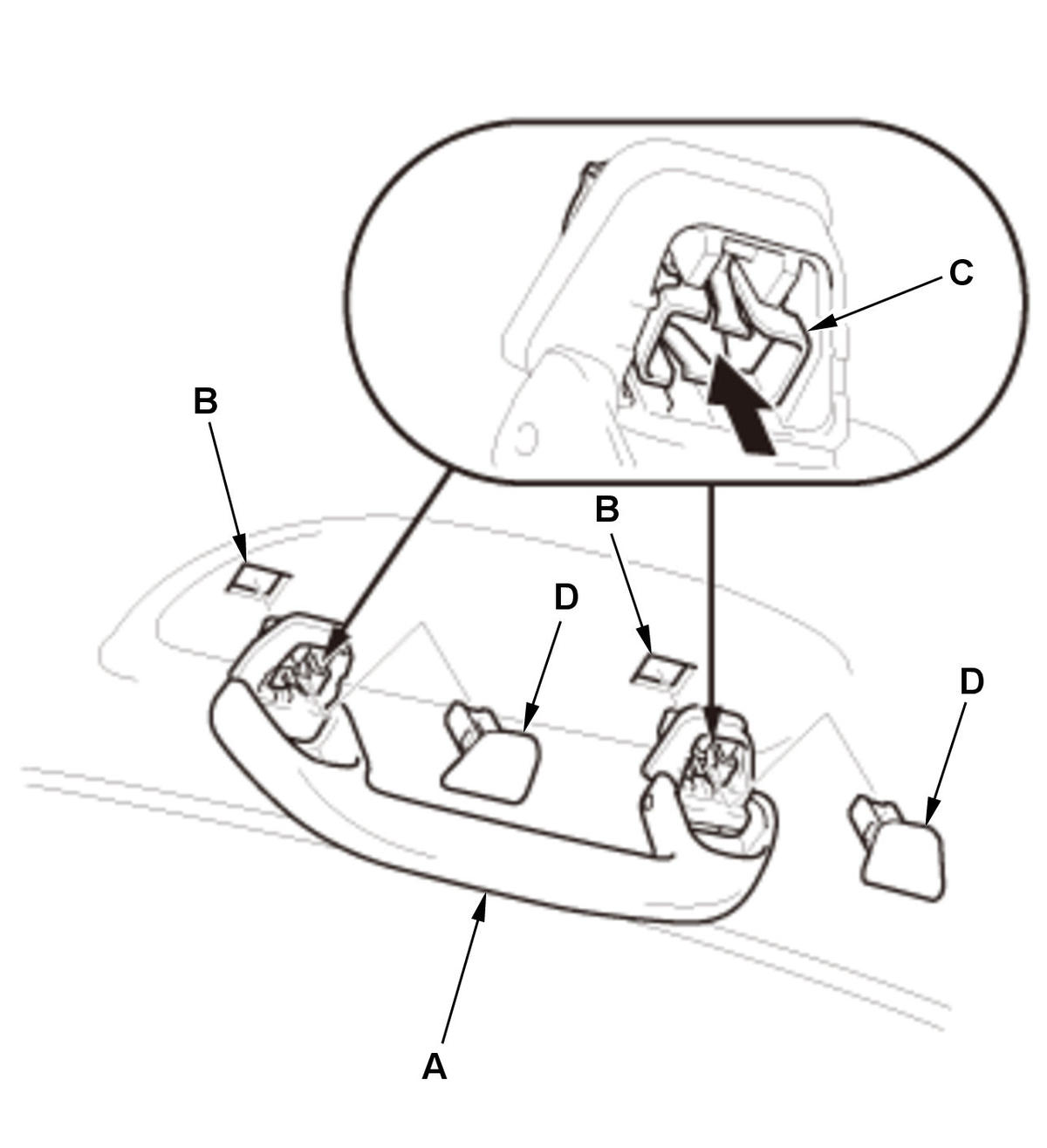

    GHH379673Courtesy of HONDA, U.S.A., INC.
    		 1. Position the grab handle (A) on the grab handle bracket (B).

    2. Push on the grab handle until the clips (C) snap into place securely.

    3. Install the caps (D) fully into the clips.
