Grab Handle Removal and Installation: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Grab Handle - Check

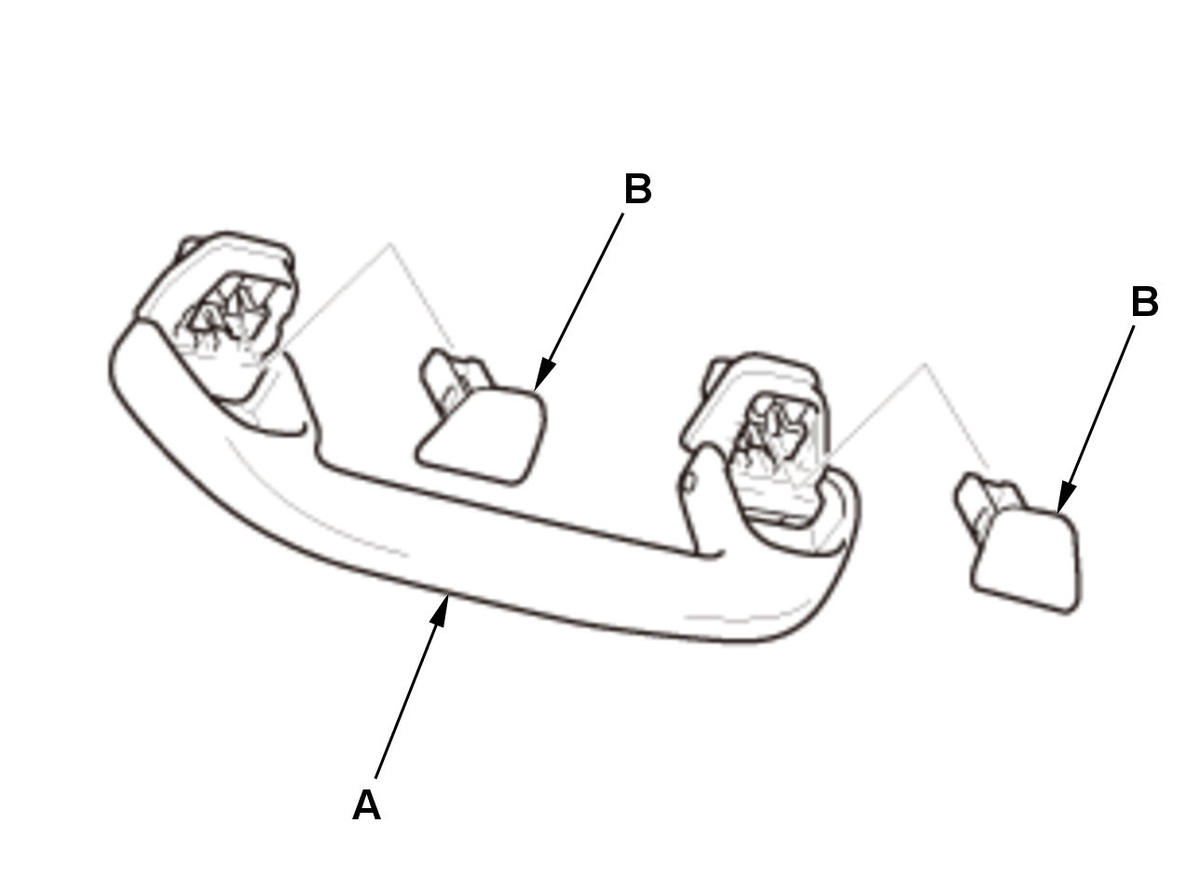

    GHH379672Courtesy of HONDA, U.S.A., INC.
    		 1. If the side curtain airbag has not deployed, inspect the grab handle (A) for damage. A damaged grab handle may cause the side curtain airbag to deploy improperly, possibly causing injury. Replace the grab handle if it has any of the following damage:
    • Any cracks or breakage in the grab handle
    • Any cracks or stress-whitening in the caps (B)
