Removal and Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

NOTE: How to read the torque specifications .

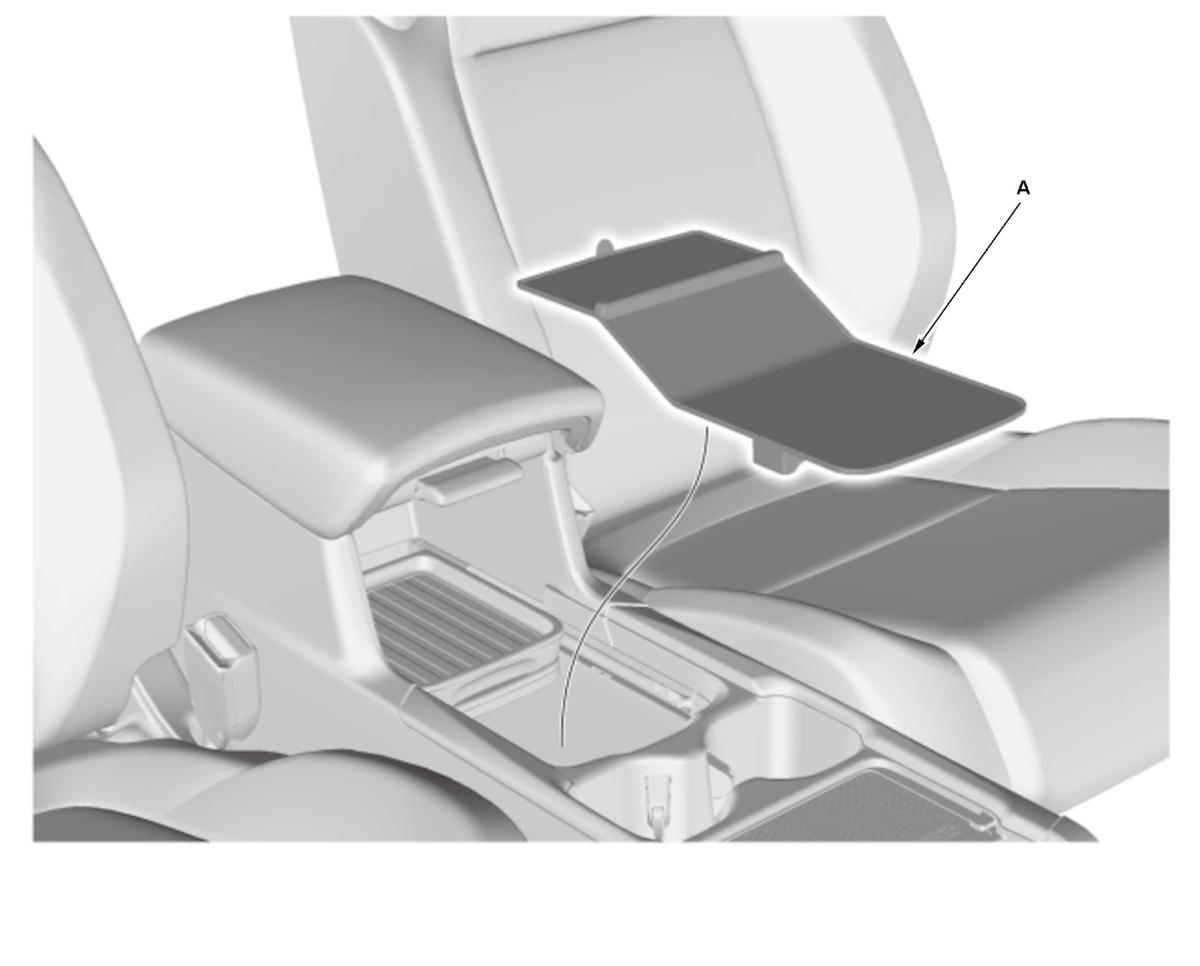

1. Center Console Tray - Remove

   1. Remove the center console mat (A).

   Courtesy of HONDA, U.S.A., INC.

2. Dashboard Center Lower Panel - Remove
3. Both Front Console Covers - Remove
4. Center Console Rear Trim Assembly - Remove

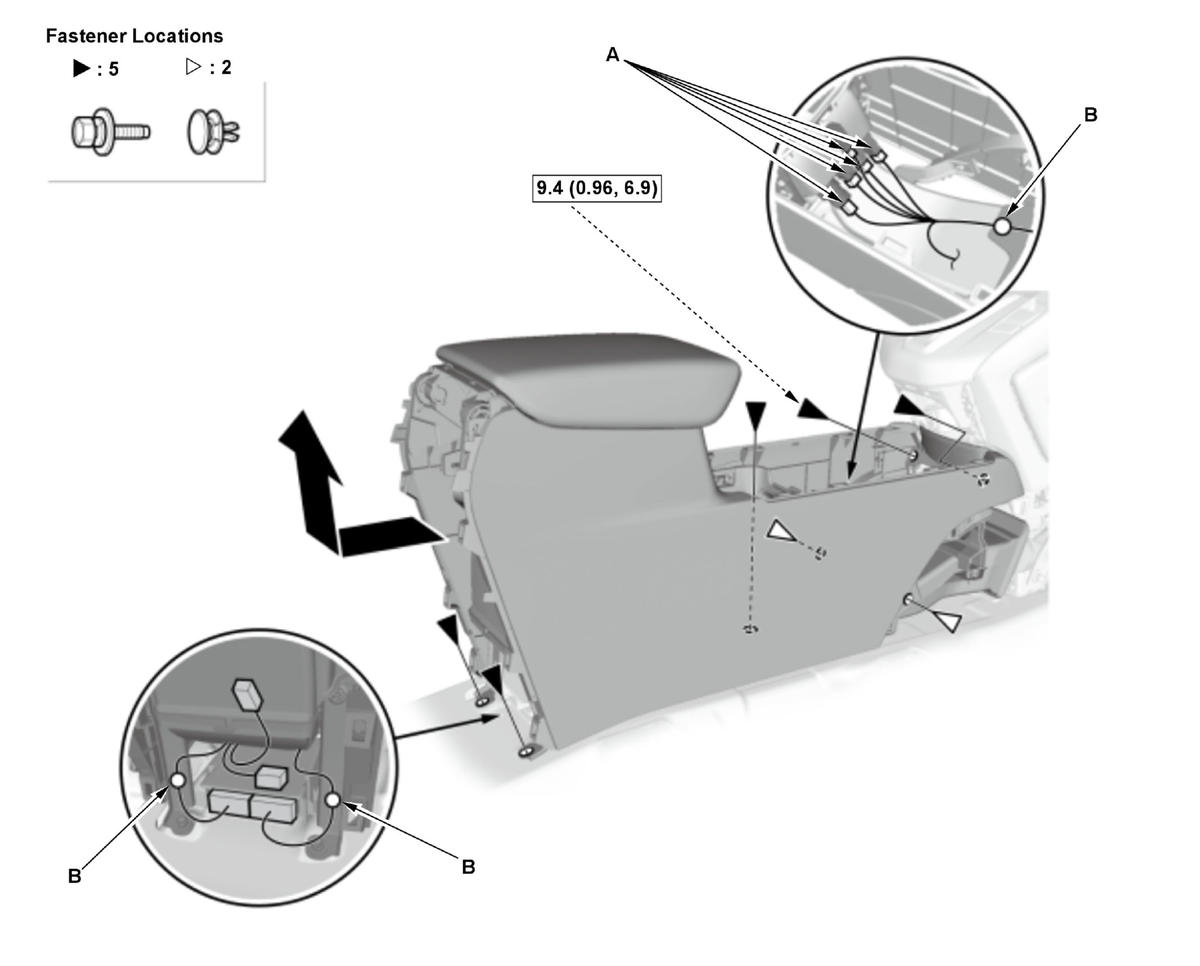

5. Center Console - Remove

   1. Disconnect the connectors (A) and the harness clips (B).

   NOTE:  The positions and number of connectors vary depending on model type.

   Courtesy of HONDA, U.S.A., INC.

   2. Remove the clips and bolts.

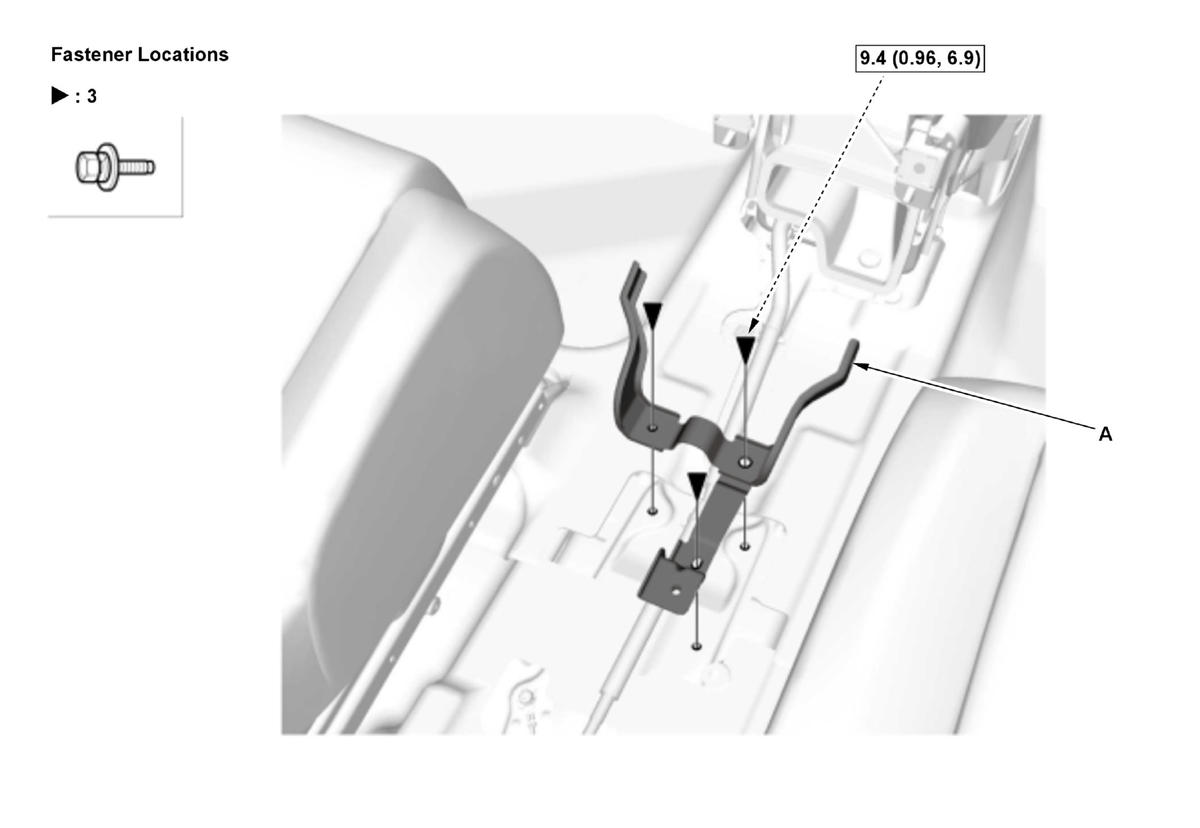

6. Center Console Bracket - Remove

   1. If necessary, remove the center console bracket (A).

   Courtesy of HONDA, U.S.A., INC.

7. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
