Exploded View: Procedure

WARNING: This page is about a different variant/trim than selected.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

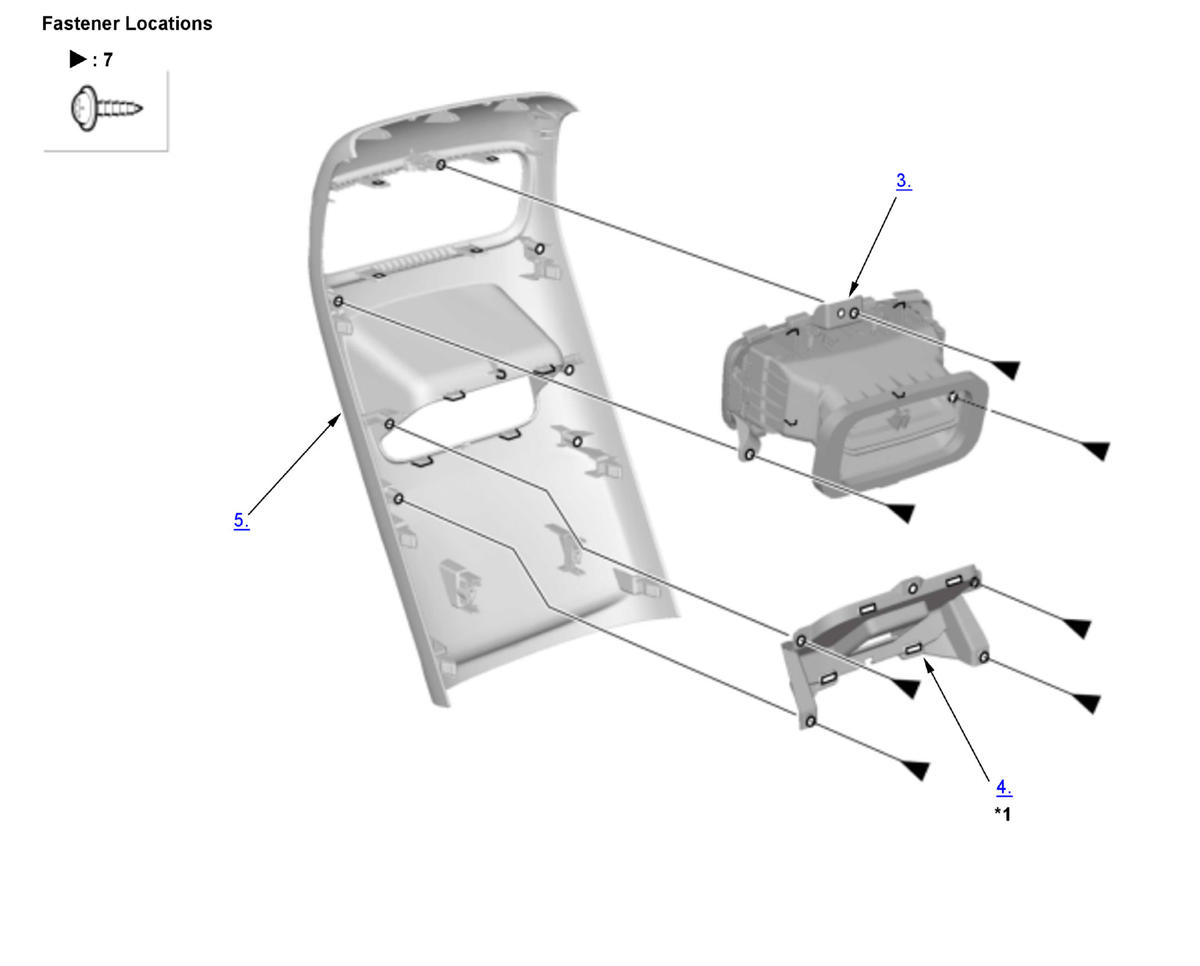

Fig 1: Exploded View Of Center Console Rear Trim Components
GHH379613Courtesy of HONDA, U.S.A., INC.
*1 For Some Models
  1. Center Console Rear Trim Assembly - Remove
  2. USB Charger Unit - Remove
  3. Center Console Outlet - Remove
  4. Center Console Rear Jack Panel - Remove
  5. Center Console Rear Trim - Remove
  6. All Disassembled Parts - Reassemble
    1. Reassemble the parts in the reverse order of disassembly.
