Side Curtain Airbags
WARNING: This page is about a different variant/trim than selected.

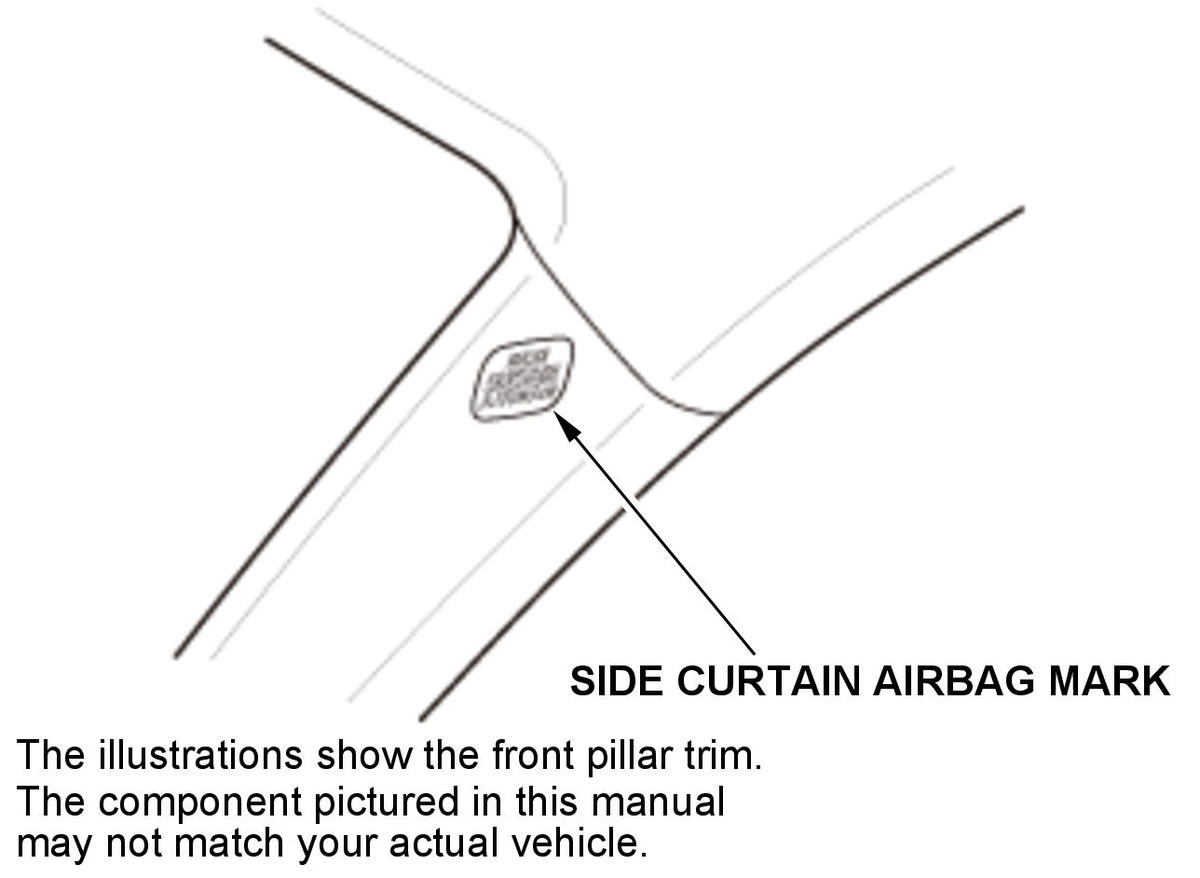

The A-pillar trim and the quarter pillar trim with side curtain airbags have a "SIDE CURTAIN AIRBAG" mark.
The side curtain airbag module assembly is a long, jointed part containing an inflator, a flexible bag, and brackets. When removing or installing the side curtain airbag assembly, never:
- Handle the flexible bag.
- Drop the airbag assembly.
- Cut, tear, or unwrap the tape strips.
