Lever-Locked Connector
WARNING: This page is about a different variant/trim than selected.
The SRS unit connectors have a lever lock.
SRS Unit Connectors

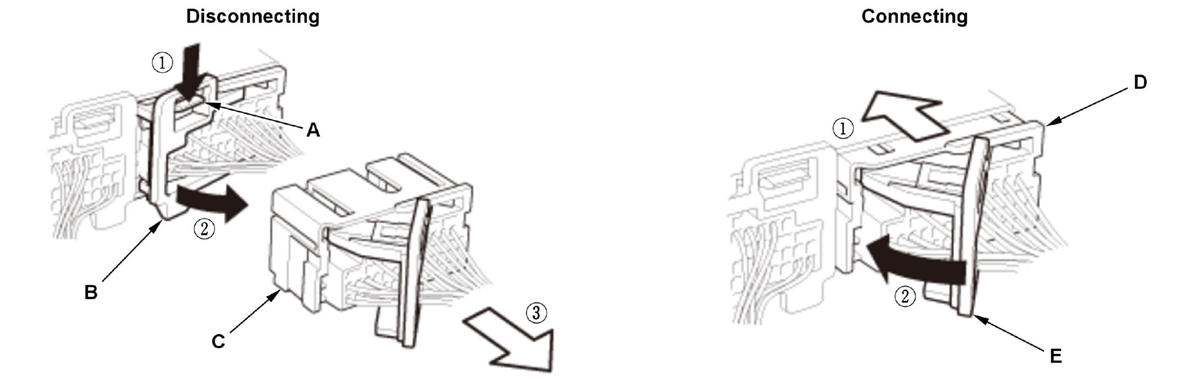

Disconnecting/Connecting
- To release the lock (A), pull the lever (B) while pushing the lock on the outside of the connector, then pull out the connector (C).
- To reconnect the connector (D), push in on the connector. As the connector is pressed in, the lever (E) moves to the locked position.
