SRS Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

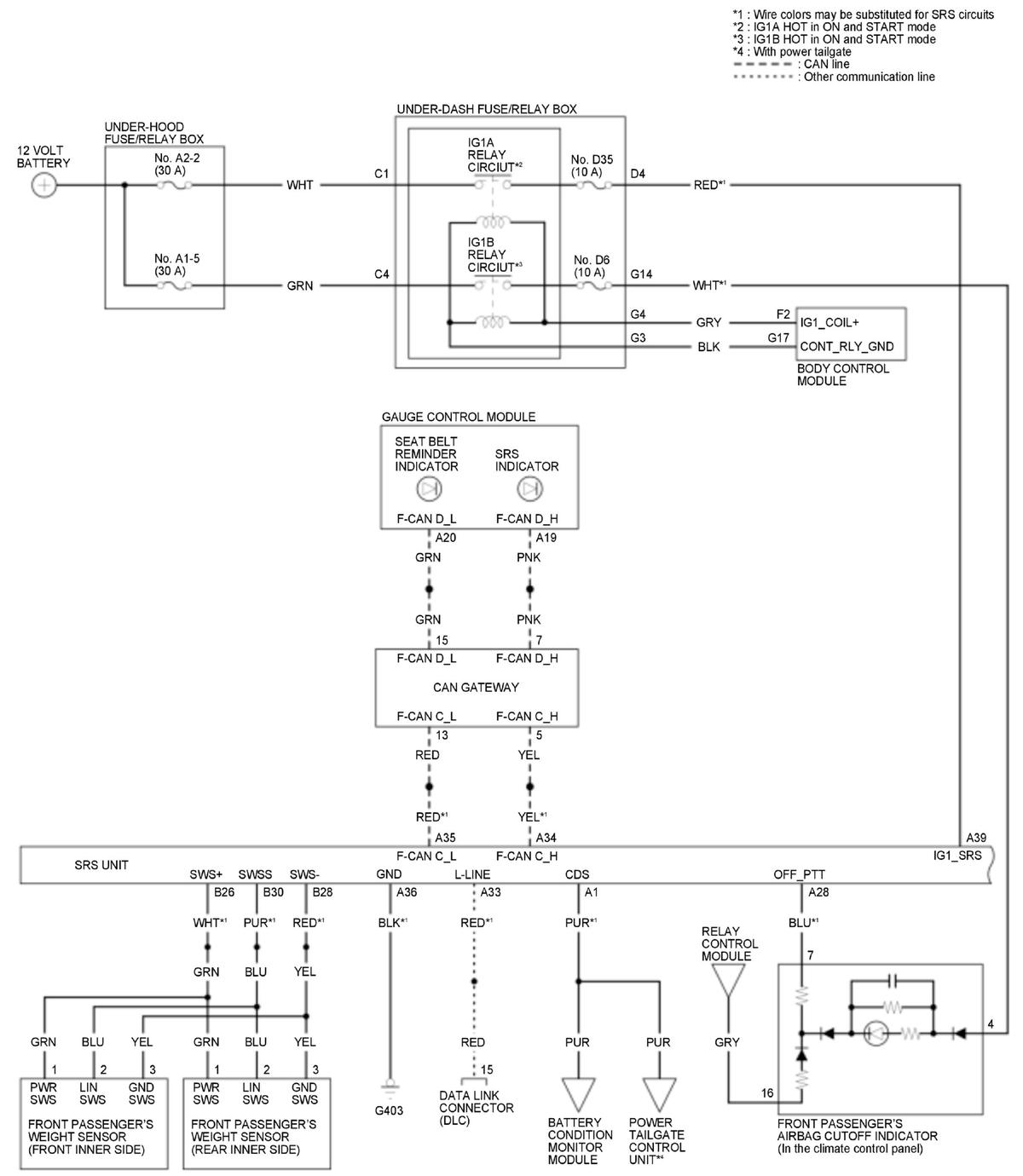

GHH381283Courtesy of HONDA, U.S.A., INC.

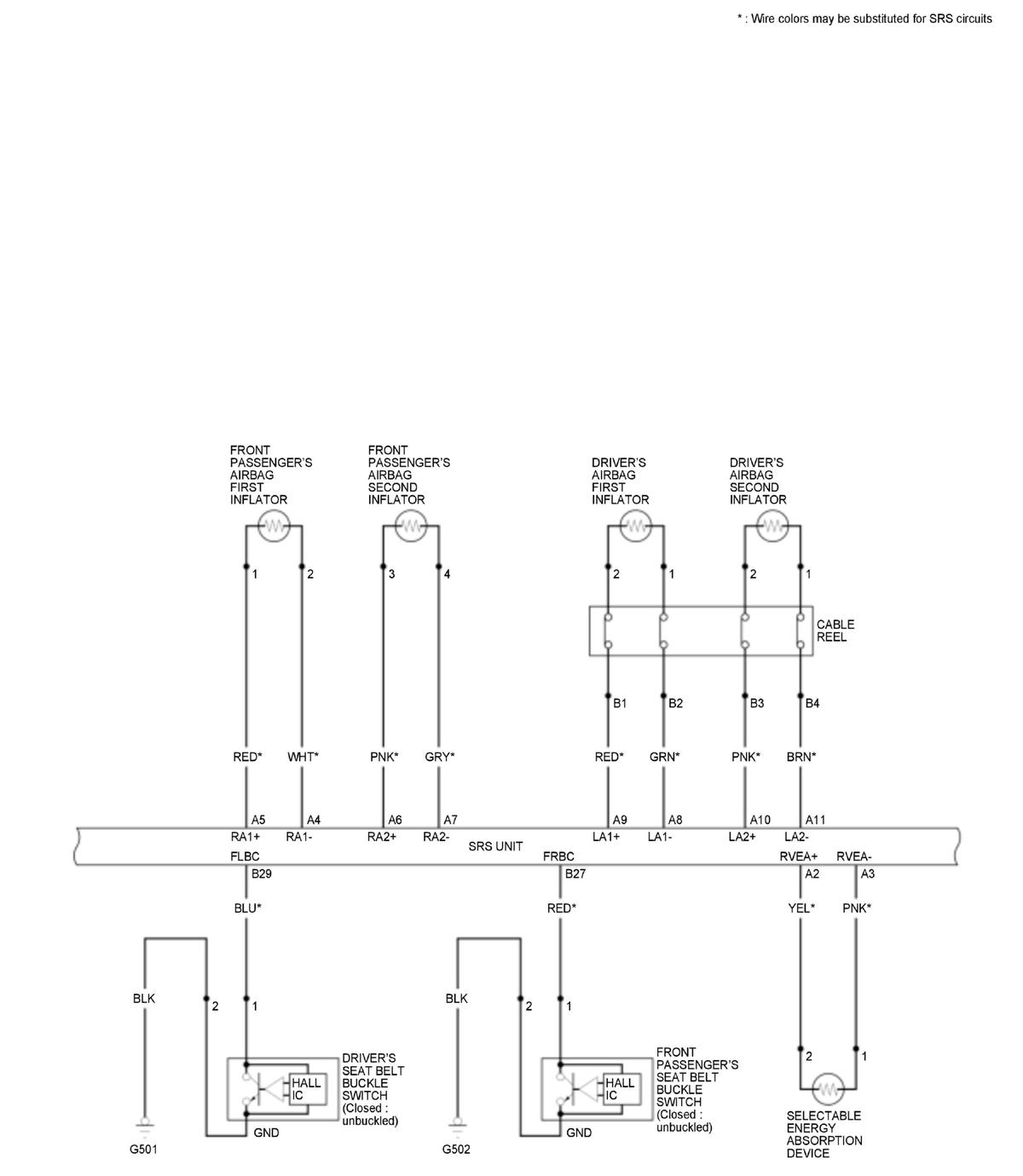

GHH381284Courtesy of HONDA, U.S.A., INC.

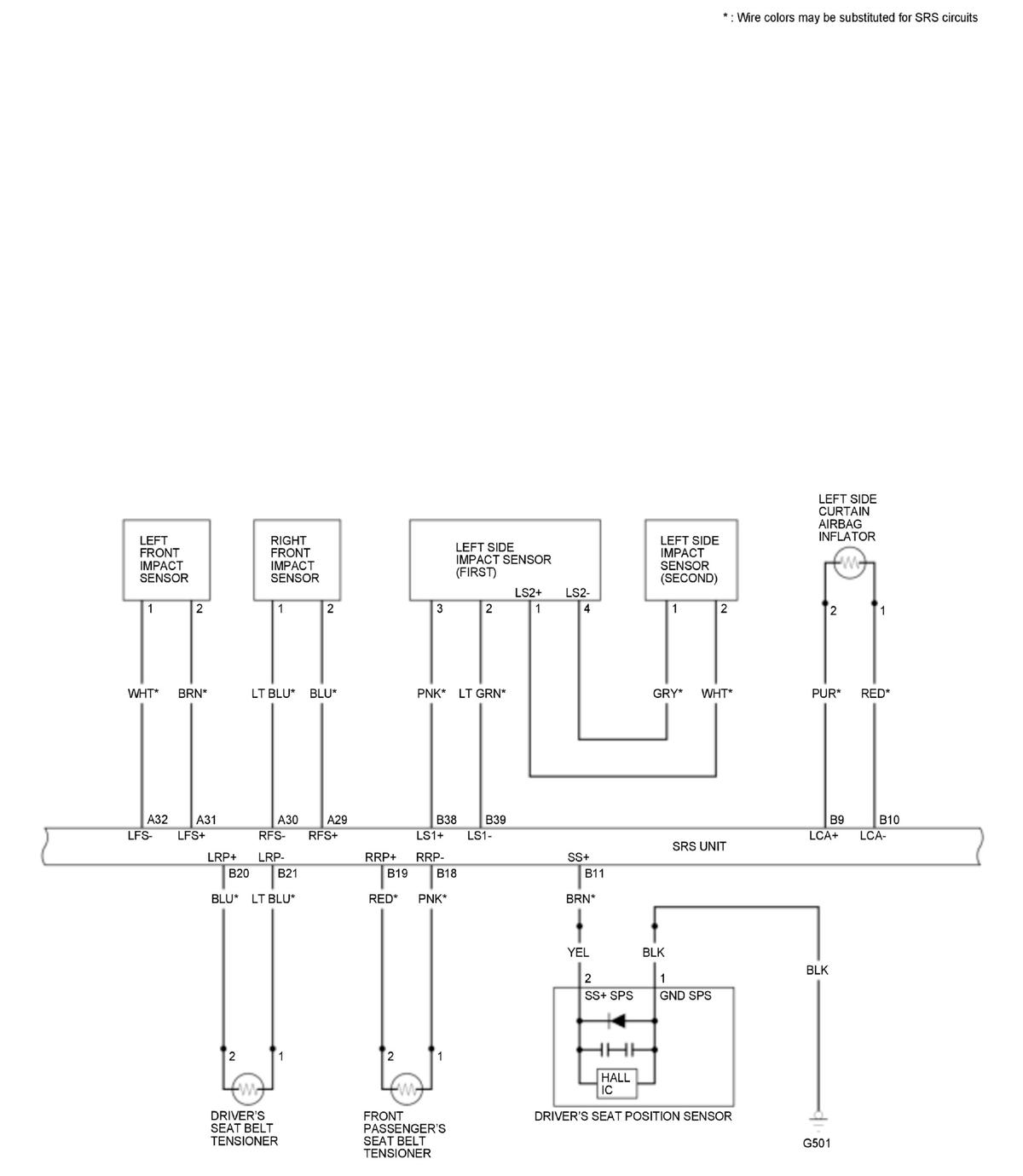

GHH381285Courtesy of HONDA, U.S.A., INC.

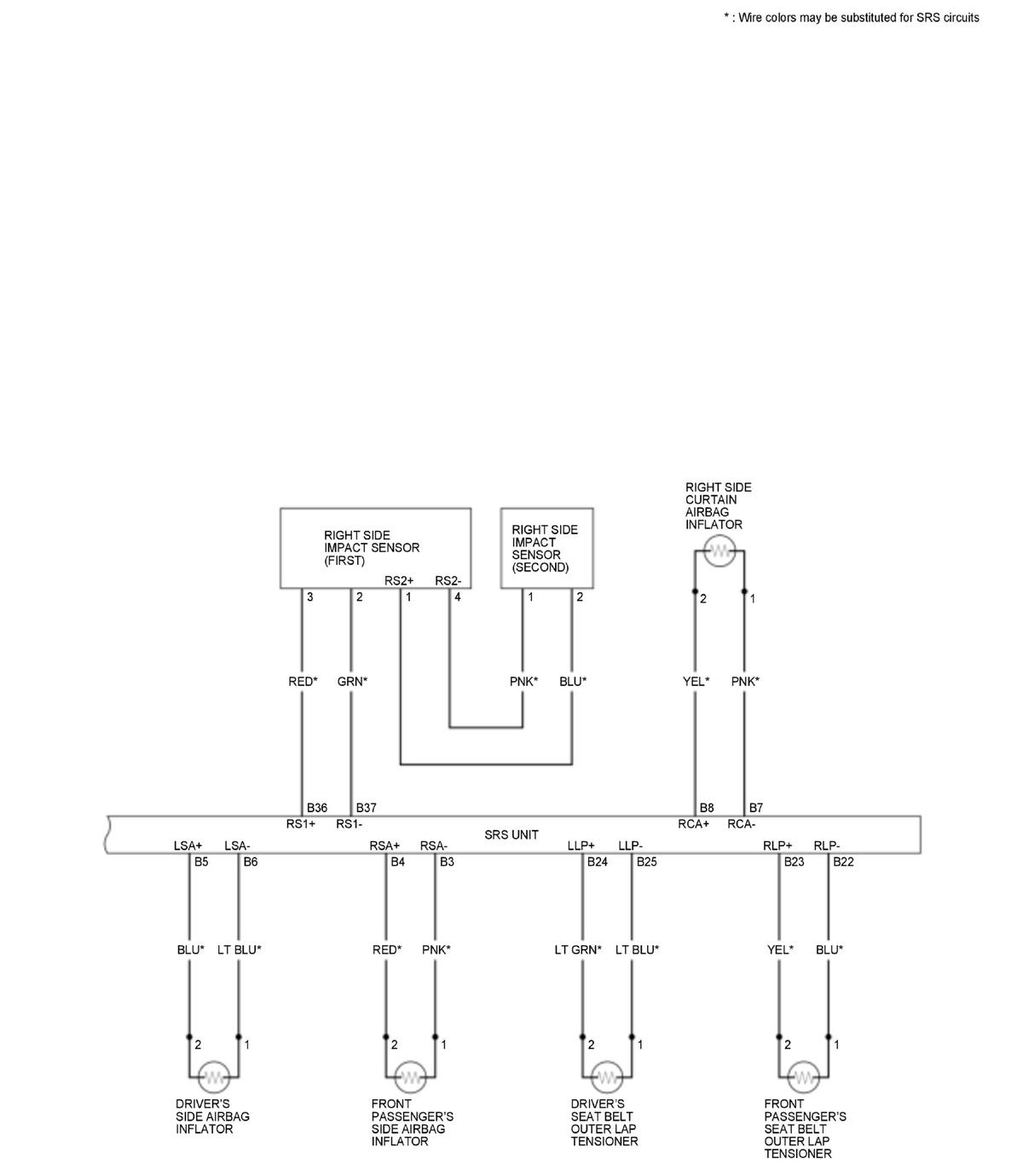

GHH381286Courtesy of HONDA, U.S.A., INC.
