Start-Up Procedure and Diagnostic Menu

1. Turn the vehicle to the ON mode. If needed, start the engine. Press and hold the PHONE button, the DISPLAY MODE (

Courtesy of HONDA, U.S.A., INC.

) button, and the AUDIO POWER (

Courtesy of HONDA, U.S.A., INC.

) button until the Select Diagnosis Items menu screen is displayed:

NOTE:  The buttons needs to be pressed together simultaneously.

• Self-Diagnosis Mode (runs the automatic diagnosis of the navigation system)
• Detail Information and Setting (allows you to manually diagnose the navigation system)

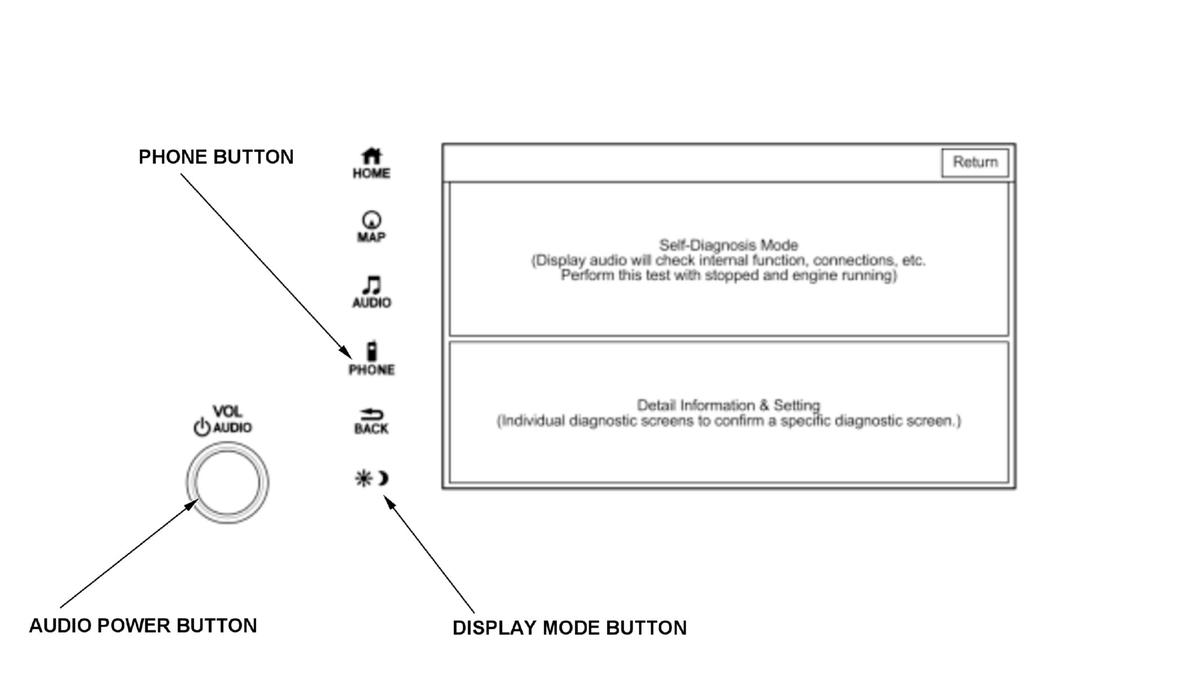

Displaying Select Diagnosis Items Menu Screen

Courtesy of HONDA, U.S.A., INC.
