Forced Completing of In Line Diag and Linking

WARNING: This page is about a different variant/trim than selected.

Follow these steps to prevent the screen from appearing in the future:

1. While displaying the In Line Diag screen, press and hold the PHONE button, the DISPLAY MODE (

Courtesy of HONDA, U.S.A., INC.

) button, and the AUDIO POWER (

Courtesy of HONDA, U.S.A., INC.

) button until the Select Diagnosis Items menu screen is displayed.

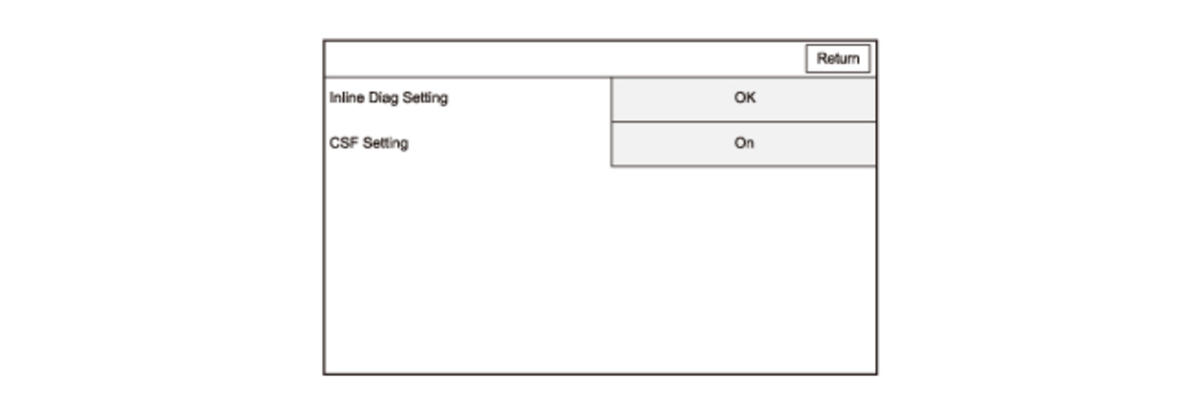

2. While displaying the Select Diagnosis Items menu screen, press and hold the HOME button until the In Line Diag setting screen is displayed.

Courtesy of HONDA, U.S.A., INC.

3. Set the Inline Diag Setting to OK (complete). The system restarts and a normal start-up process occurs. The In Line Diag should not appear again.
