Audio Check

These screens allow you to troubleshoot the audio function. Select the Speaker Check icon.

Courtesy of HONDA, U.S.A., INC.

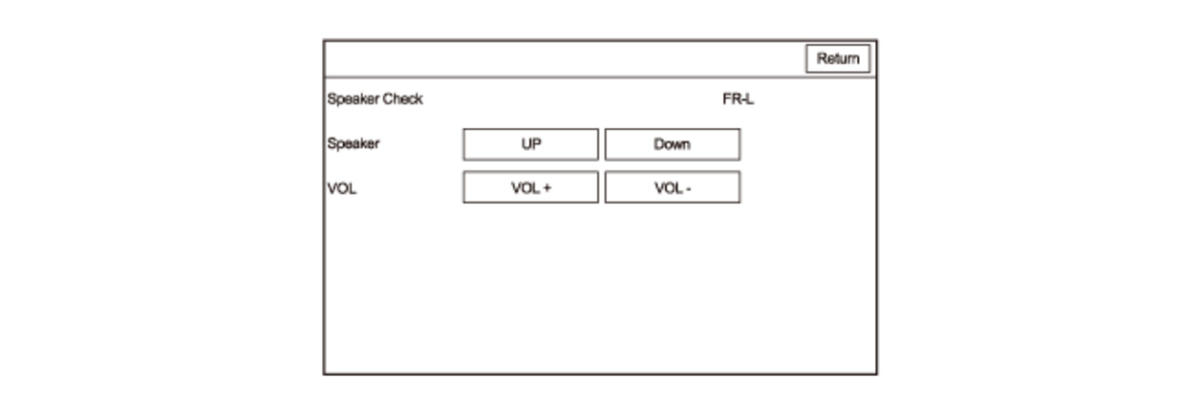

Speaker Check

NOTE:

• Make sure the audio system is off before this diagnosis.
• While doing the diagnosis, the fader and the balance positions are set to the center.

This diagnosis checks the audio speakers individually.

Select the UP icon or the Down icon to check speakers. A tone should sound from the speaker.

When you select the Up icon, the system checks the speakers in this order: -> -> -> -> -> -> -> -> -> ->

When you select the Down icon, the system checks the speakers in this order: -> -> -> -> -> -> -> -> -> ->

	Display Message	Vehicle Test Condition
	FR-L	You should hear a tone from the left front door speaker and the left front tweeter* 2.
* 1	FRTW-L	You should hear a tone from the left front tweeter.
	FR-R	You should hear a tone from the right front door speaker and the right front tweeter* 2.
* 1	FRTW-R	You should hear a tone from the right front tweeter.
	RR1-R	You should hear a tone from the right rear door speaker and the right rear tweeter* 2.
* 1	RR1TW-R	You should hear a tone from the right rear tweeter.
* 1	SW1	You should hear a tone from the subwoofer.
	RR1-L	You should hear a tone from the left rear door speaker and the left rear tweeter* 2.
* 1	RR1TW-L	You should hear a tone from the left rear tweeter.
	ALL	You should hear a tone from all speakers.
