Navigation System Description - System Diagram

For locations of each component on vehicle, refer to Navigation System Component Location Index .

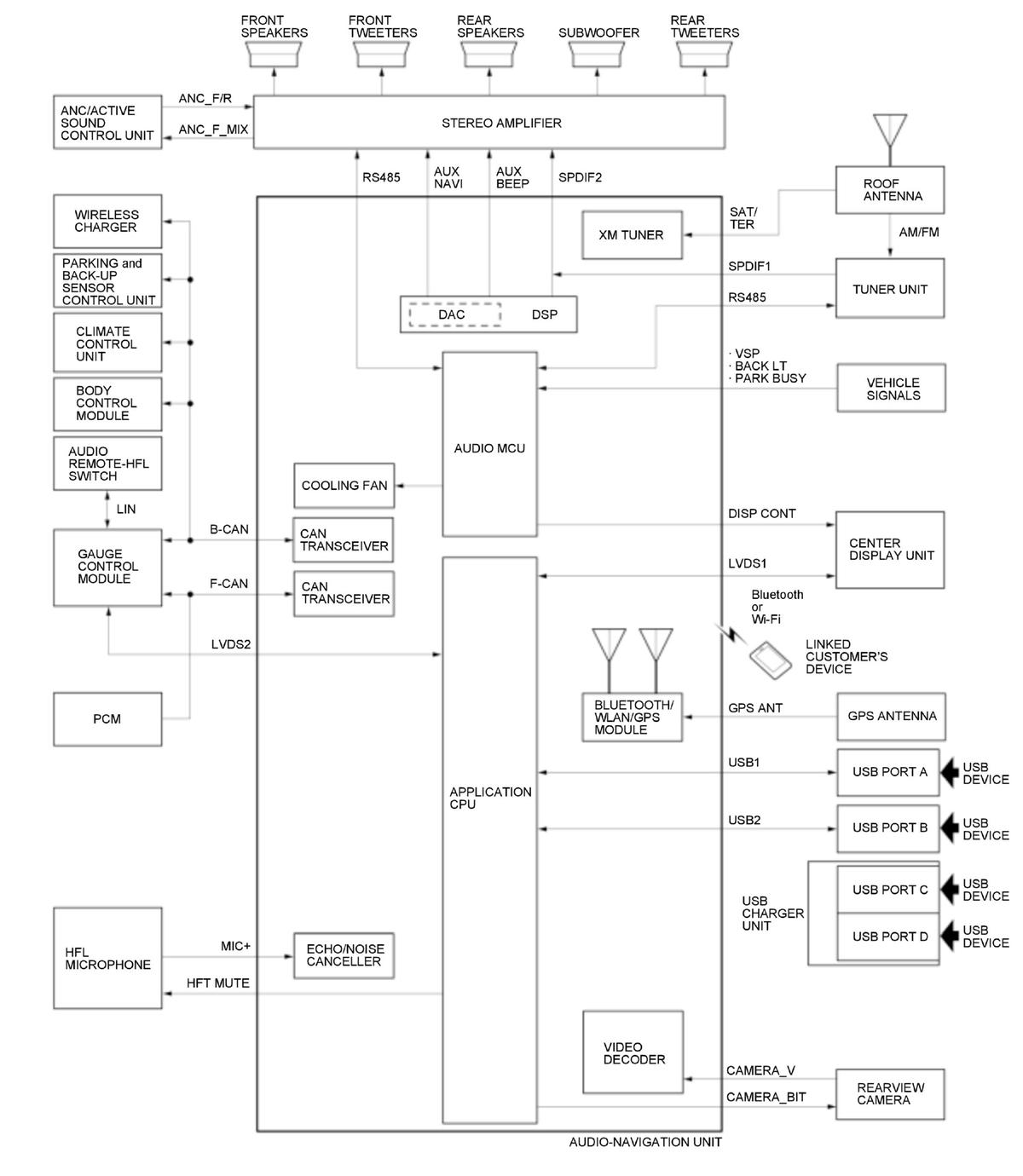

With Stereo Amplifier

Courtesy of HONDA, U.S.A., INC.

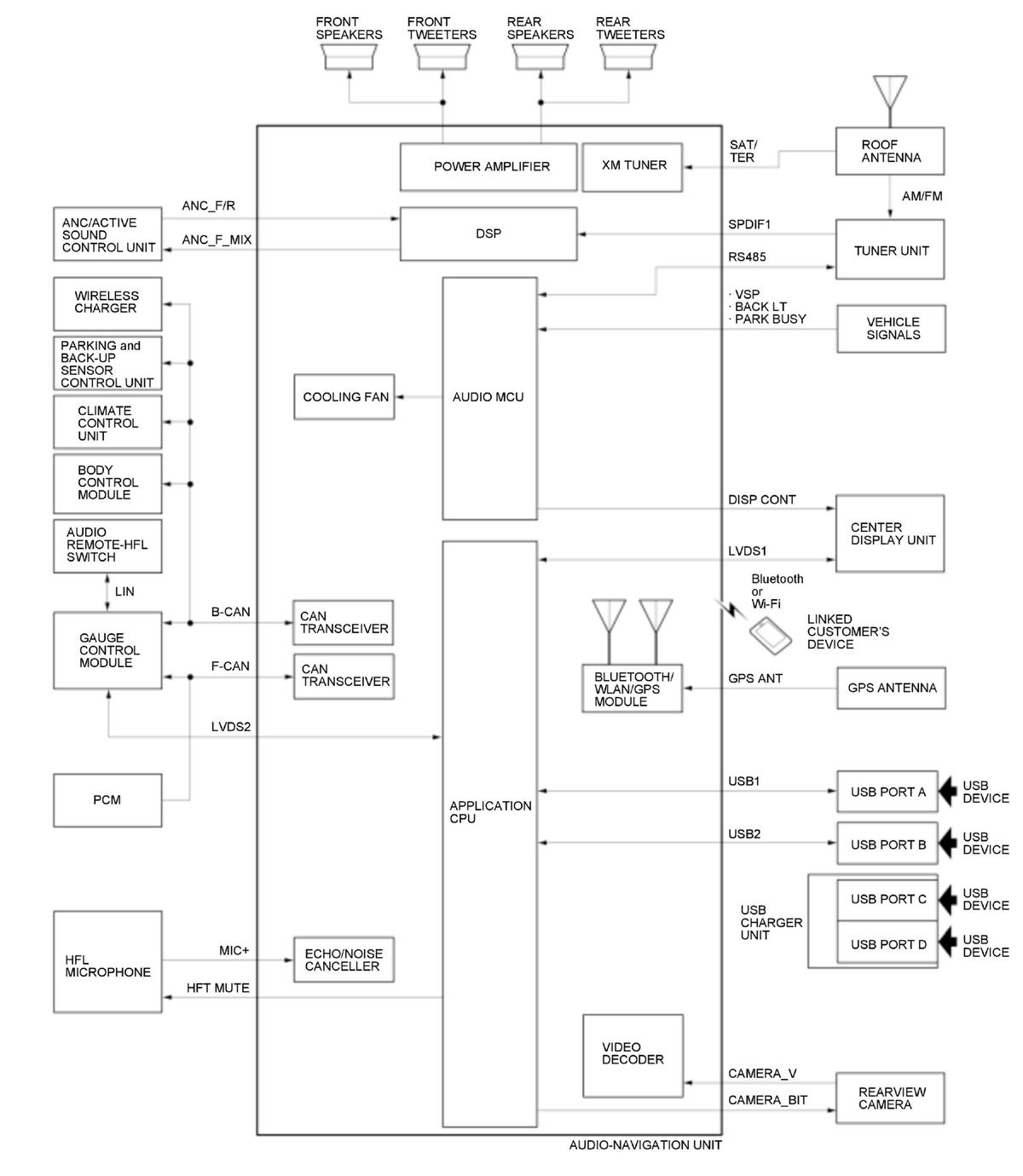

Without Stereo Amplifier

Courtesy of HONDA, U.S.A., INC.

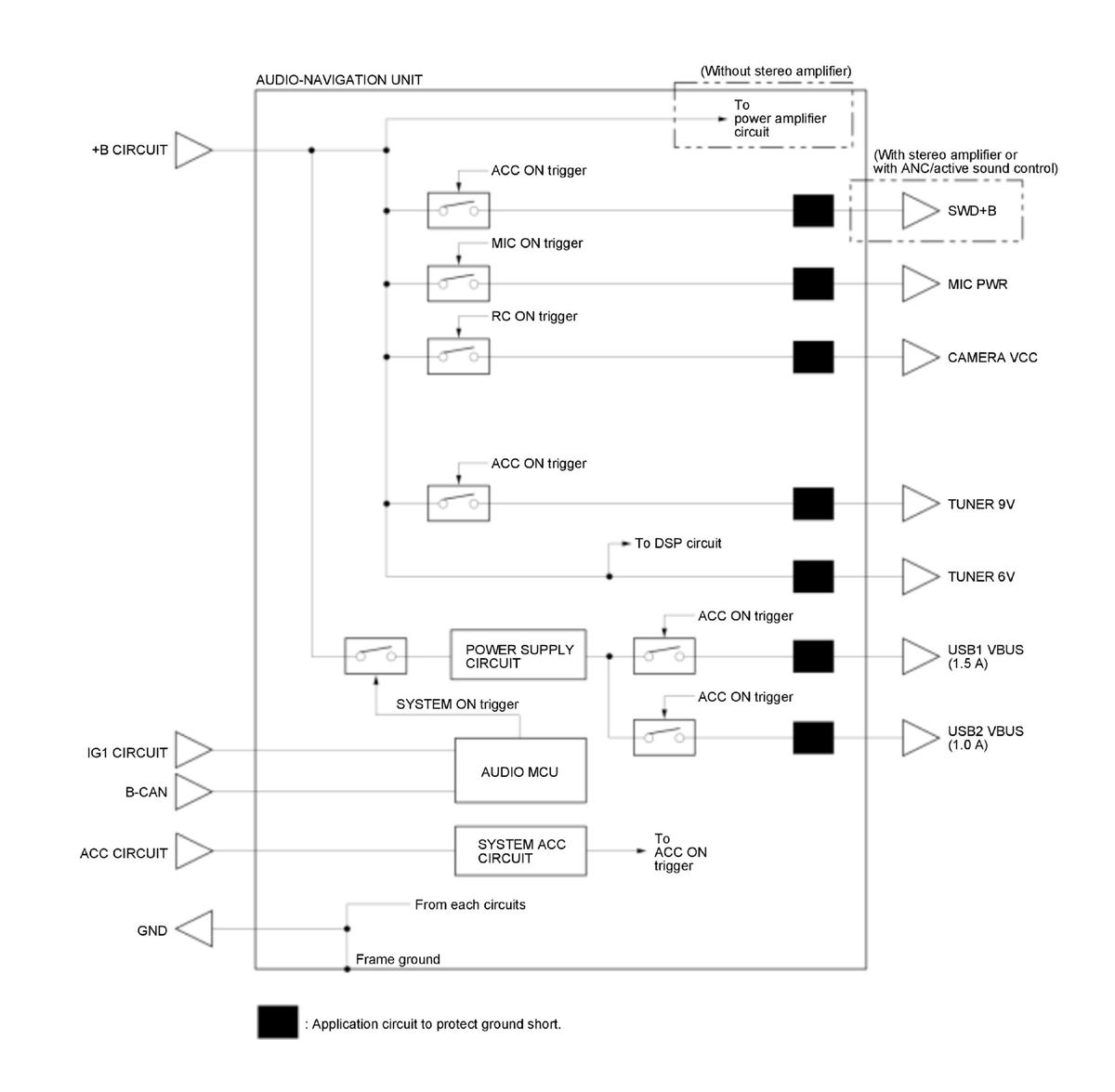

Power Supply Diagram

Courtesy of HONDA, U.S.A., INC.
