Center Display Unit Connector for Inputs and Outputs
WARNING: This page is about a different variant/trim than selected.
| Connector Index |
| Center Display Unit Connector A (5P) |
| Center Display Unit Connector B (3P) |

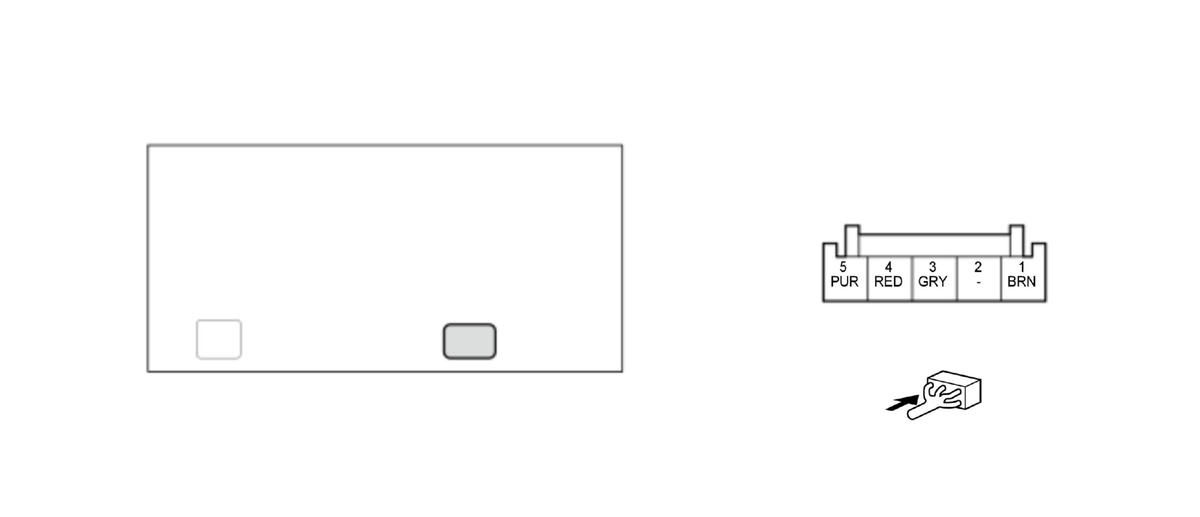

Center Display Unit Connector A (5P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| A1 |
+B_AUDIO |
+B power source |
| A2 |
--- |
Not used |
| A3 |
ILLUMI+ |
Detects illumination on signal |
| A4 |
DISP_CONT |
Inputs signal for center display unit switching ON/OFF |
| A5 |
GND |
Ground for center display unit |

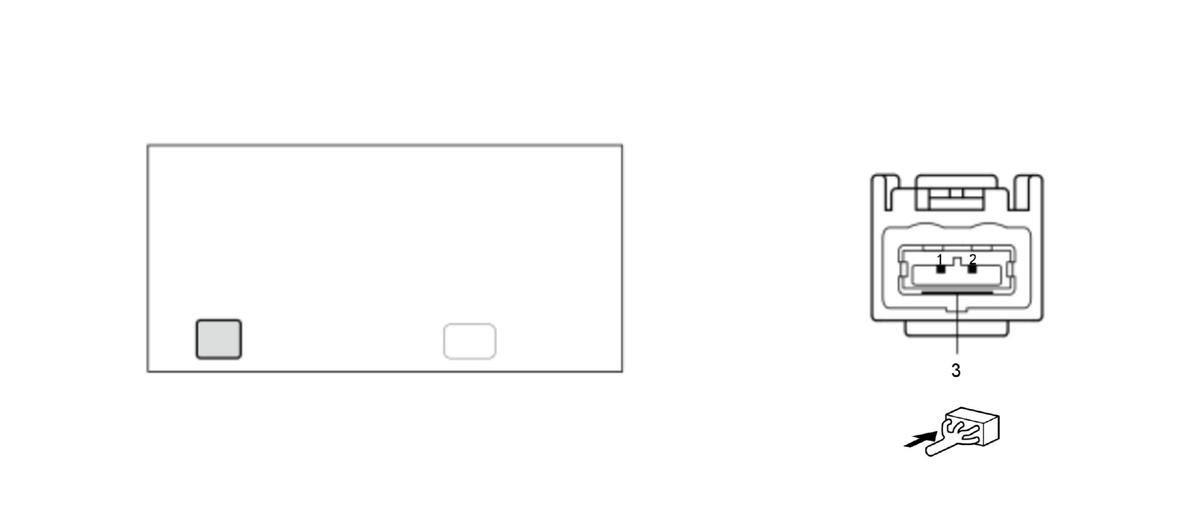

Center Display Unit Connector B (3P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| B1 |
LVDS1+ |
Communication signal |
| Cavity |
Terminal Name |
Description |
| B2 |
LVDS1- |
Communication signal |
| B3 |
LVDS1 SH |
Shield for terminals No. 1 and No. 2 |
