Audio-Navigation Unit Connector for Inputs and Outputs
WARNING: This page is about a different variant/trim than selected.
| Connector Index |
| Audio-Navigation Unit Connector A (24P) |
| Audio-Navigation Unit Connector B (24P) |
| Audio-Navigation Unit Connector C (32P) |
| Audio-Navigation Unit Connector E (16P) |
| Audio-Navigation Unit Connector F (5P) |
| Audio-Navigation Unit Connector G (5P) |
| Audio-Navigation Unit Connector H (3P) |
| Audio-Navigation Unit Connector J (3P) |
| Audio-Navigation Unit Connector K (2P) |
| Audio-Navigation Unit Connector L (2P) |
| Audio-Navigation Unit Connector M (4P) |
| Audio-Navigation Unit Connector N (2P) |

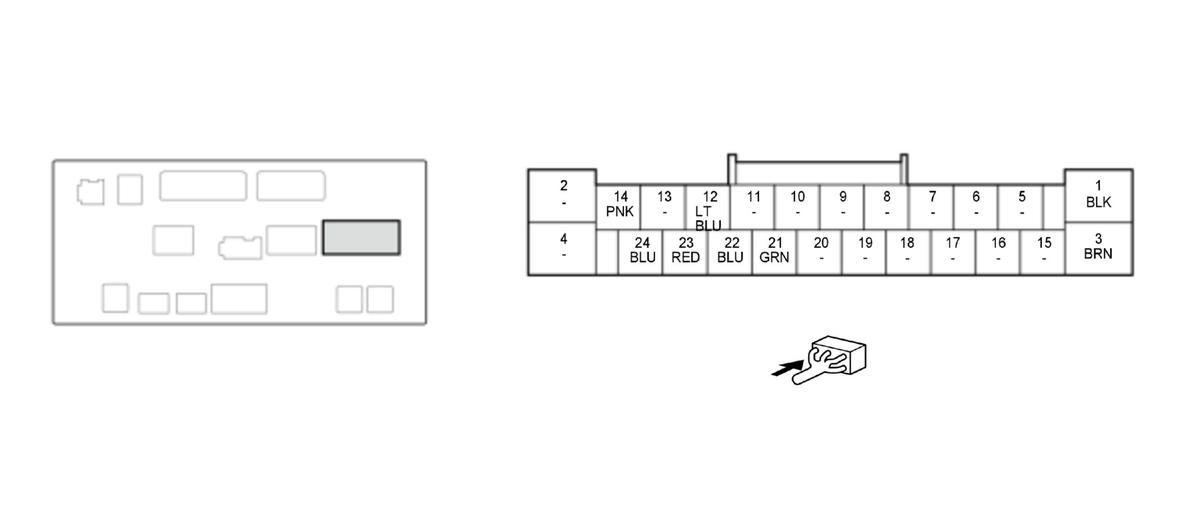

Audio-Navigation Unit Connector A (24P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| A1 |
GND |
Audio-navigation unit ground |
| A2 |
--- |
Not used |
| A3 |
+B_AUDIO |
+B power source |
| A4 |
--- |
Not used |
| A5 |
--- |
Not used |
| A6 |
--- |
Not used |
| A7 |
--- |
Not used |
| A8 |
--- |
Not used |
| A9 |
--- |
Not used |
| A10 |
--- |
Not used |
| A11 |
--- |
Not used |
| A12 |
K-LINE |
Communication signal |
| A13 |
--- |
Not used |
| A14 |
B-CAN_H |
Communication signal |
| A15 |
--- |
Not used |
| A16 |
--- |
Not used |
| Cavity |
Terminal Name |
Description |
| A17 |
--- |
Not used |
| A18 |
--- |
Not used |
| A19 |
--- |
Not used |
| A20 |
--- |
Not used |
| A21 |
SWD+B |
Outputs signal for related unit switching on/off |
| A22 |
VSP |
Inputs vehicle speed pulse |
| A23 |
ACC |
ACCESSORY power source |
| A24 |
B-CAN_L |
Communication signal |

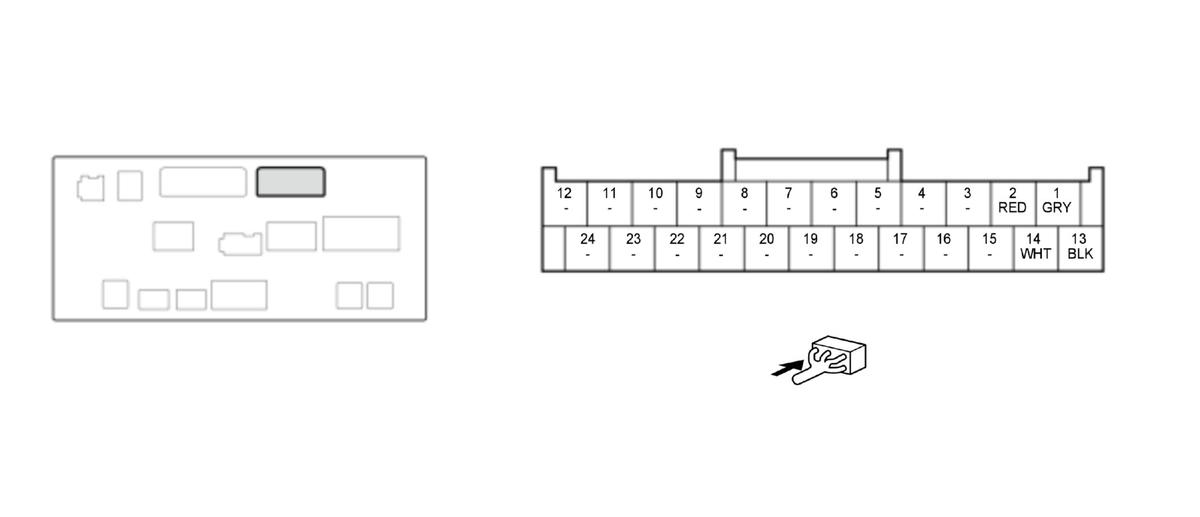

Audio-Navigation Unit Connector B (24P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| B1 |
AUX_NAVI_SH |
Shield for terminals No. 2, No. 13, and No. 14 |
| B2 |
AUX BEEP |
Outputs system beep signal |
| B3 |
--- |
Not used |
| B4 |
--- |
Not used |
| B5 |
--- |
Not used |
| B6 |
--- |
Not used |
| B7 |
--- |
Not used |
| B8 |
--- |
Not used |
| B9 |
--- |
Not used |
| B10 |
--- |
Not used |
| B11 |
--- |
Not used |
| B12 |
--- |
Not used |
| B13 |
AUX NAVI |
Outputs sound signal for voice guidance and Voice Recognition (VR) prompts |
| B14 |
AUX NAVI GND |
Basis ground for terminals No. 2 and No. 13 |
| B15 |
--- |
Not used |
| B16 |
--- |
Not used |
| B17 |
--- |
Not used |
| B18 |
--- |
Not used |
| B19 |
--- |
Not used |
| B20 |
--- |
Not used |
| Cavity |
Terminal Name |
Description |
| B21 |
--- |
Not used |
| B22 |
--- |
Not used |
| B23 |
--- |
Not used |
| B24 |
--- |
Not used |

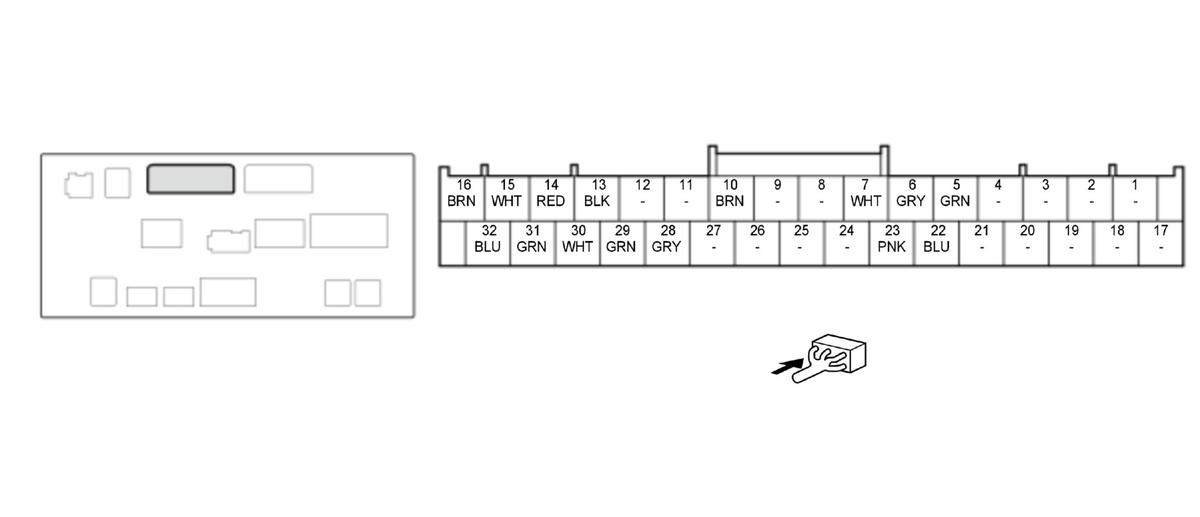

Audio-Navigation Unit Connector C (32P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| C1 |
--- |
Not used |
| C2 |
--- |
Not used |
| C3 |
--- |
Not used |
| C4 |
--- |
Not used |
| C5 |
HFT_MUTE |
Outputs HFL microphone directivity switching signal |
| C6 |
SH_MIC |
Shield for terminals No. 22 and No. 23 |
| C7 |
MIC_PWR |
Power source for HFL microphone |
| C8 |
--- |
Not used |
| C9 |
--- |
Not used |
| C10 |
IG1_METER |
IG1 power source |
| C11 |
--- |
Not used |
| C12 |
--- |
Not used |
| C13 |
CAMERA_VCC |
Power source for rearview camera |
| C14 |
CAMERA_GND |
Ground for rearview camera |
| C15 |
BACK_LT |
Detects reverse signal |
| C16 |
CAMERA_ADPT |
Detects connection for rearview camera |
| C17 |
--- |
Not used |
| C18 |
--- |
Not used |
| C19 |
--- |
Not used |
| C20 |
--- |
Not used |
| C21 |
--- |
Not used |
| C22 |
MIC+ |
Inputs sound signal from HFL microphone |
| C23 |
MIC_GND |
Ground for HFL microphone |
| C24 |
--- |
Not used |
| C25 |
--- |
Not used |
| Cavity |
Terminal Name |
Description |
| C26 |
--- |
Not used |
| C27 |
--- |
Not used |
| C28 |
SH_CAMERA |
Shield for terminals No. 13, No. 14, No. 29, and No. 30 |
| C29 |
CAMERA_V |
Inputs NTSC video signal from rearview camera |
| C30 |
CAMERA_V_GND |
Ground for NTSC video signal from rearview camera |
| C31 |
CAMERA_BIT0 |
Outputs mode select signal for rearview camera |
| C32 |
CAMERA_BIT1 |
Outputs mode select signal for rearview camera |

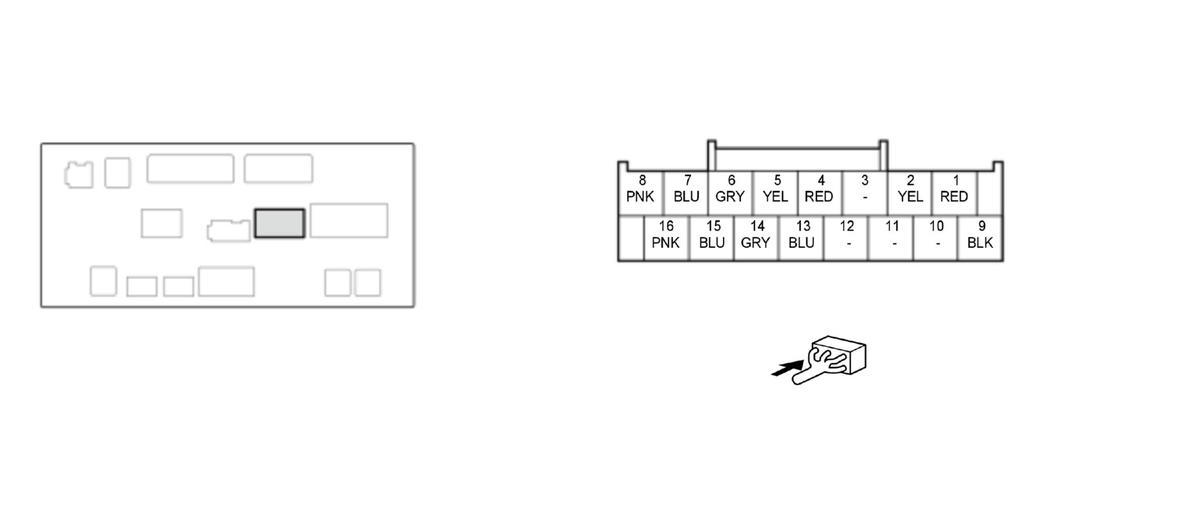

Audio-Navigation Unit Connector E (16P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| E1 |
TUNER_6V |
Power source for tuner unit |
| E2 |
TUNER_9V |
Power source for tuner unit |
| E3 |
--- |
Not used |
| E4 |
DISP_CONT |
Outputs signal for center display unit switching on/off |
| E5 |
F-CAN B_H |
Communication signal |
| E6 |
AMP_RS485_SH |
Shield for terminals No. 7 and No. 8 |
| E7 |
RS485+ |
Communication signal |
| E8 |
RS485- |
Communication signal |
| E9 |
TUNER_GND |
Ground for tuner unit |
| E10 |
--- |
Not used |
| E11 |
--- |
Not used |
| E12 |
--- |
Not used |
| E13 |
F-CAN B_L |
Communication signal |
| E14 |
TUNER_RS485_SH |
Shield for terminals No. 15 and No. 16 |
| E15 |
TUNER_RS485+ |
Communication signal |
| E16 |
TUNER_RS485- |
Communication signal |

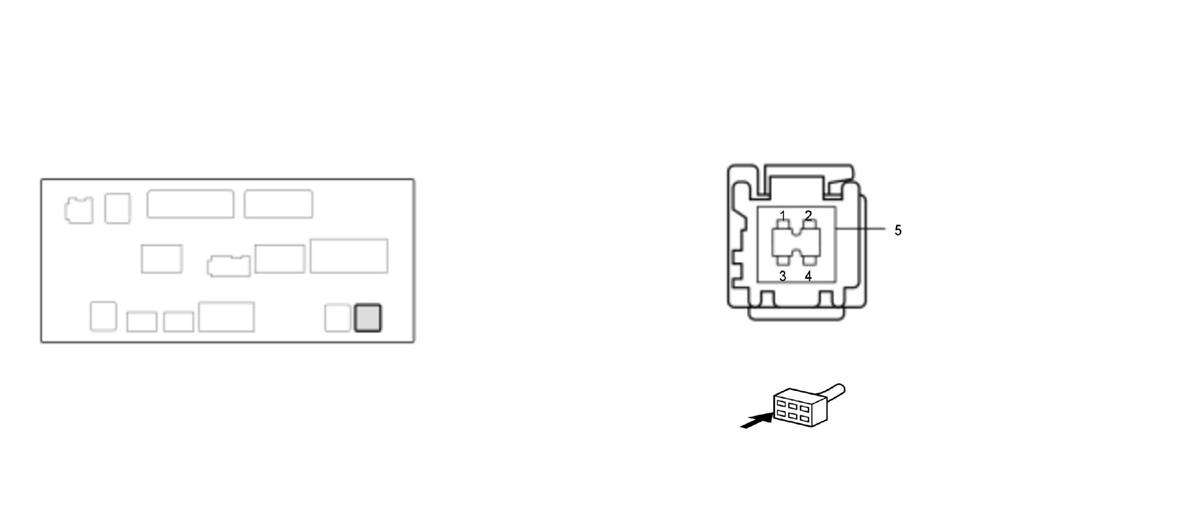

Audio-Navigation Unit Connector F (5P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| F1 |
USB1 GND |
Ground for USB port A |
| F2 |
USB1 VBUS |
Outputs power source for USB port A |
| F3 |
USB1 DATA+ |
Communication signal |
| F4 |
USB1 DATA- |
Communication signal |
| F5 |
USB1 SH |
Shield for terminals No. 1, No. 2, No. 3, and No. 4 |
Audio-Navigation Unit Connector G (5P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| G1 |
USB2 GND |
Ground for USB port B |
| G2 |
USB2 VBUS |
Outputs power source for USB port B |
| G3 |
USB2 DATA+ |
Communication signal |
| G4 |
USB2 DATA- |
Communication signal |
| G5 |
USB2 SH |
Shield for terminals No. 1, No. 2, No. 3, and No. 4 |

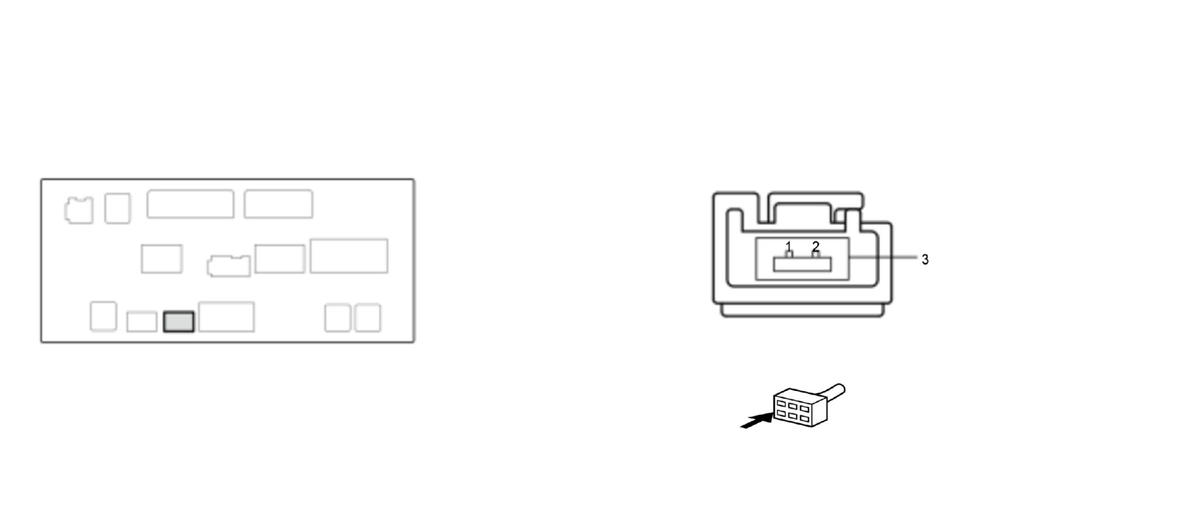

Audio-Navigation Unit Connector H (3P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| H1 |
LVDS1+ |
Communication signal |
| H2 |
LVDS1- |
Communication signal |
| H3 |
LVDS1 SH |
Shield for terminals No. 1 and No. 2 |

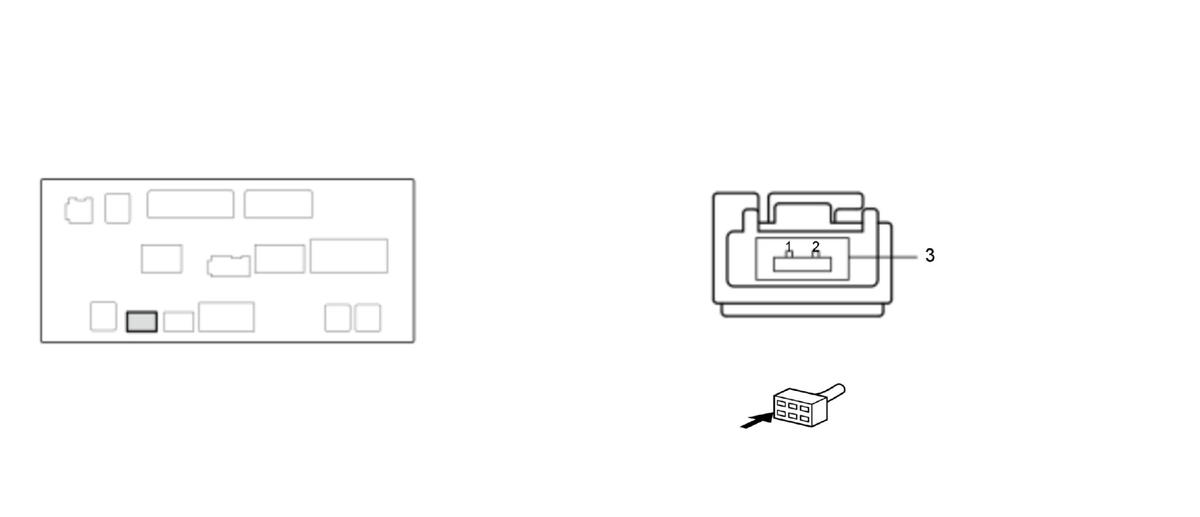

Audio-Navigation Unit Connector J (3P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| J1 |
LVDS2+ |
Communication signal |
| J2 |
LVDS2- |
Communication signal |
| J3 |
LVDS2 SH |
Shield for terminals No. 1 and No. 2 |

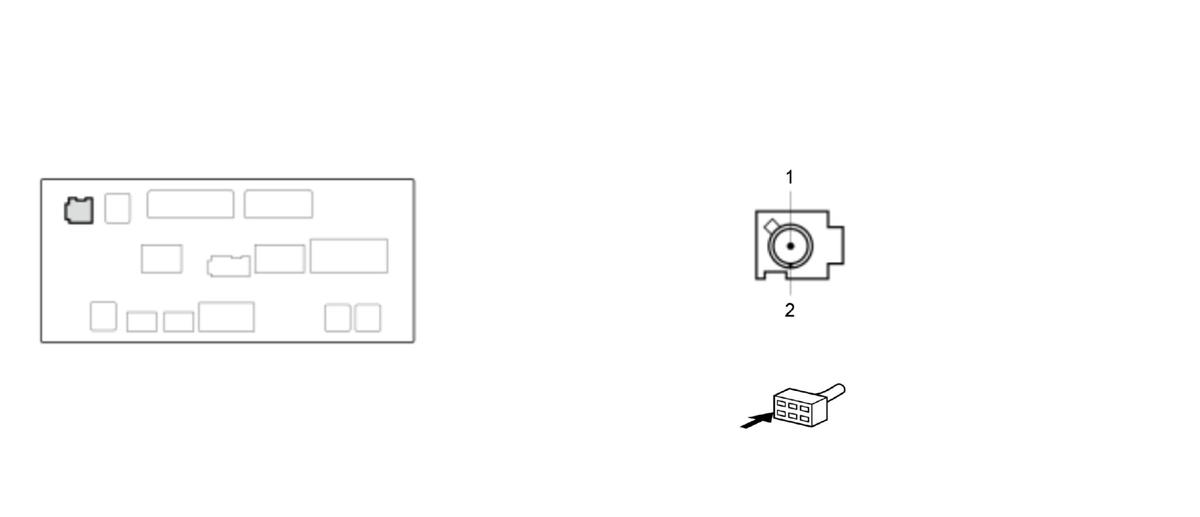

Audio-Navigation Unit Connector K (2P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| K1 |
GPS ANT |
Inputs GPS signal |
| K2 |
GPS SH |
Shield for terminal No. 1 |

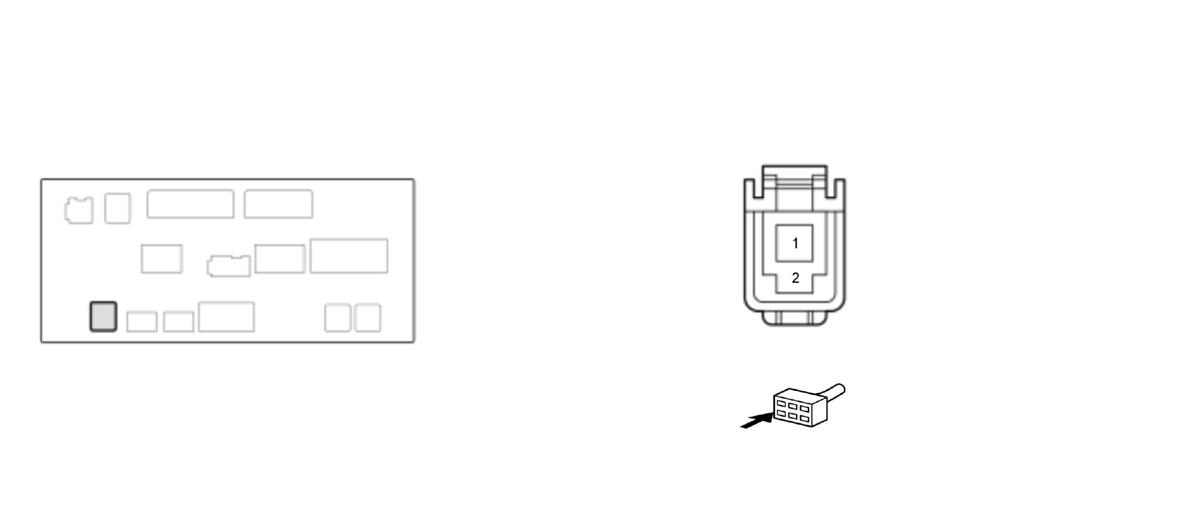

Audio-Navigation Unit Connector L (2P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| L1 |
SPDIF1 SIG |
Communication signal for tuner unit |
| L2 |
SPDIF1 SH |
Shield for terminal No. 1 |

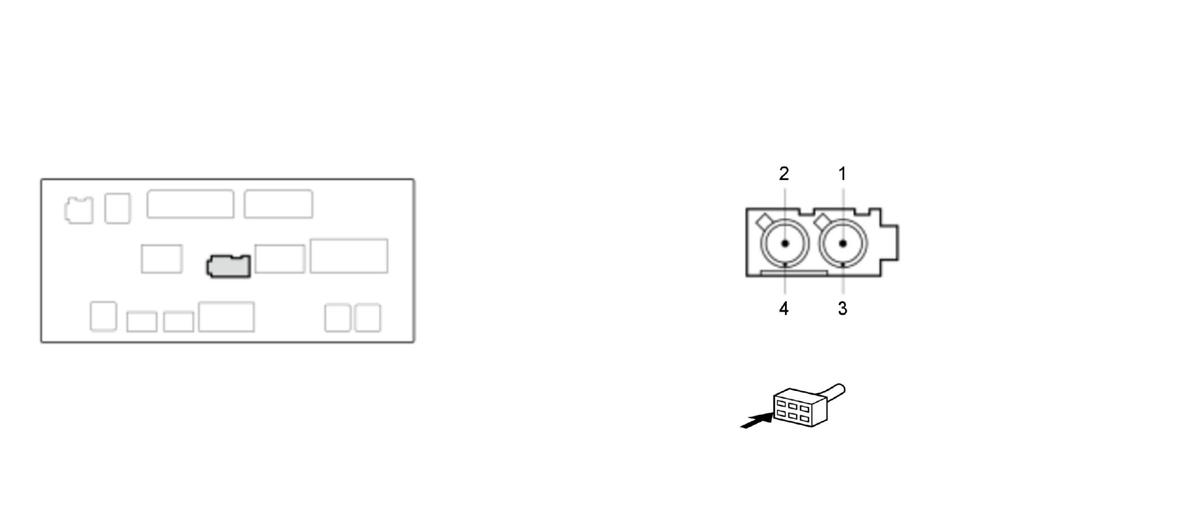

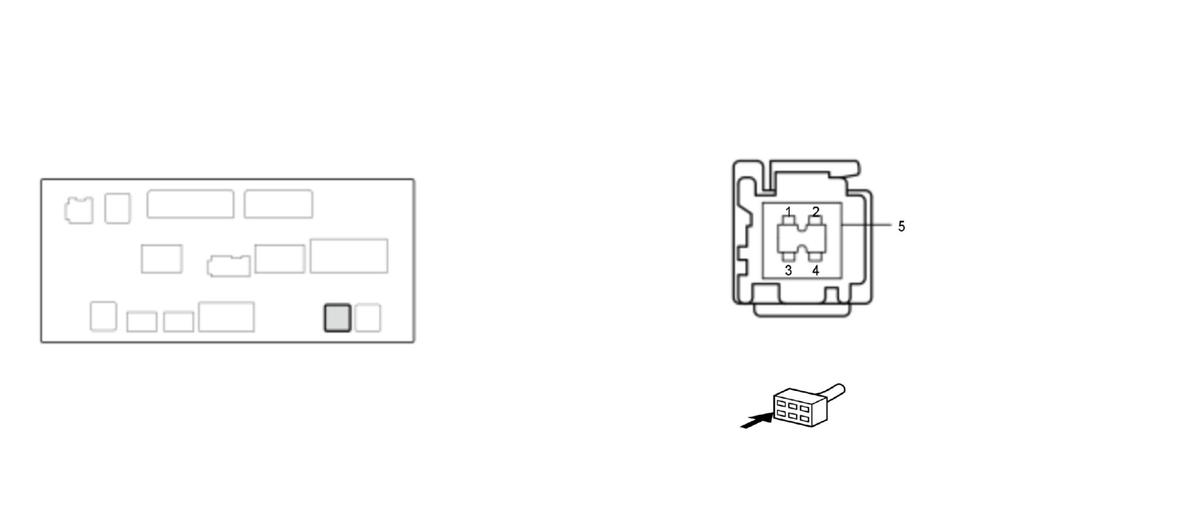

Audio-Navigation Unit Connector M (4P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| M1 |
SPDIF2 SIG |
Communication signal |
| M2 |
--- |
Not used |
| M3 |
SPDIF2 SH |
Shield for terminal No. 1 |
| M4 |
--- |
Not used |

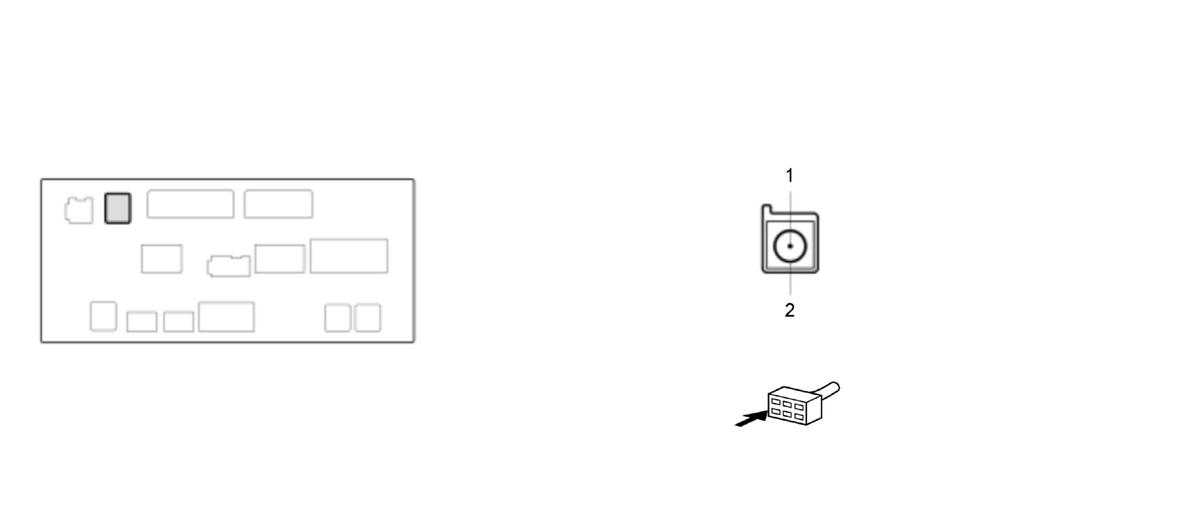

Audio-Navigation Unit Connector N (2P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| N1 |
SAT/TER |
Inputs satellite/terrestrial signal |
| N2 |
SH (SAT/TER) |
Shield for terminal No. 1 |
