Audio Remote-HFL Switch Connector for Inputs and Outputs
WARNING: This page is about a different variant/trim than selected.

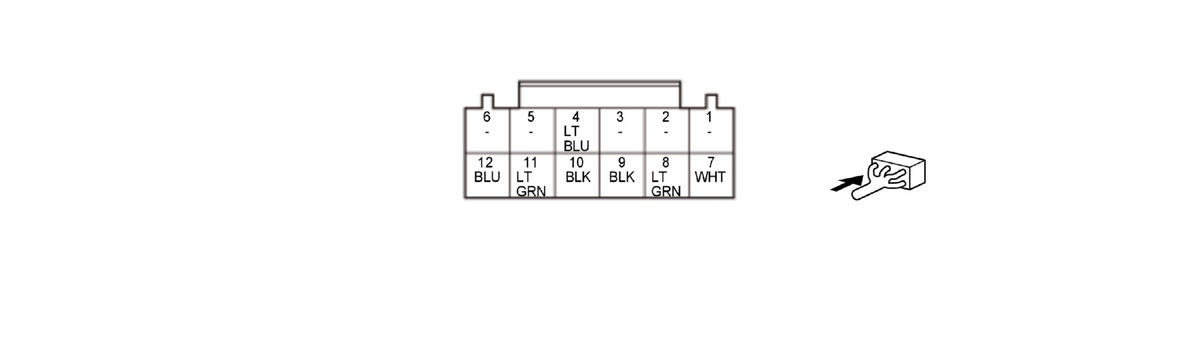

Audio Remote-HFL Switch 12P Connector (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | --- | Not used |
| 2 | --- | Not used |
| 3 | --- | Not used |
| 4 | ILL-(LED) | Outputs illumination control signal for related units |
| 5 | --- | Not used |
| 6 | --- | Not used |
| 7 | +B | +B power source |
| 8 | ILLUMI+ | Outputs illumination signal |
| 9* | STRG_GND | Ground for related units |
| 10 | STRG_GND | Audio remote-HFL switch ground |
| 11* | HSW_LIN | Communication signal |
| 12 | STRG_SW_LIN | Communication signal |
*: With heated steering wheel
