ANC/Active Sound Control Unit Connector for Inputs and Outputs
WARNING: This page is about a different variant/trim than selected.

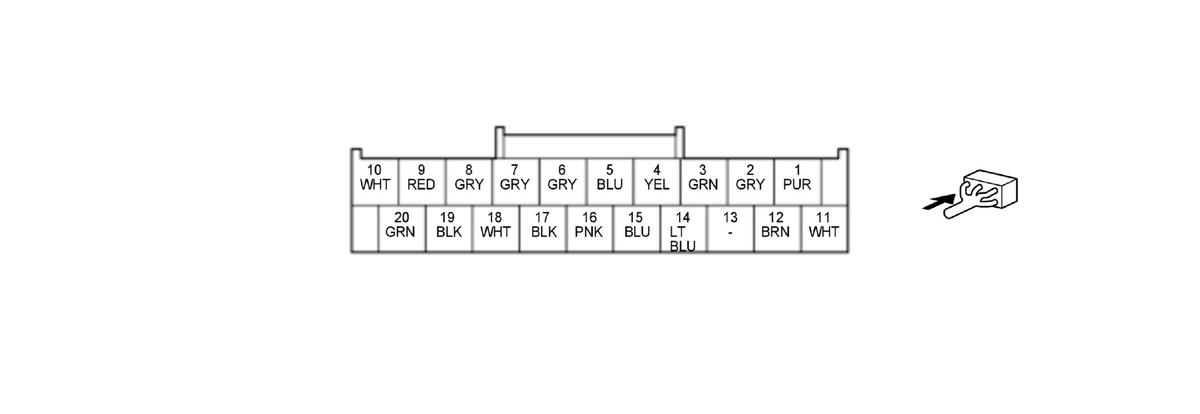

ANC/Active Sound Control Unit 20P Connector (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | GND | ANC/active sound control unit ground |
| 2 | AUD_F_MIX_SH | Shield for terminals No. 15 and No. 16 |
| 3 | SWD+B | Inputs signal for ANC/active sound control unit switching ON/OFF |
| 4 | F-CAN B_H | Communication signal |
| 5 | F-CAN B_L | Communication signal |
| 6 | SH_ANC_R_MIC | Shield for terminal No. 17 |
| 7 | SH_ANC_F_MIC | Shield for terminal No. 18 |
| 8 | ANC_SH | Shield for terminals No. 9, No. 10, No. 19, and No. 20 |
| 9 | ANC_R- | Outputs noise cancelling signal to related units |
| 10 | ANC_F- | Outputs noise cancelling signal to related units |
| 11 | +B_BACK_UP | +B power source |
| 12 | IG1_METER | IG1 power source |
| 13 | --- | Not used |
| 14 | K-LINE | Communication signal |
| 15 | AUD_F_MIX_GND | Basis ground for terminals No. 16 |
| 16 | AUD_F_MIX | Outputs noise cancelling mixing signal from related units |
| 17 | ANC_R_MIC+8V | Inputs signal for rear ANC/active sound control microphone |
| 18 | ANC_F_MIC+8V | Inputs signal for front ANC/active sound control microphone |
| 19 | ANC_R+ | Outputs noise cancelling signal to related units |
| 20 | ANC_F+ | Outputs noise cancelling signal to related units |
