Speaker Removal, Installation, and Test: Test

WARNING: This page is about a different variant/trim than selected.

Door Speaker, Rear Speaker

Door Speaker, Rear Speaker - Test

Courtesy of HONDA, U.S.A., INC.

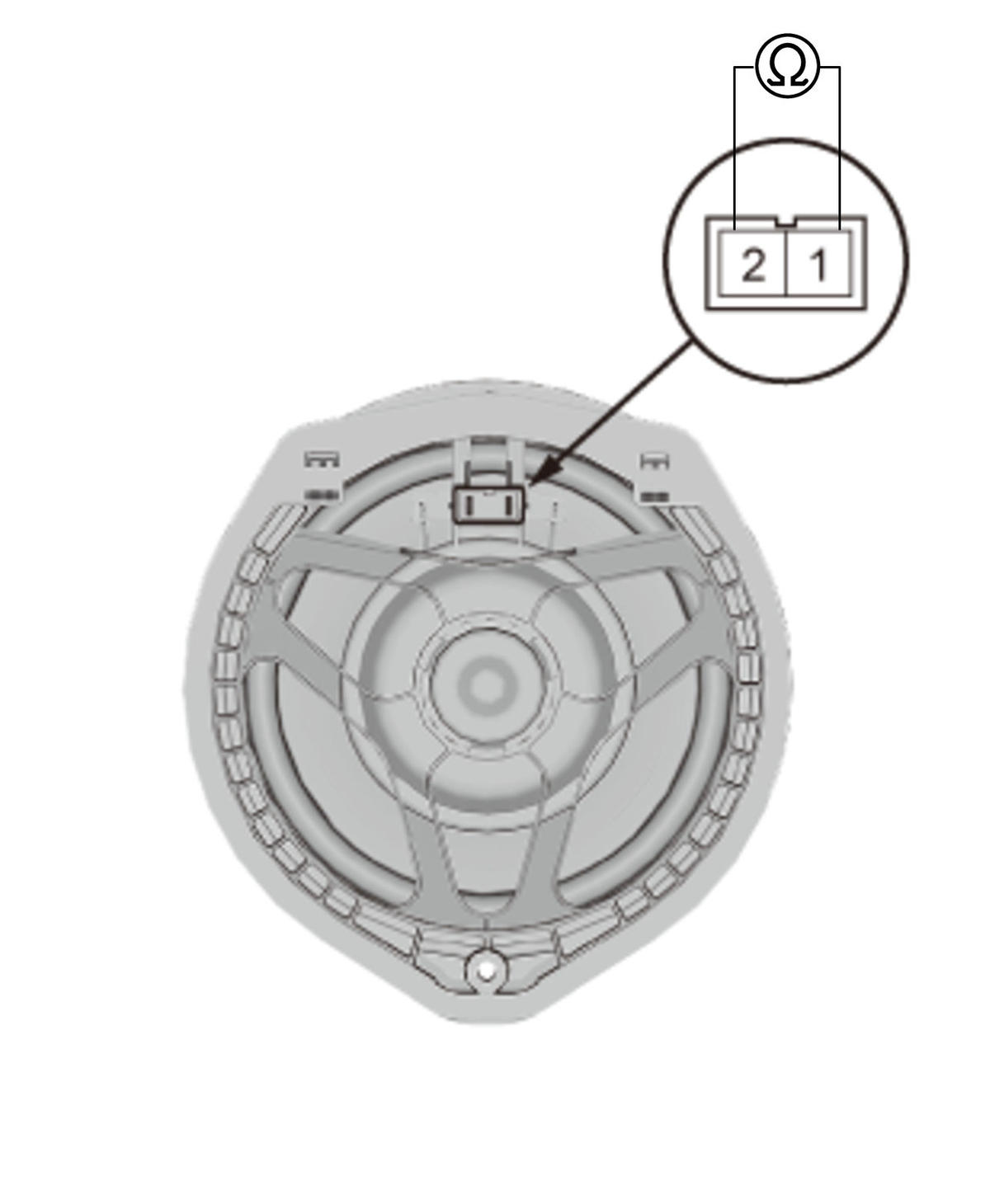

1. Measure the resistance between terminals No. 1 and No. 2. There should be about 4 Ω.

2. If the resistance is not as specified, replace the door speaker.

Tweeter

Tweeter - Test

Courtesy of HONDA, U.S.A., INC.

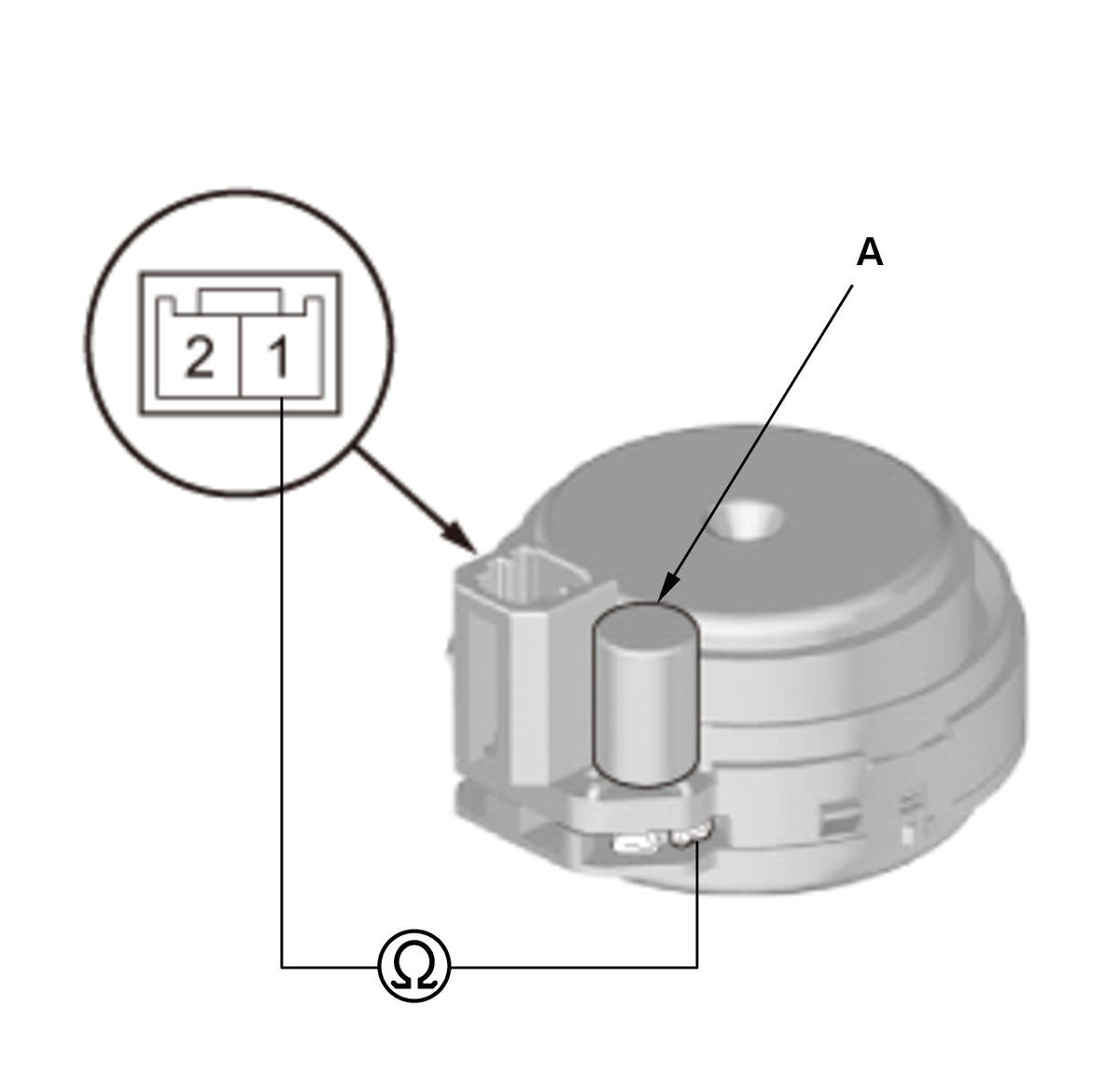

1. Measure the resistance between terminal No. 1 and the outside terminal of the capacitor (A). There should be about 4 Ω. Also visually check the capacitor for damage.

2. If the resistance is not as specified, replace the tweeter.

Subwoofer

Subwoofer - Test

Courtesy of HONDA, U.S.A., INC.

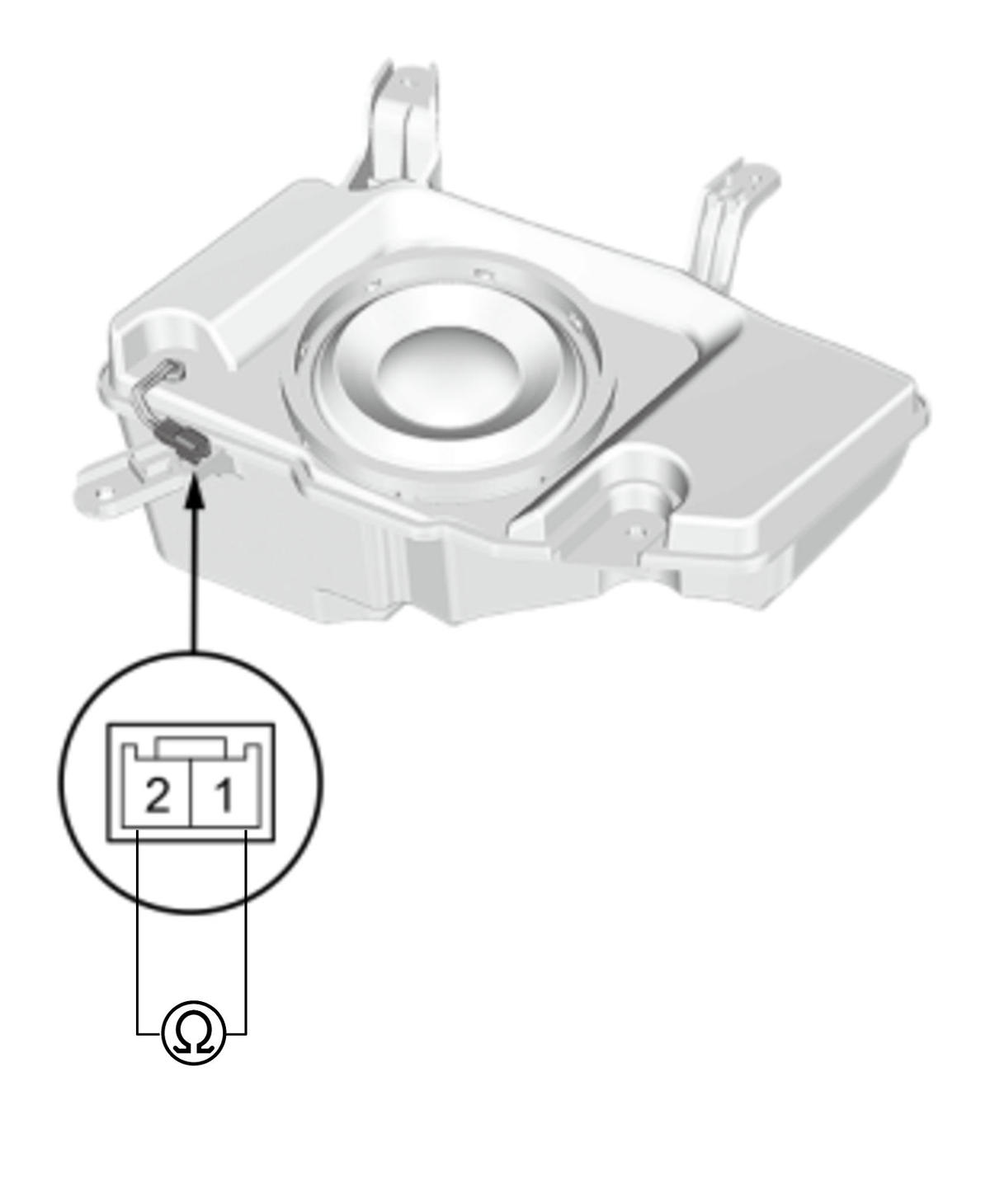

1. Measure the resistance between the terminals No. 1 and No. 2. There should be about 2 Ω.

2. If the resistance is not as specified, replace the subwoofer.
