Removal and Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: How to read the torque specifications .

Door Speaker

  1. Door Panel - Remove
  2. Door Speaker - Remove

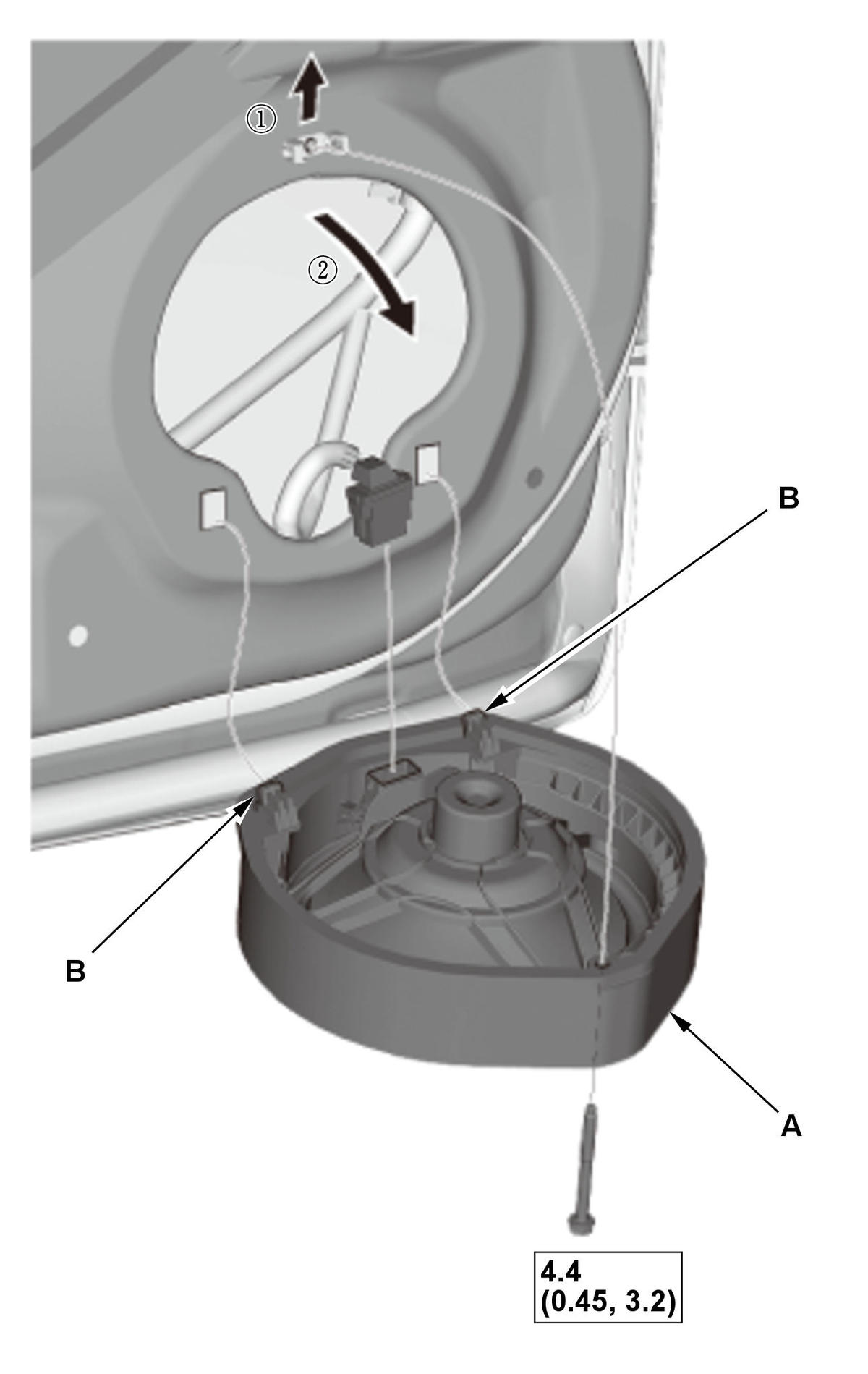

    GHH374709Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the bolt, then lift the door speaker (A) straight up to release the lower clips (B).

    2. Disconnect the connector.
  3. All Removed Parts - Install

    Install the parts in the reverse order of removal.

Front Tweeter

  1. Mirror Trim - Remove
  2. Front Tweeter - Remove

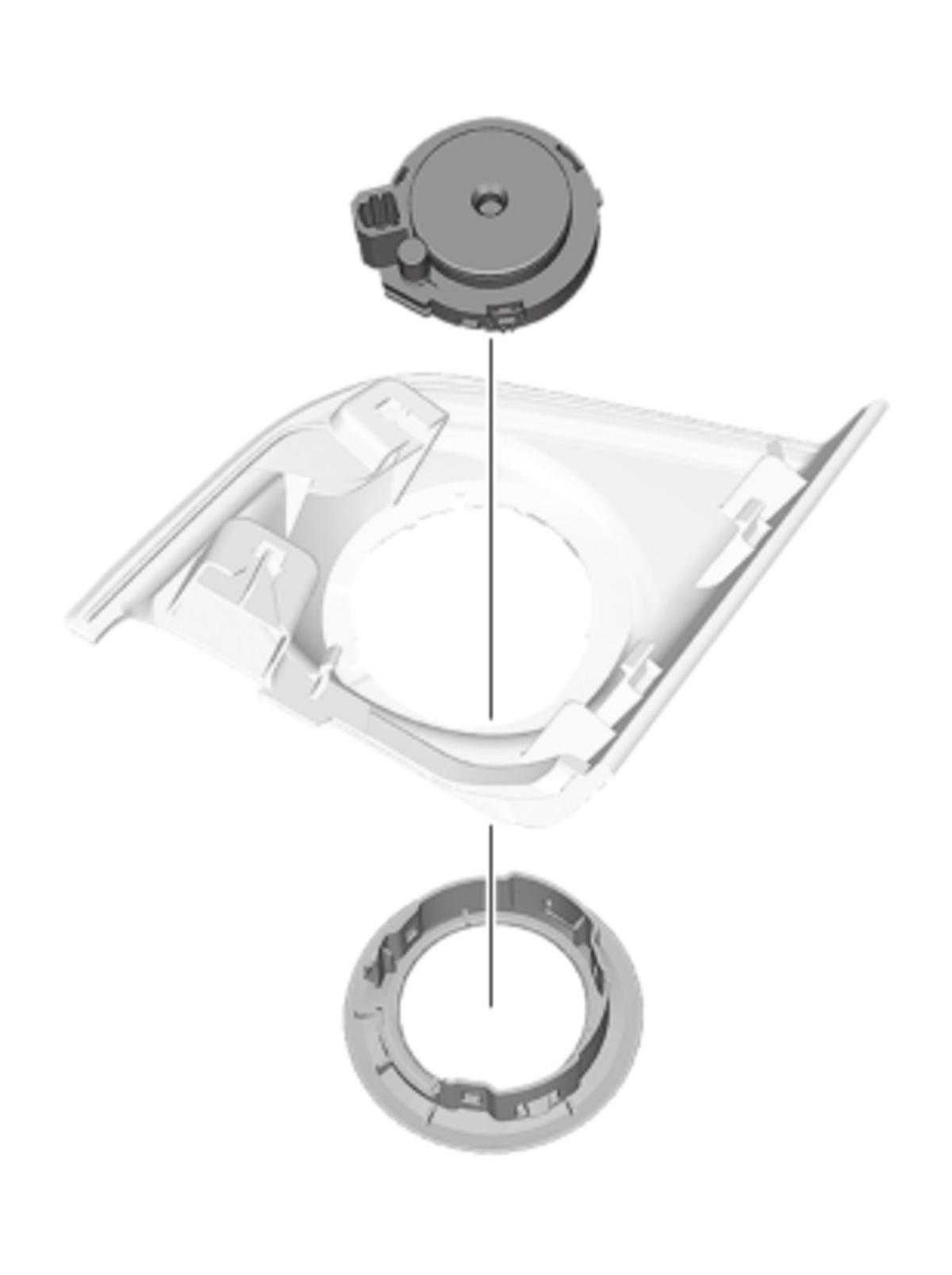

    GHH374710Courtesy of HONDA, U.S.A., INC.
  3. All Removed Parts - Install

    Install the parts in the reverse order of removal.

Rear Tweeter

  1. Rear Door Panel - Remove
  2. Rear Tweeter - Remove

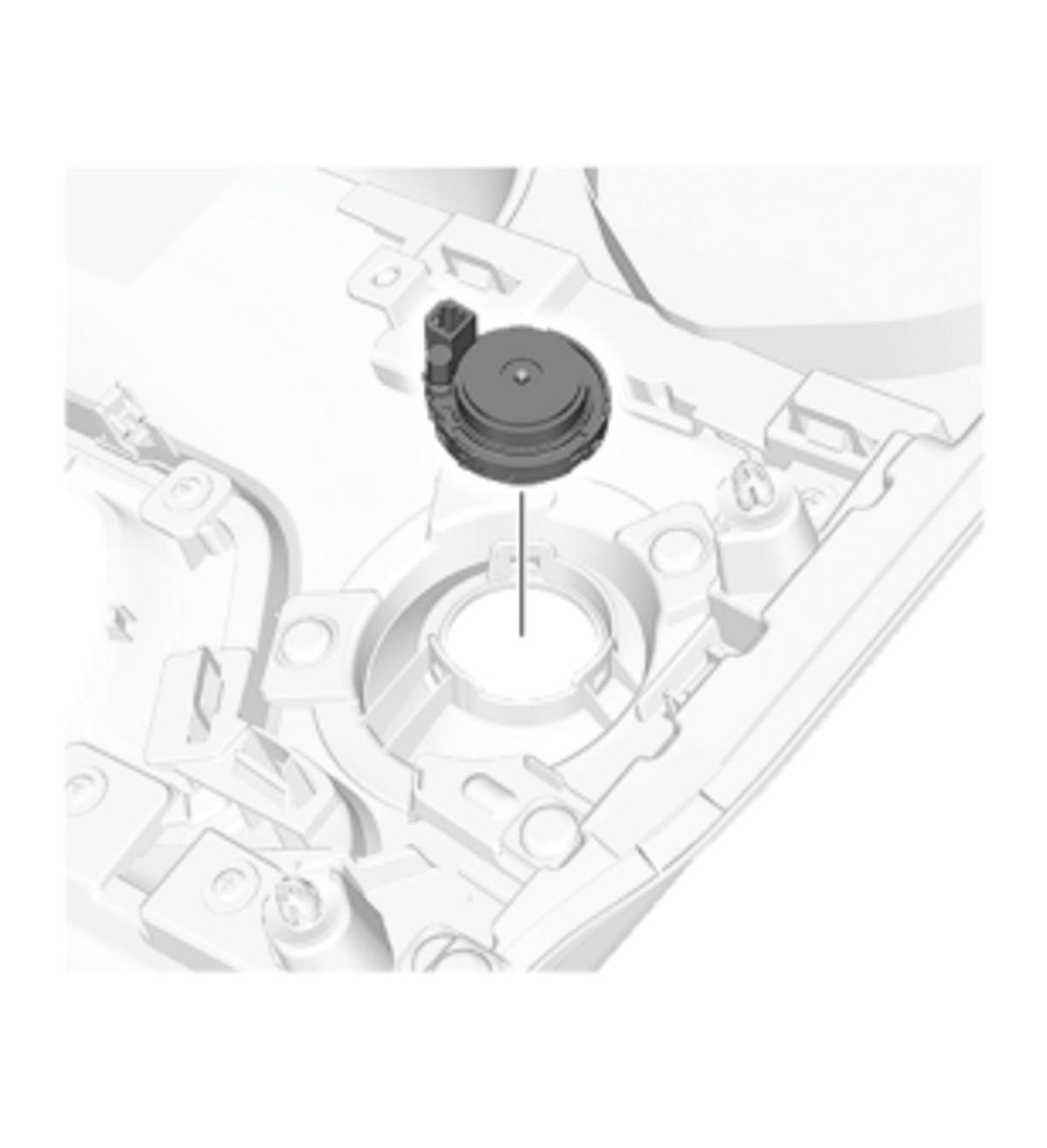

    GHH374711Courtesy of HONDA, U.S.A., INC.
  3. All Removed Parts - Install

    Install the parts in the reverse order of removal.

Subwoofer

  1. Rear Side Trim Panel (Right Side) - Remove
  2. Subwoofer - Remove

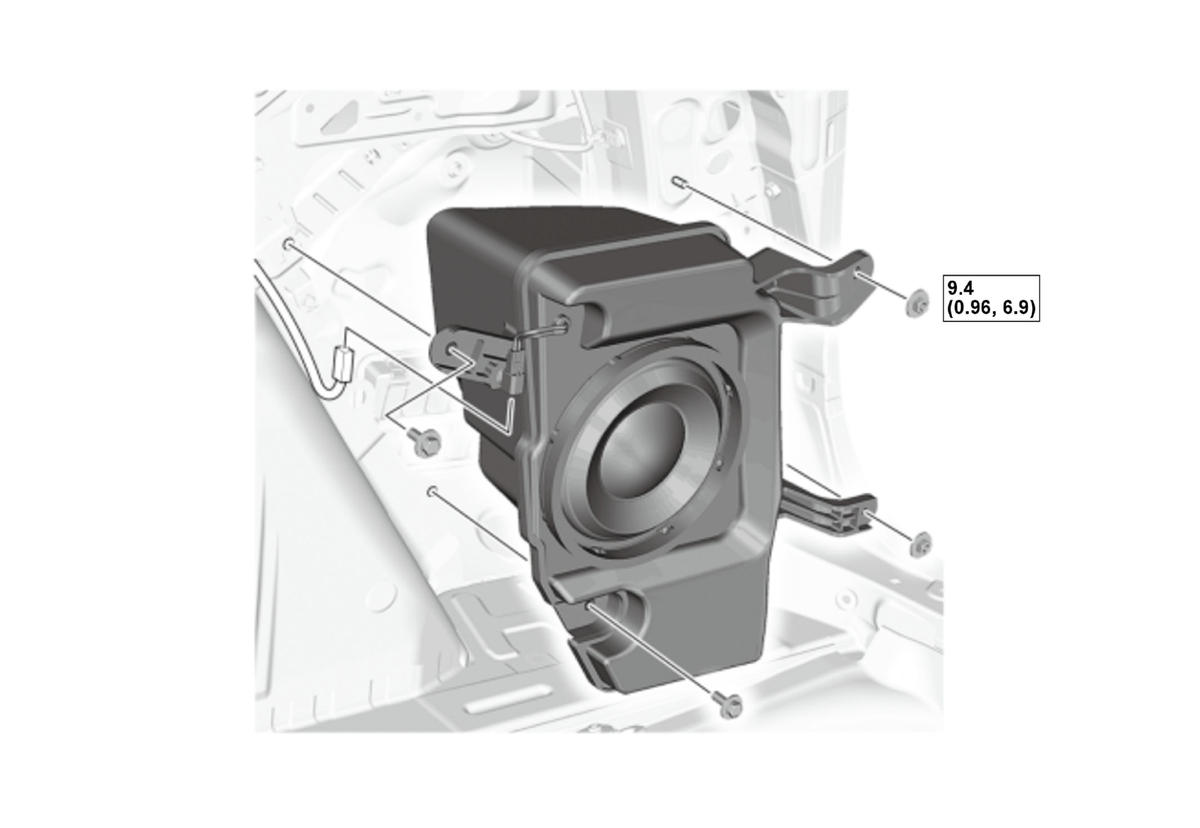

    GHH374712Courtesy of HONDA, U.S.A., INC.
  3. All Removed Parts - Install

    Install the parts in the reverse order of removal.
